Items Supplied

• 1 x spotlight
• 1 x ground spike
• 1 x base plate
• 1 x locking screw with nut
• 1 x mains adapter
• 1 x remote control incl. button cell (CR2025 type)
• Operating instructions

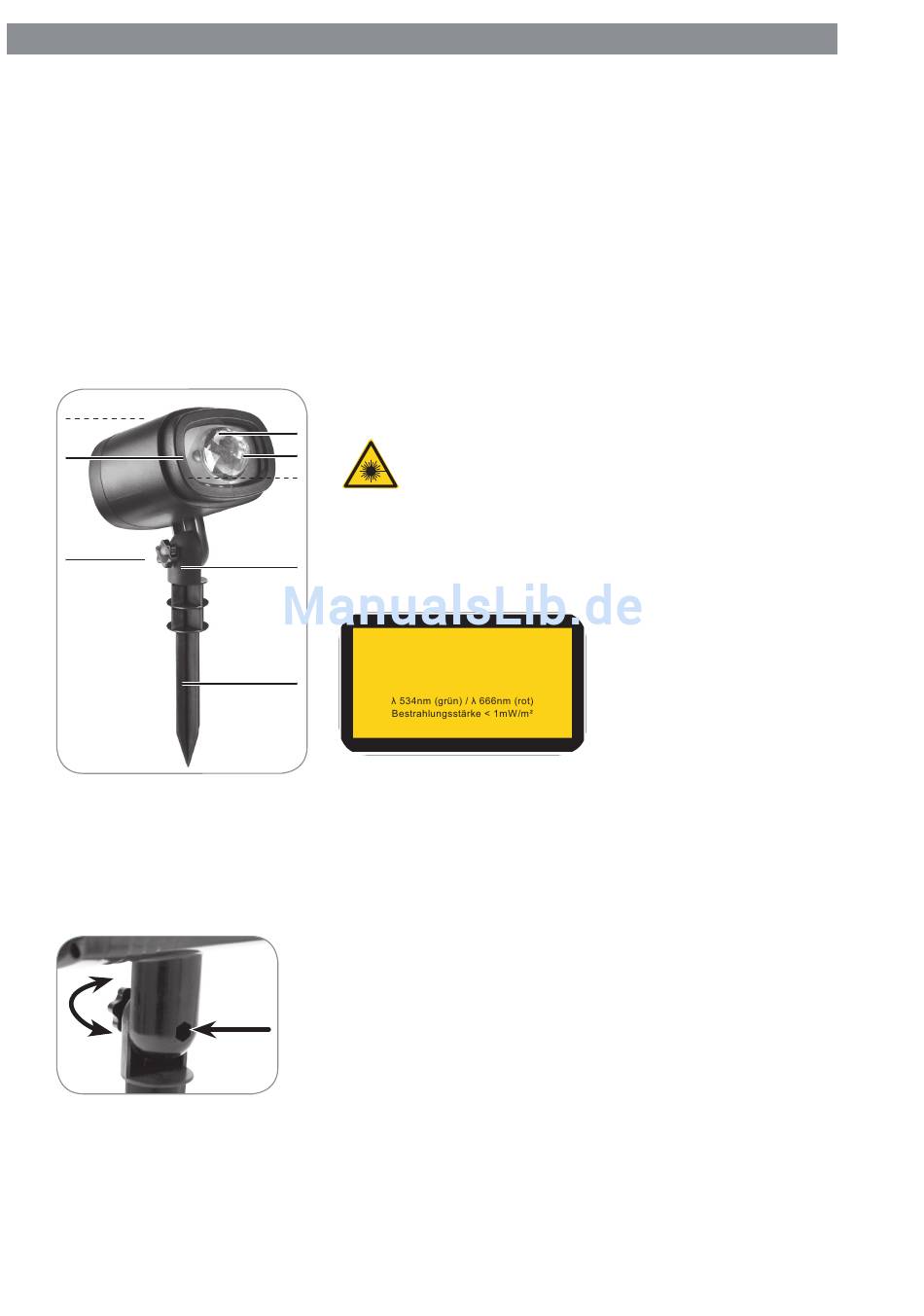

Article Overview

8
7
6

Putting into Operation / Use

1. Unpack the items supplied and remove any possible protective fi lms or stickers.
Check all parts for possible transport damage. If there is any transport damage, do
not use the article(!), but contact the customer service department immediately.
3. Set up the spotlight a distance of no more than 10 metres from the wall onto which
the laser beam is to be projected. Either anchor the ground spike (4) in the ground or
attach the base plate to a suitable place (fi xing materials are not supplied).
4. Align the spotlight on the object which is to be illuminated. To do this, loosen the lock-
ing screw (5) and tighten it again after alignment.
12
1 Light
2 Infrared receiver
1
2
3 Laser radiation warning sign
3
4 Ground spike holder
5 Ground spike
4
6 Locking screw
7 Green and red laser light source
8
Laserstrahlung
Nicht direkt in den Strahl blicken
Laser Klasse 2
5
Leistung P = 401μW / 330μW
Wellenlänge(n)
IEC 60825-1:2014
2. Fit the ground spike (4) or the base plate onto the spotlight:
Insert the nut which is also supplied into the hexagonal
hole in the ground spike holder (3). Apply the counterpiece
of the ground spike (4) or base plate onto the ground spike
holder (3) and secure it in place with the locking screw (5).
Laser radiation
Do not look directly into the beam
Laser class 2
Power P = 401 μW / 330 μW
Wavelength(s)
λ 534 nm (green) / λ 666 nm (red)
Irradiance < 1mW / m²
IEC 60825-1:2014
