Propane bottle

4mm Schlauchverbinder
4mm Messingrohr eingelötet 4mm Messingrohr eingelötet 4mm Messingrohr eingelötet 4mm Messingrohr eingelötet 4mm Messingrohr eingelötet 4mm Messingrohr eingelötet 4mm Messingrohr eingelötet
Bunsenbrenner (Lötbrenner)
Aufsatz modifiziert
--
Kupplungsstecker
Kupplungsdose Gastank
4 mm Schlauchverbinder
4 mm Messingrohr eingeloetet
Bunsenbrenner ...
Gasfuellflasche ...
--

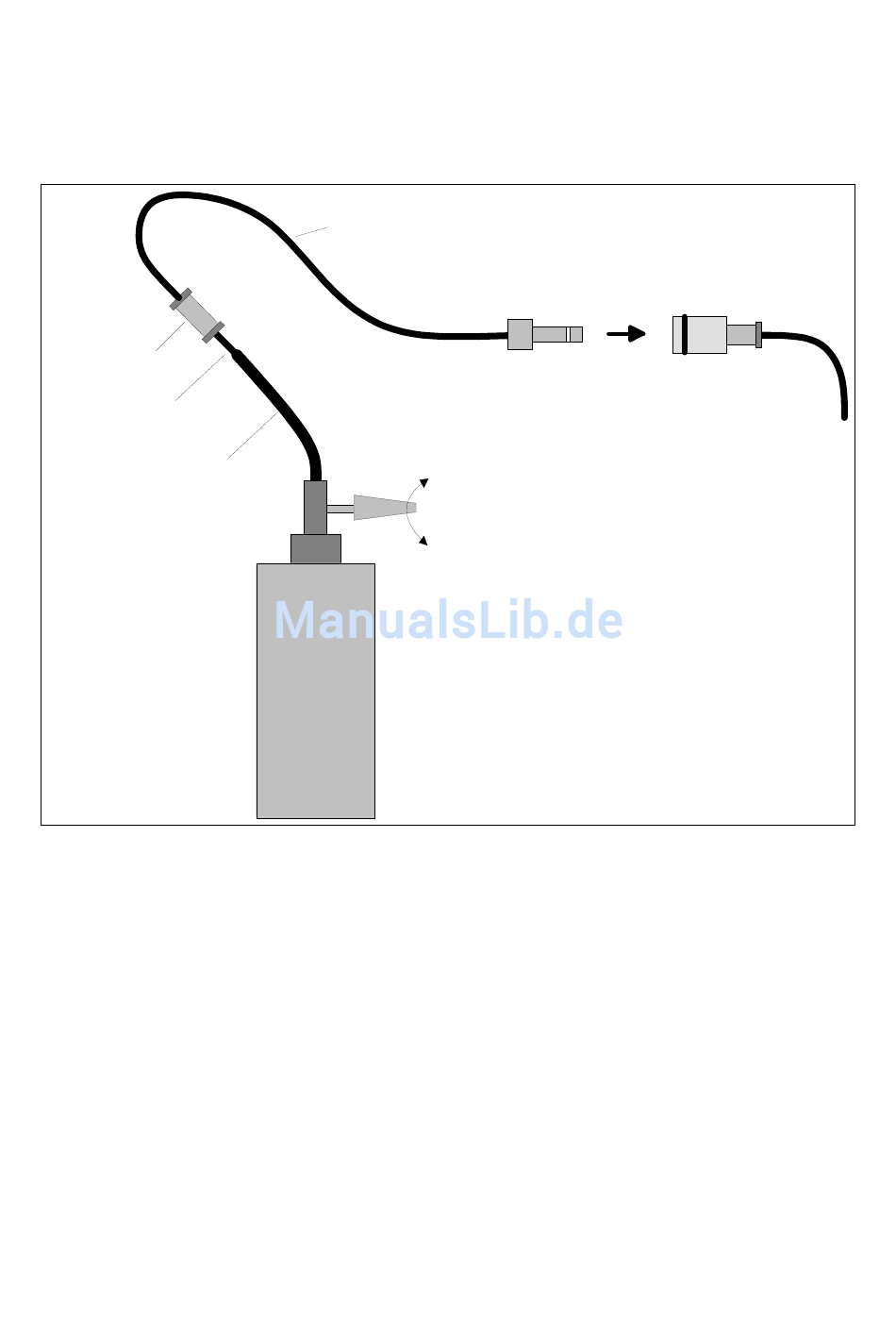

Filling the propane tank

To fill the propane tank a gas solder torch or similar is connected to it instead of the male connector which is
connected to the propane valve.
The tank can then be filled as follows:
1. Insert the male filler connector on the propane bottle into the self-sealing female connector.
2. Invert the propane bottle.
4mm tubing
4mm Schlauch
Gasfüllflasche
(Propan/Butan
Gemisch )
Filler connector, male
Propane tank filler connector, female
4 mm hose connector
4 mm brass tube soldered in
Solder torch, modified connection
Gas bottle (propane/butane mixture)
13
Kupplungsdose Gastank
Kupplungsstecker
