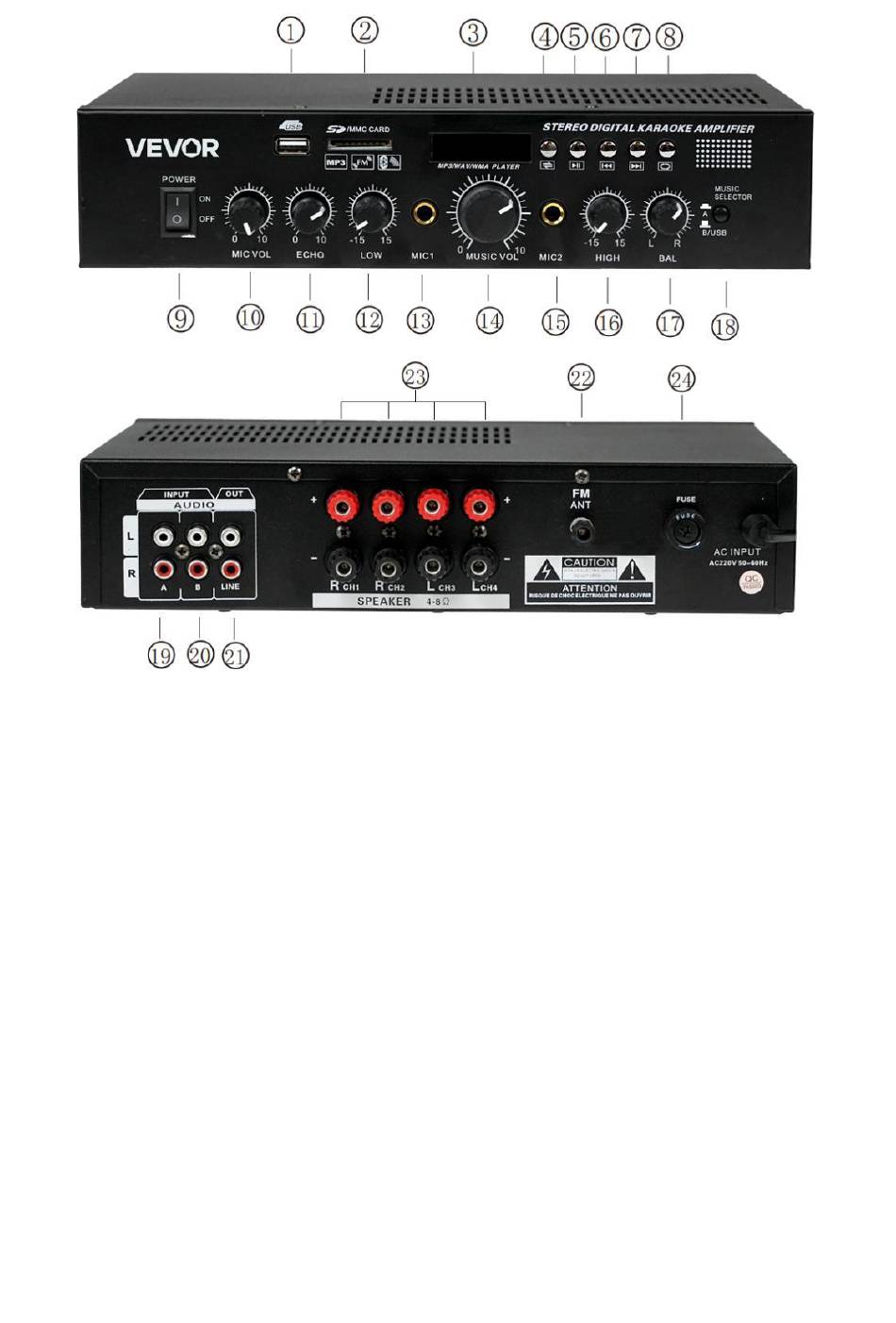

MODEL: ST-80
1.USB Interface
2.SD card slot
3.Play Status Display
4.Mode Switch
5.Play / Pause
6.Previous Track
7.Next Track
8.Repeat One / Repeat All
9.Power Switch
10.Microphone Volume Control Knob
11.Echo: Microphone Echo Adjustment
12.Low: Adjust the Bass Portion Of The
Microphone
13.Microphone 1 Input
14.Master Music Volume Control Knob
15.Microphone 2 Input
16.High: Adjusts the treble portion of the
microphone
17. Musical Balance
18.Music A/B Input Selector
19.Music A Input
20.Music B Input
21.Audio Output Interface
22.Radio Antenna Interface
23.Speaker Output Terminals
24.Fuse Holder
