5 Installation

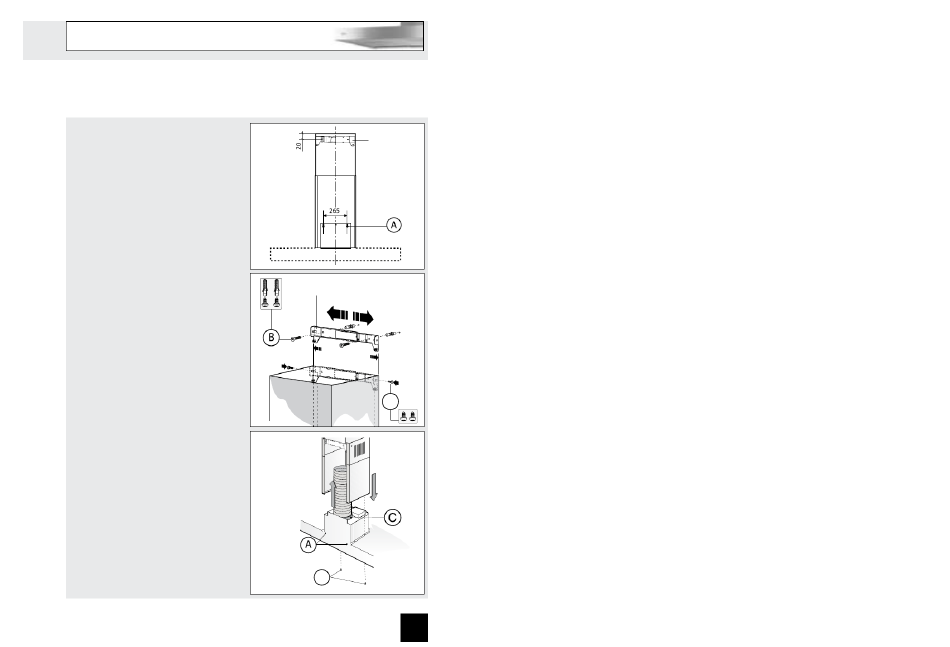

5.3 Mounting the canopy hood

Mount the hood on the wall using the
•
plugs and screws provided bracket
(A). Check size specifications.
Adjust the width of the brackets to
•
the width of the upper chimney. Next,
mount the bracket on the wall using
the plugs and the screws (B). Take
into account the distance between
the brackets bracket and the ceiling
(Check size specifications).
Install the vent duct on the flange (C)
•
and then onto the connecting surface
of the exhaust grid.
Put the plug in the wall socket.
•
Slide the upper chimney into the
•
lower chimney.
Attach the lower chimney to the hood
•
using the screws provided (D).
Slide the upper chimney around the
•
bracket and attach with the screws
provided (E).
bracket
bracket
E
D
45
