Seat functions and operation
+ -
* if fitted
32

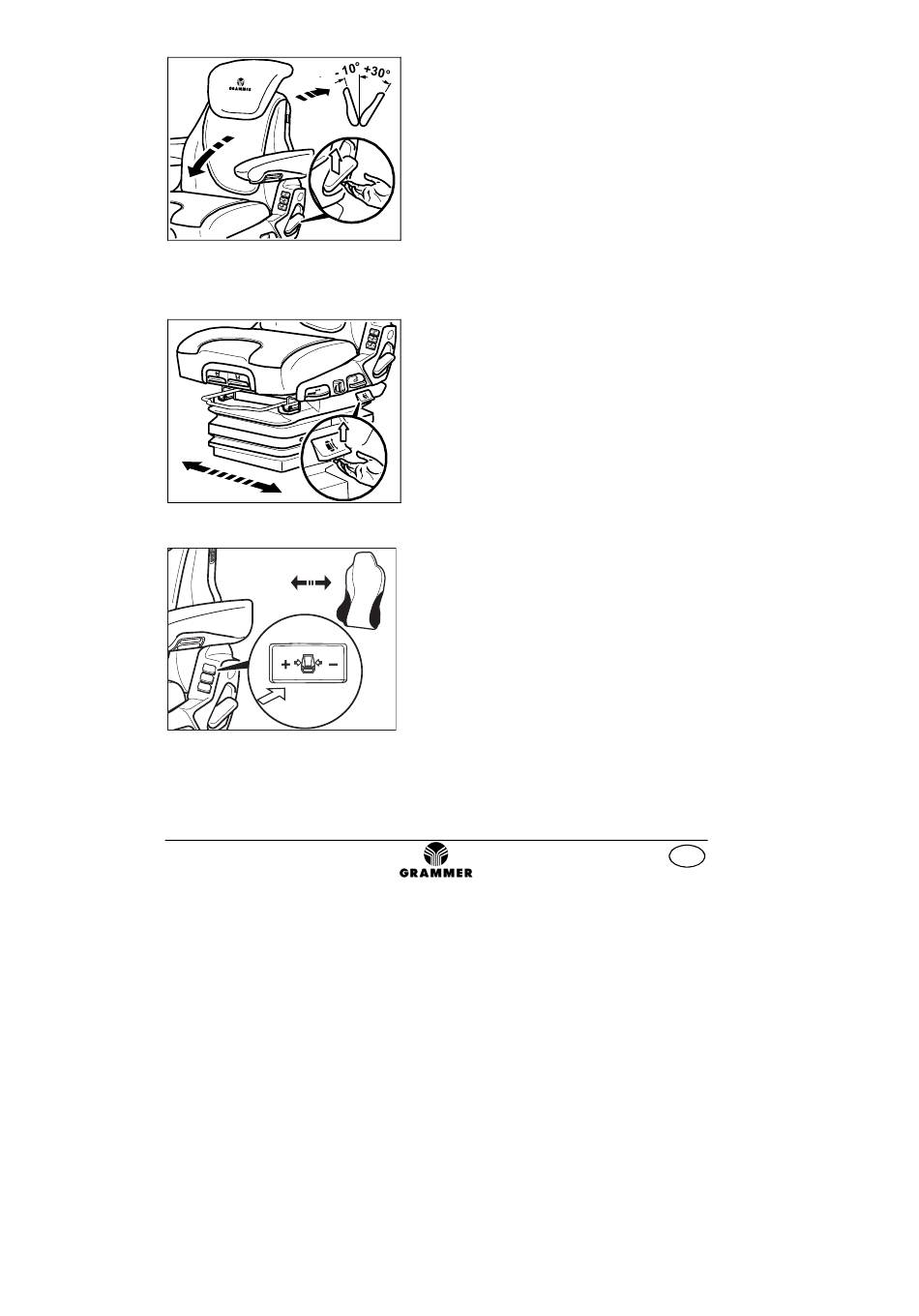

Backrest adjustment

Pull up the locking lever to release the
backrest catch. When releasing the backrest
catch, do not apply load to the backrest by
pressing against it.
By exerting pressure on or off the front or rear
part of the seat pan it can be moved to the
desired position. Release the locking lever to
lock the backrest.

925
It should not be possible to move the
backrest into another position after it has been
locked.

Lateral isolator *

Under certain operating conditions, it is useful
to activate the lateral isolator. This means that
lateral shock impacts can be better absorbed
by the driver's seat.
1
The cushioning effect can be activated with
0
the help of this locking lever.
0 lateral isolator OFF
1 lateral isolator ON
923

Side support adjustment *

By operating the switch, the degree of
protrusion of the lateral guides to the left and
right of the backrest can be adjusted
individually using compressed air.
The air chambers are filled by setting the
switch to " + " and emptied by switching to " - ".
If the curvature of the backrest cushion no
longer changes when the " + " switch is
operated, this means that the maximum
curvature of the guide of the backrest cushion
has been reached and the switch can be
released.
