Controls And Functions - Ground Zero GZRA MICRO FOUR Anleitung

Radioactive-serie
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

1
Mode switch
2
Input mode
3
Filter controller
4
High / Low switch
5
Input level controller
6
Status indication
7
Input connector
8
Main connector

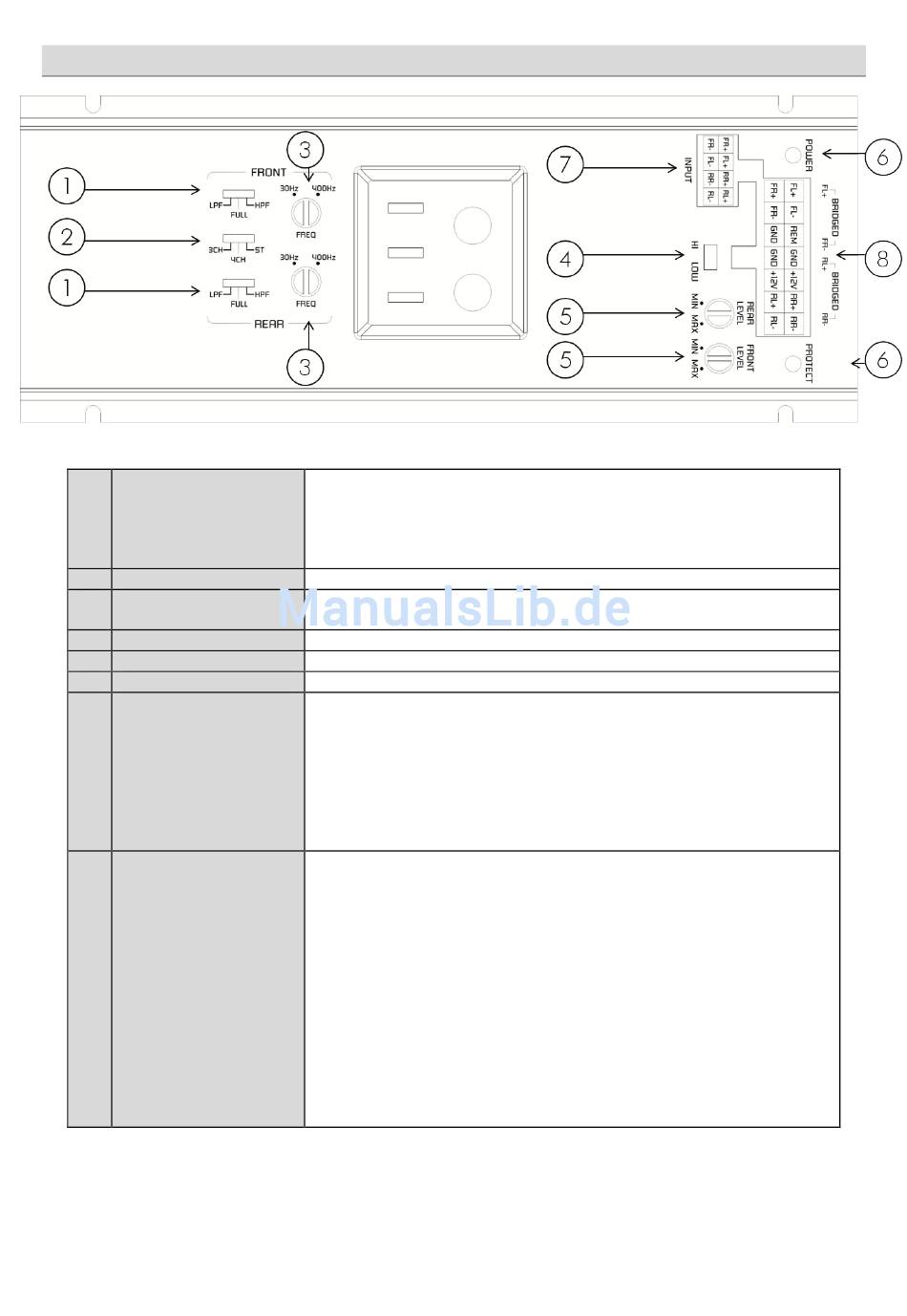

Controls and functions

Adjust the crossover for the chosen utilization.
LPF – Only bass frequencies (below 30Hz - 400Hz) will be reproduced.
FULL – All frequencies will be reproduced.
HPF – Only middle and high frequencies (over 30Hz – 400Hz) will be
reproduced.
To adjust the input mode (see below wiring diagrams)
Adjust the variable frequency to the desired frequency between 30 and
400 Hz using the controller.
Switch between high and low level (RCA) input.
With this controller you can adjust the input sensitivity.
GREEN – OK / RED – Error
Pin 1: Input RL (-) -> Negative signal input rear left (Green/Black)
Pin 2: Input RR (-) -> Negative signal input rear right (Purple/Black)
Pin 3: Input FL (-) -> Negative signal input front left (White/Black)
Pin 4: Input FR (-) -> Negative signal input front left (Grey/Black)
Pin 5: Input RL (+) -> Positive signal input rear left (Green)
Pin 6: Input RR (+) -> Positive signal input rear right (Purple)
Pin 7: Input FL (+) -> Positive signal input front left (White)
Pin 8: Input FR (+) -> Positve signal input front right (Grey)
Pin 1: Output FL (+)-> Positive speaker output front left (White)
Pin 2: Output FL (-)-> Negative speaker output front left (White/Black)
Pin 3: REM -> Remote – on (Blue)
Pin 4: GND -> Ground connection (Black)
Pin 5: BATT -> Input power supply +12 Volt (Red)
Pin 6: Output RR (+)-> Positive speaker output rear right (Purple)
Pin 7: Output RR (-)-> Negative speaker output rear right (Purple/Black)
Pin 8: Output FR (+)-> Positive speaker output front right (Grey)
Pin 9: Output FR (-)-> Negative speaker output front right (Grey/Black)
Pin 10: GND -> Ground connection (Black)
Pin 11: GND -> Ground connection (Black)
Pin 12: BATT -> Input power supply +12 Volt (Red)
Pin 13: Output RL (+)-> Positive speaker output rear left (Green)
Pin 14: Output RL (-)-> Negative speaker output rear left (Green/Black)
8
8
1
1
7
