LIST OF FIGURES
Fig. 1: Installation on flat surface
Fig. 2: Removing the front cover
Fig. 3: Removing the back cover
Fig. 4: Dimensioned drawing to facilitate installation in wall box or
panel front
Fig. 5: Connecting Modbus via the RJ12 6P4C port
Fig. 6: Connecting Modbus via the screw terminals
INTRODUCTION
EXcon HMI Touch is a touchscreen panel with user-friendly graphical
user interface specially developed for controlling ventilation systems.
The panel communicates with the Excon system via a Modbus inter-
face, ensuring easy installation.

PRODUCT PROGRAMME

Product
EXcon HMI Touch
OPERATION

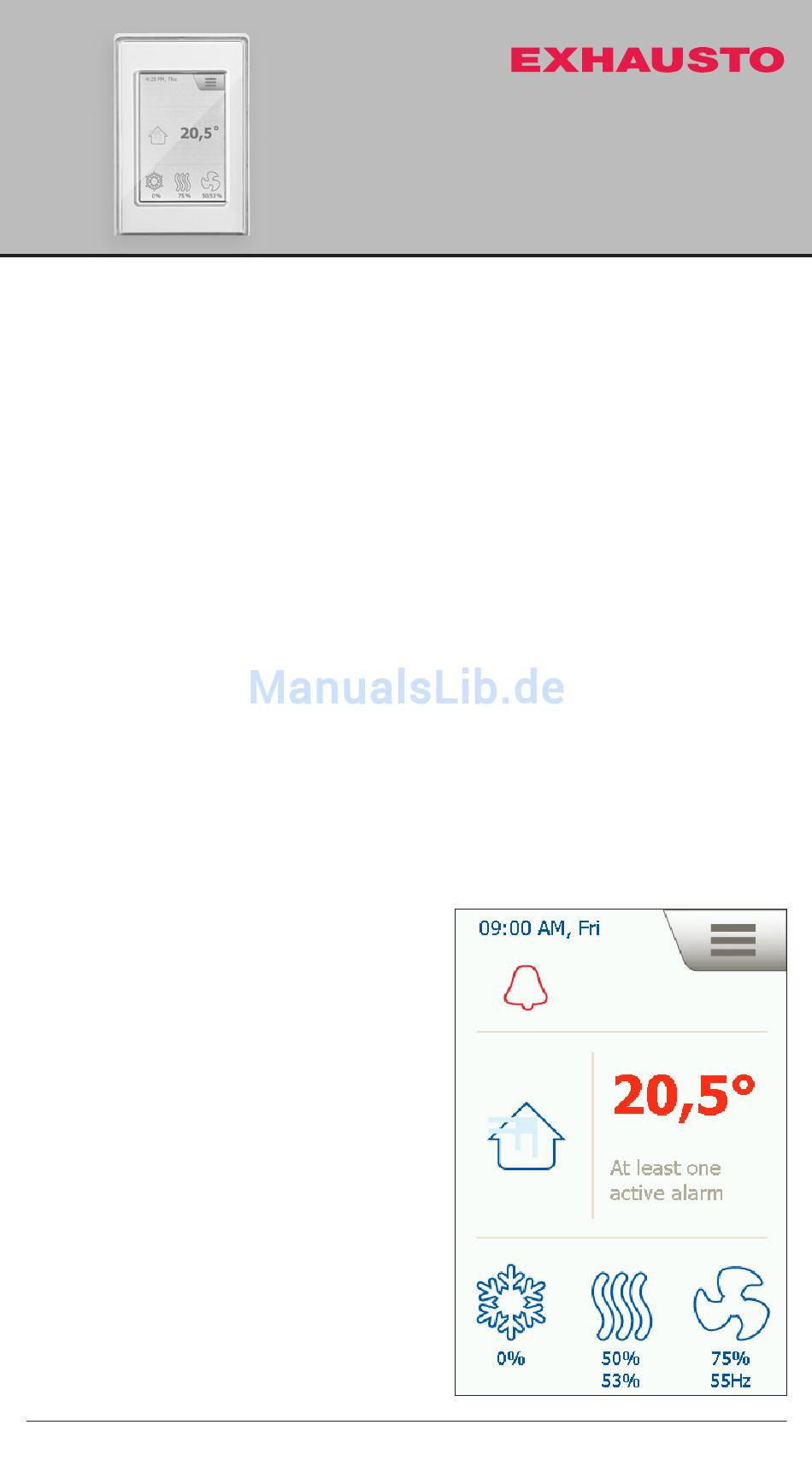

If the screen saver is active, simply
touch the screen once to open the
home screen.
This screen provides access to
elementary functions such as fan
speed, temperature and setup.
The time and day of the week are
shown in the top line of the screen.
Below these, an alarm bell is visible
if an alarm has been activated.
The house in the middle section
of the screen provides access to a
simple overview of temperatures,
air volumes and filter pressures.
The temperature shown to the right
EXcon HMI Touch
English
Type
3.5" touchscreen panel
© 2017 OJ Electronics A/S 3
