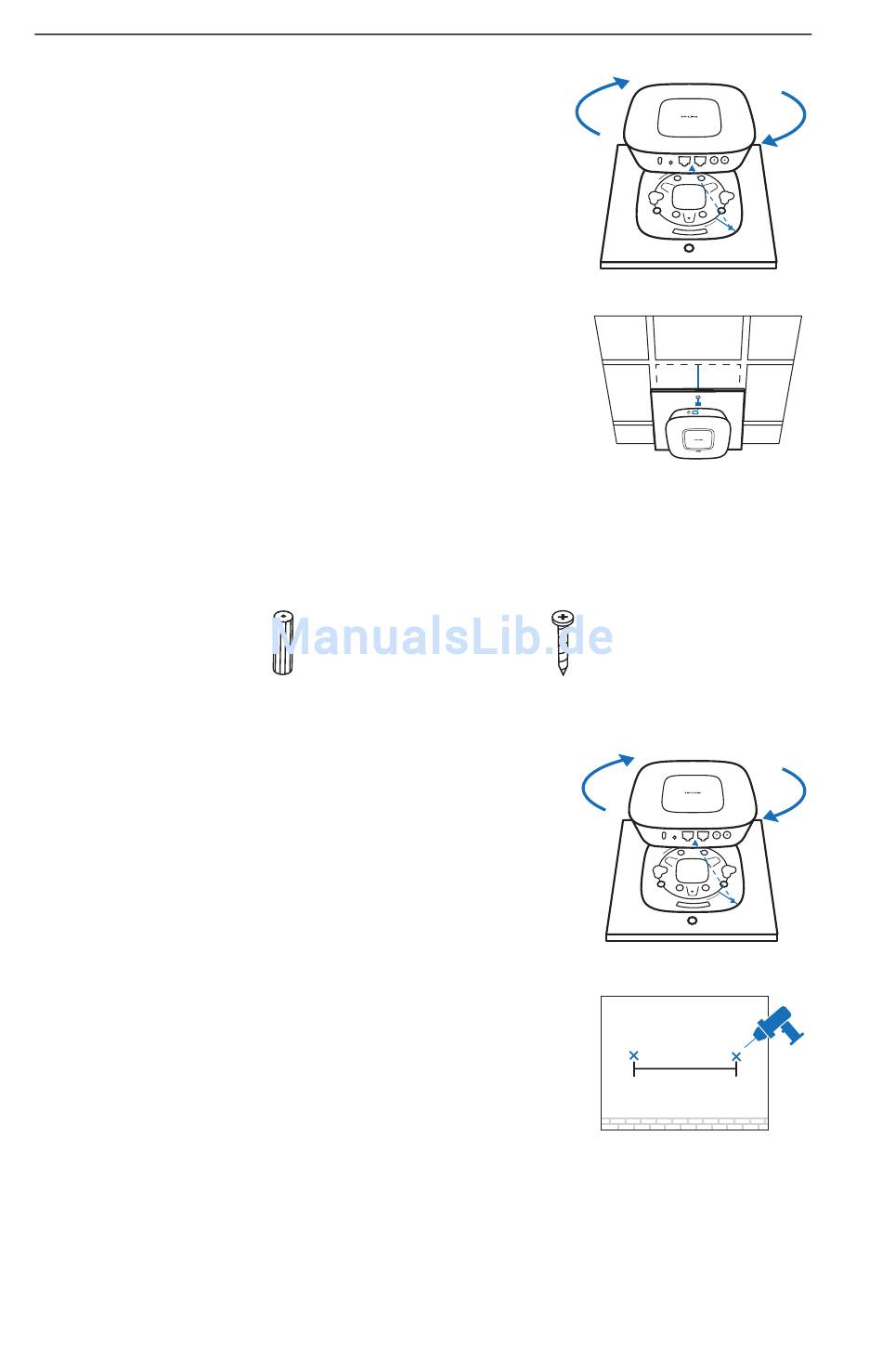

Attach the EAP to the mounting bracket by
aligning ARROW 1 (on the EAP) with ARROW
2 (on the mounting bracket), then rotate the
EAP clockwise until it locks into place.
5
Feed the Ethernet cable through the hole and
set the ceiling tile back into place. Connect
the Ethernet cable to the ETHERNET port.
Option3 ： Wall Mounting
■
Follow the steps below to install the EAP with the provided accessories:
M3×28 Plastic Wall Anchors
1
Attach the EAP to the mounting bracket by
aligning ARROW 1 (on the EAP) with ARROW 2
(on the mounting bracket), then rotate the EAP
clockwise until it locks into place.
2
Make two small pencil marks on the wall. Make
sure the two marks are level and should be
98.6mm apart. Drill two 6mm holes through
the center of your marks.
10
(Qty.4)
M3×20 Self-tapping Screws
(Qty.4)
98.6mm
