5.2.5 Connect to the Grid via a Circuit Breaker.（Optional）
Please Note: This installation must be performed by a certified electrician to avoid risks of electric shock,
!
fire, or other hazards.

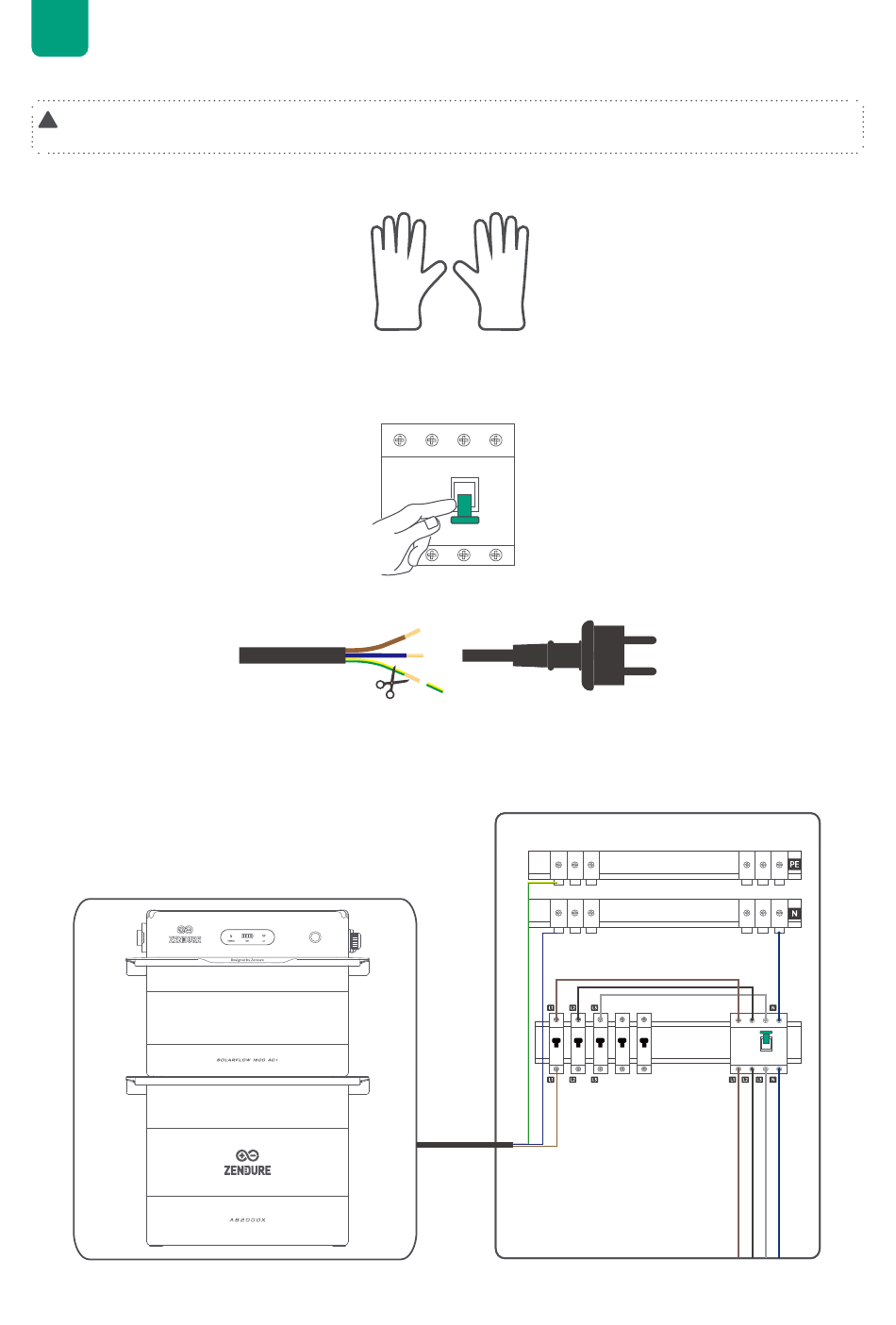

1. Put on Insulating gloves(Note: Gloves are not included and must be provided by the electrician or user.)
2. Turn off circuit protection switches to avoid electric shock risk, ensure the circuit breaker is turned off before
starting the installation. Verify that there is no voltage at the terminals using a multimeter. Only proceed with
the installation after confirming the absence of voltage.
3. Cut off the plug of the AC cable and strip the insulation from the three wires to expose the copper.
4. Connect the power cable to the electrical panel:
(1) Connect the live wire to an available circuit breaker.
(2) Connect the neutral wire and ground wire to the neutral and ground bars in the household panel, respectively.
Three-phase power household installation diagram
ON
OFF
10
ON
OFF
