GB

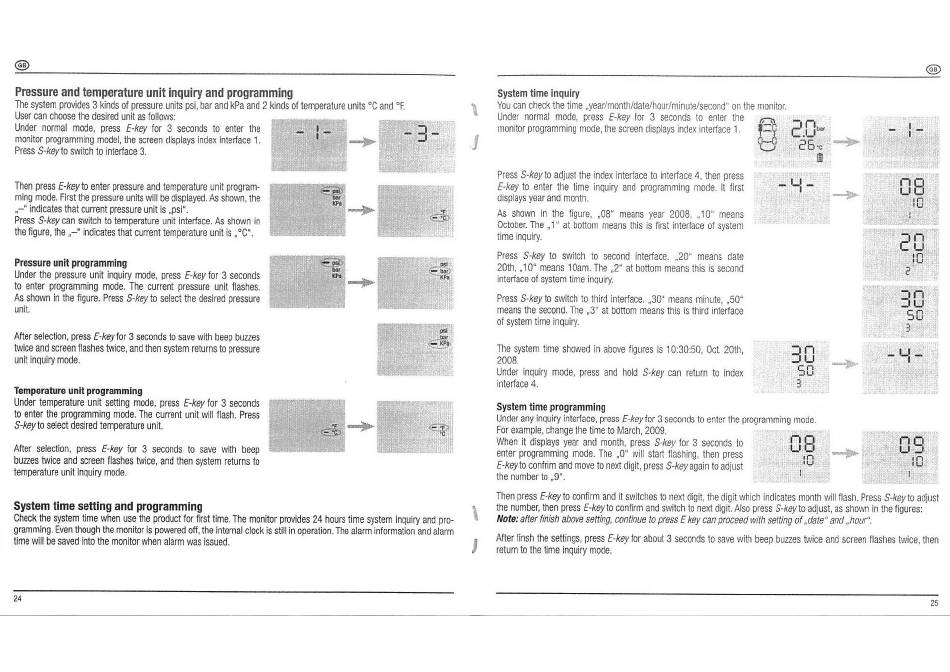

Pressureand temperature unit inquiry and programming
Th e syste m provide s 3 kinds ofpressure u nits psi,barandkPa and2 kinds oftemperature units 0
User can choose the desired unit as follows:
Unde r normalmode,press E-keyfor 3 secondsto enter the
r monito programming model, t he screen displays i ndexinterface 1.
PressS-keyto switchto interface3.
n The pressE-keytoenterpressure a ndtemperature u nitprogram-
g min mode. F irstthepressure u nitswillbedisplayed. Asshown, t he
indicate s thatcurrent p ressure u nitis „psi".
s Pres S-keycanswitchto temperature u nitinterface. Asshownin
thefigure,the„—" indicates t hatcurrent t emperature u nitis „oc".
Pressure unit programming
r Unde the pressure unit inquirymode, p ressE-keyfor3 seconds
to enter programmingmode. The current pressureunit flashes.
As show n in thefigure.PressS-keytoselectthedesired pressure
unit.
Afterselection,pressE-keyfor3 seconds to savewith beepbuzzes
twiceandscreen flashes twice,andthensystem returns to pressure
unit inquirymode.
Temperatureunit programming
Unde r temperature unitsettingmode,pressE-keyfor3 seconds
to enter the programming mode.The current unit will flash. Press
S-keyto selectdesiredtemperature unit.
After selection, p ress E-keyfor 3 secondsto savewith beep
buzze s twiceandscreen flashes twice,andthensystem returns to
temperatureunitinquirymode.
System time setting and programming
Chec k thesyste m timewhen usetheproduct forfirsttime. T hemonitor provides 24hours timesystem inquiry a ndpro-
gramming . Even though themonitor i s powered o ff,theinternal clockis stillinoperation. Thealarminformation a ndalarm
time will be saved into the monitor when alarm was issued.
24
System time inquiry
Youcan checkthe time „year/rnonth/date/hour/minute/secon(ff onthe monitor.
Cand OF.
Under normal mode, press E-key for 3 seconds to enter the
monitorprogramming mode,thescreendisplaysindexinterface1.
-3-
PressS-keytoadjust t he indexinterface to interface 4, thenpress
E-key to enter the time inquiry and programmingmode. It first
displaysyearandmonth.
As shown in the figure, „08" means year 2008, „IC
October. The„1" at bottommeansthis is first interface of system
time inquiry.
Press S-key to switch to second interface. „20" means date
20th, „10" meansloam. The „2" at bottommeansthis is second
interfaceof systemtime inquiry.
PressS-keytoswitchto third interface. „ 30" means minute,„50"
meansthe second.The „3" at bottommeansthis is third interface
of system time inquiry.
The systemtime showedin abovefigures is 10:30:50, Oct, 20th,
2008.
Underinquirymode,pressand hold S-keycan returnto index
interface 4.
System time programming
Under a nyinquiry interface, pressE-keyfor3 seconds t o entertheprogramming mode,
Forexample, c hangethetime to March,2009.
Whenit displays yearand month,pressS-keyfor 3 seconds to
enter programmingmode.The „0" will start flashing,then press
E-Reyto confrim andmove to next d igit,press S-key againto adjust
the number to
Then press E-keyto confirm andit switches to next d igit, t hedigitwhich indicates month willflash. P ress S -keyto adjust
thenumber, thenpressE-key to confirm andswitch to nextdigit. A lsopressS-keytoadjust, a sshown inthefigures:
Note:afterfinishabove setting, c ontinue topressEkeycanproceed withsetting of „date"and„hour".
Afterfinshthe settings, pressE-keyforabout 3 seconds to savewithbeepbuzzes t wiceandscreenflashes twice,then
J
returnto thetime inquirymode.
means
