PEERLESS Mounts RTLA-100 Installation Und Montage Seite 9

NOTE: Adjustment points (socket screws) are factory torqued for optimal performance. This factory torque setting
is recommended to prevent the screen from slipping over time. If more or less tension is desired follow this option-
al step. You may not achieve optimal torque value if factory torque settings are adjusted.

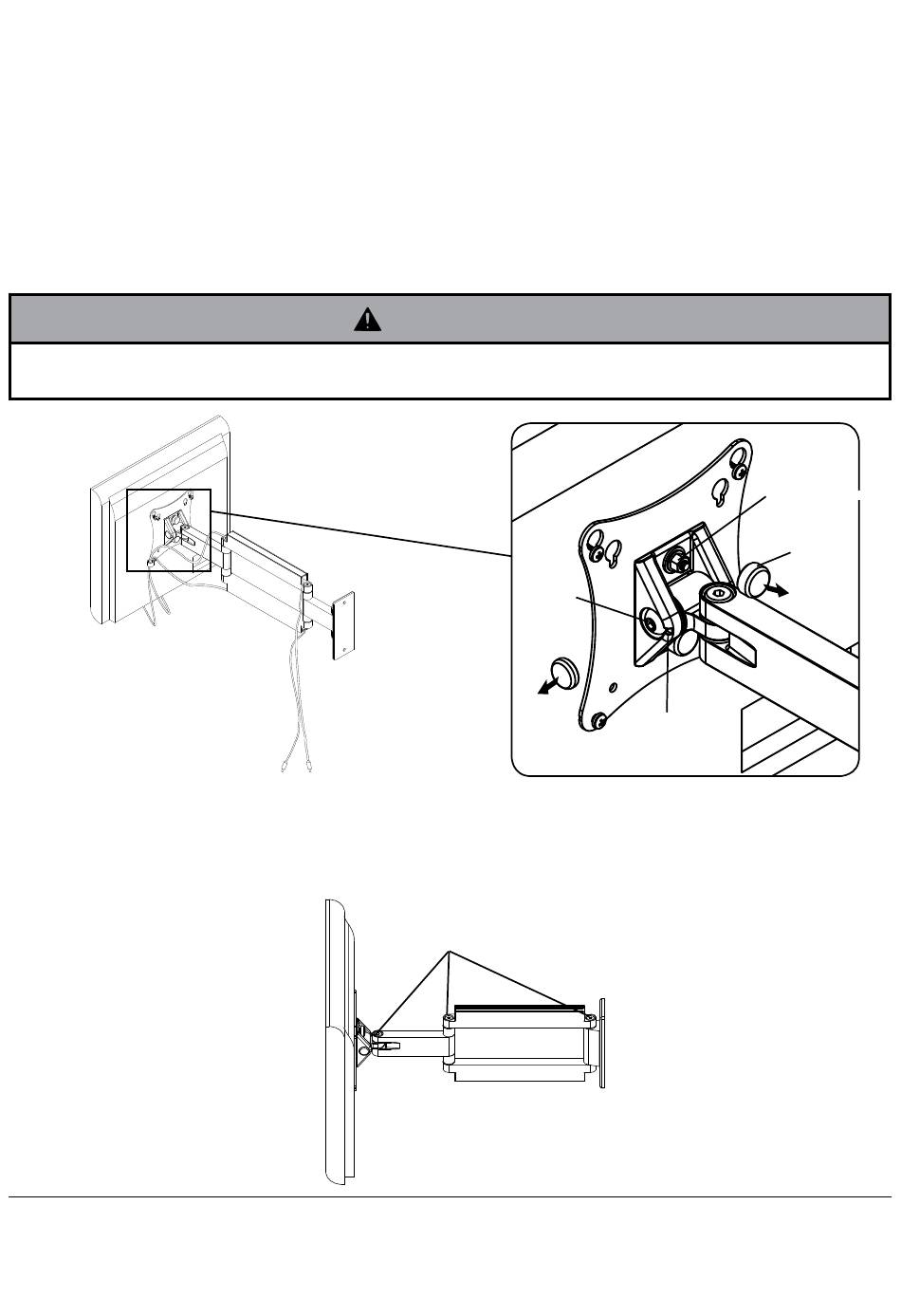

If more or less tension is desired in tilt mechanism, remove snap caps as shown in detail 2. Insert a flat head
screw driver into slot and pry cap away from tilt mechanism. To adjust tilt, simply tighten or loosen socket screw no
more than half a turn using 5 mm allen wrench (I). To adjust roll, simply tighten or loosen 10-32 nylock nut.
• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the screen
to fall.
If more or less tension is desired in the arm pivot points, do the following:
• To increase tension, turn socket screw clockwise with 3/16" allen wrench (B).
• To reduce tension, turn socket screw counter-clockwise with 3/16" allen wrench (B).
NOTE: Do not turn more than half a turn.
OPTIONAL
WARNING
SOCKET SCREWS
SOCKET
SCREW
9 of 18
All other brand and product names are trademarks or registered trademarks of their respective owners.
10-32 NYLOCK NUT
SLOT
DETAIL 2
ISSUED: 02-05-09 SHEET #: 202-9338-1
© 2009, Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.
SNAP CAP
3215 W. North Ave.
Melrose Park, IL 60160
