Parts List - Peerless Mounts Rtla-100 Installation Und Montage

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.

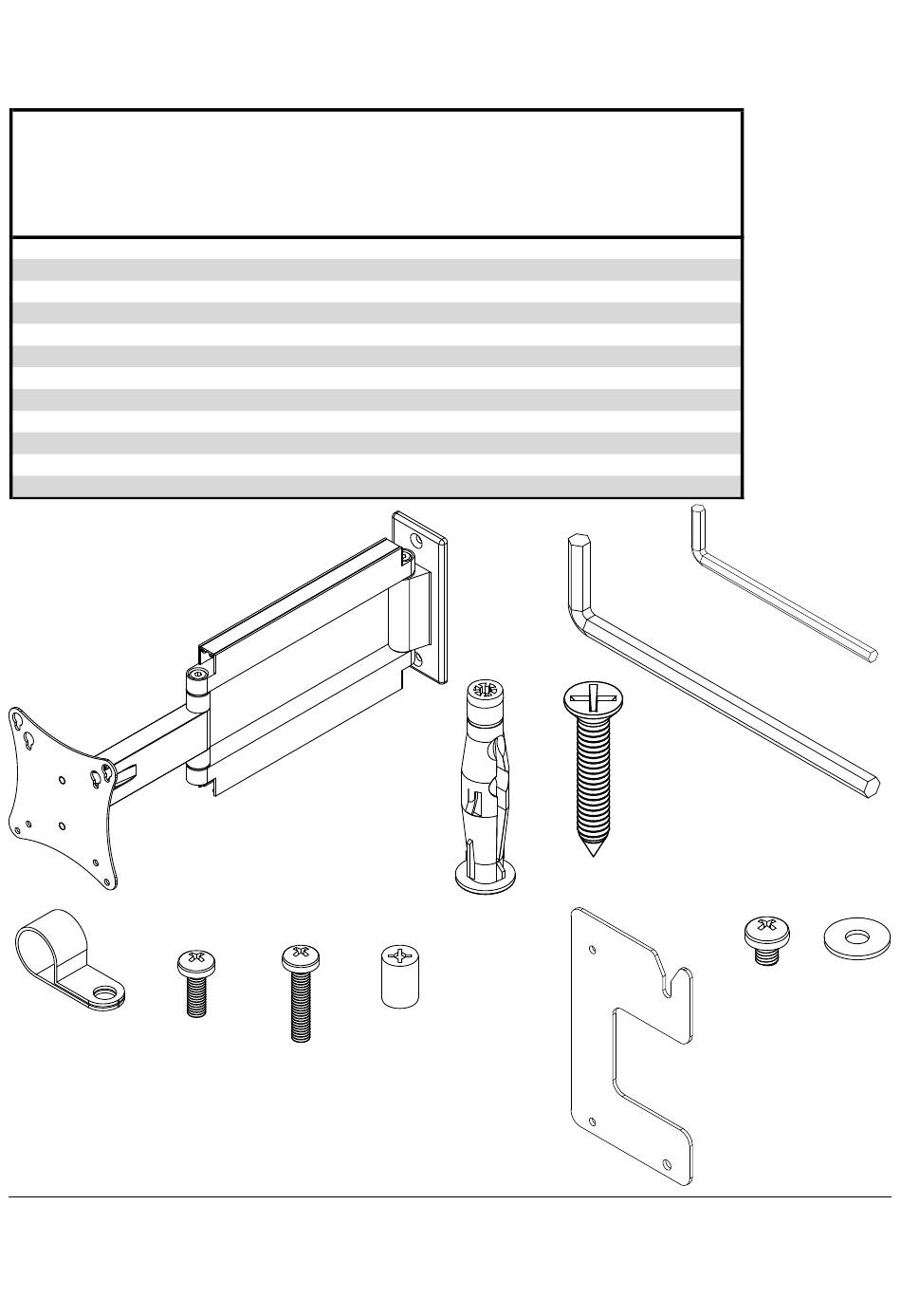

Parts List

Description
A wall arm assembly
B 3/16" allen wrench
C concrete anchor
D #14 x 63.5 mm flat head wood screw
E cord management clip
F M4 x 12 mm phillips screw
G M4 x 20 mm phillips screw
H retaining spacer
I 5 mm allen wrench
J VESA 200 x 100 adapter plate
K M5 x 6 mm screw
L #10 flat washer
A
E
F
G
SWV150/BK
D-LA-100
RTLA-100
SA730P
Qty. Part #
1 095-0385-B
1 560-0071
2 590-0320
2 520-1202
2 590-1264
4 504-9013
4 504-9020
4 590-5005
1 560-9640
2 095-1590
4 520-1023
4 540-9400
I
C
J
H
3 of 18
SWV150/SI
D-LA-100S
RTLA-100S
SA730P-S
Part #
095-0385-S
560-0071
590-0320
520-2165
590-2164
504-2013
504-2014
590-5003
560-9640
095-4590
520-2214
540-9442
B
D
ISSUED: 02-05-09 SHEET #: 202-9338-1
L
K
