7
Before carrying out any maintenance
tasks on the bottom stapler always
first disconnect it from the air supply.

7.1 LUBRICATION

The linkage bearings are greased at delivery.
At regular intervals (monthly) lubricate them with oil.
Also lubricate the moving parts in the stapling head
with a few drops of oil.

7.2 CLEANING THE BOTTOM STAPLER

This bottom stapler does not require special servicing.
It only needs regular cleaning with a non-aggressive
(non-corrosive) cleaning agent. Do not remove any
parts for cleaning purposes!
Check the proper functioning of all safety
devices daily. Make especially sure that:
– the foot valve safety latch and the protector move
freely without binding or sticking.
– all screws and nuts are securely tightened.

7.3 REMOVING JAMMED STAPLES

Before carrying out any maintenance
tasks on the bottom stapler always
first disconnect it from the air supply.

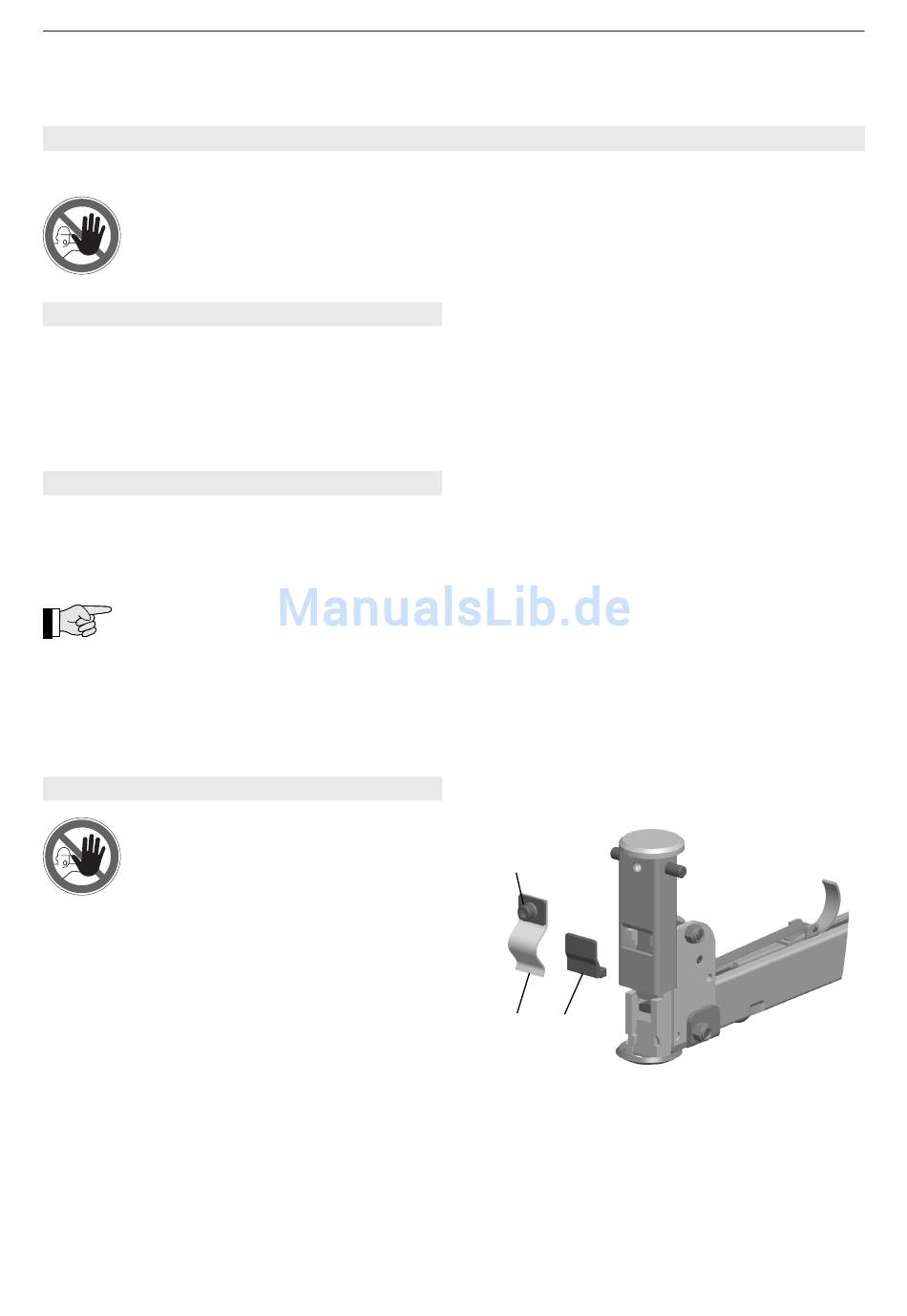

– Loosen the screw (Fig. 11/1). Squeeze the stapler
head and remove the staple trip block(11/3).
– Driving down the lower part of stapling head until
the defective staple exposed.
– Remove the defective staple.
– Replace the driver (16/5) if it is worn.
– Assemble in reverse order.
10

PREVENTIVE AND CORRECTIVE MAINTENANCE

1
2 3
Fig. 11
02.15
