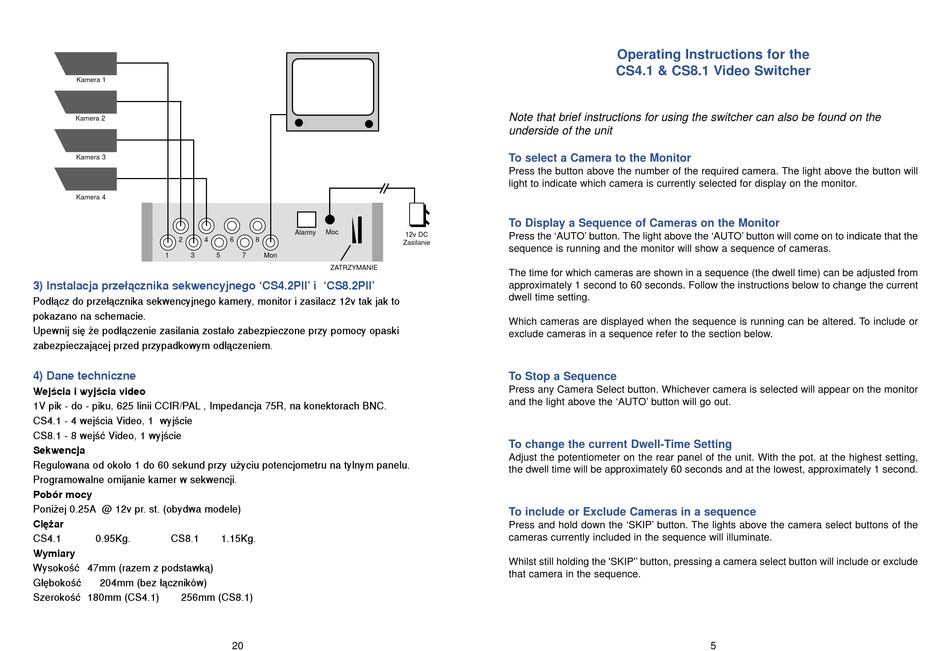

3) Instalacja prze∏àcznika sekwencyjnego 'CS4.2PII' i 'CS8.2PII'
Pod∏àcz do prze∏àcznika sekwencyjnego kamery, monitor i zasilacz 12v tak jak to
pokazano na schemacie.
Upewnij si´ ˝e pod∏àczenie zasilania zosta∏o zabezpieczone przy pomocy opaski
zabezpieczajàcej przed przypadkowym od∏àczeniem.

4) Dane techniczne

WejÊcia i wyjÊcia video
1V pik - do - piku, 625 linii CCIR/PAL , Impedancja 75R, na konektorach BNC.
CS4.1 - 4 wejÊcia Video, 1 wyjÊcie
CS8.1 - 8 wejÊç Video, 1 wyjÊcie
Sekwencja
Regulowana od oko∏o 1 do 60 sekund przy u˝yciu potencjometru na tylnym panelu.
Programowalne omijanie kamer w sekwencji.
Pobór mocy
Poni˝ej 0.25A @ 12v pr. st. (obydwa modele)
Ci´˝ar
CS4.1 0.95Kg. CS8.1
Wymiary
WysokoÊç 47mm (razem z podstawkà)
G∏´bokoÊç 204mm (bez ∏àczników)
SzerokoÊç 180mm (CS4.1) 256mm (CS8.1)
Alarmy Moc
6 8
5 7 Mon
ZATRZYMANIE
1.15Kg.
20
Note that brief instructions for using the switcher can also be found on the
underside of the unit
To select a Camera to the Monitor
Press the button above the number of the required camera. The light above the button will
light to indicate which camera is currently selected for display on the monitor.
To Display a Sequence of Cameras on the Monitor
12v DC
Press the 'AUTO' button. The light above the 'AUTO' button will come on to indicate that the
Zasilanie
sequence is running and the monitor will show a sequence of cameras.
The time for which cameras are shown in a sequence (the dwell time) can be adjusted from
approximately 1 second to 60 seconds. Follow the instructions below to change the current
dwell time setting.
Which cameras are displayed when the sequence is running can be altered. To include or
exclude cameras in a sequence refer to the section below.
To Stop a Sequence
Press any Camera Select button. Whichever camera is selected will appear on the monitor
and the light above the 'AUTO' button will go out.
To change the current Dwell-Time Setting
Adjust the potentiometer on the rear panel of the unit. With the pot. at the highest setting,
the dwell time will be approximately 60 seconds and at the lowest, approximately 1 second.
To include or Exclude Cameras in a sequence
Press and hold down the 'SKIP' button. The lights above the camera select buttons of the
cameras currently included in the sequence will illuminate.
Whilst still holding the 'SKIP'' button, pressing a camera select button will include or exclude
that camera in the sequence.
Operating Instructions for the
CS4.1 & CS8.1 Video Switcher
