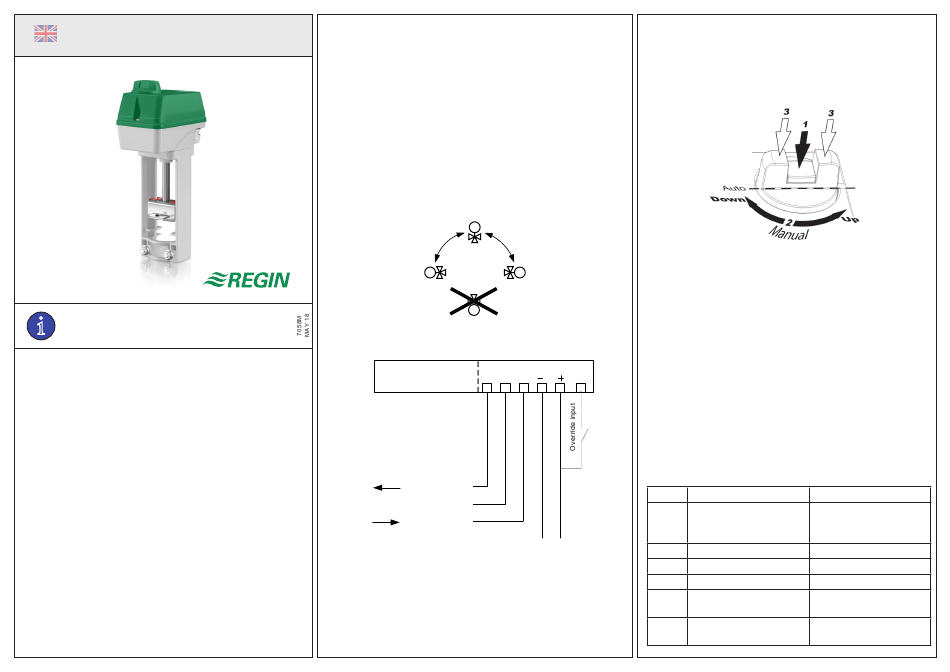

INSTRUCTION
EN
RVAR5-24A
i
Read this instruction before installation
and wiring of the product
Valve actuator for 0(2)...10 V control
RVAR5-24A is a valve actuator designed for control of MMV and MMR
valves. The actuator has automatic self stroke adjustment and can be
operated manually.
Technical data
Supply voltage 24 V AC ±15 %, 50/60 Hz
or 24 V DC ±15 %
Control signal 0(2)...10 V DC
Max. power consumption 5.1 W / 13.9 VA
Stroke 10...30 mm
Stroke time 1.5 s/mm
Force 500 N
Ambient temperature 0...50°C
Storage temperature -40...80°C
Ambient humidity 10...90 % RH
Dimensions (WxHxD) 150 x 295 x 85 mm
Protection class IP54
Installation
If the valve stem adaptor and valve throat adaptor are not already mounted
on the valve, mount them. Pull the valve stem out as far as possible.
Mount the stem connector and fix it with the nut.
Remove the locking bolt (U-bolt) from the actuator yoke. Insert the valve
stem into the yoke and make sure that the stem adaptor engages the hole
in the angled iron of the actuator drive spindle.
The groove in the valve throat adaptor must be made to line up with the
U-bolt mounting holes on the actuator. If the spindle needs moving in or
out for this to happen, depress the central part of the manual button and
turn it clockwise for the actuator spindle to extend, and anti-clockwise for it
to retract (see Manual override). When the valve is in the correct position,
insert the U-bolt. Tighten the bolt nuts until the valve is firmly gripped.
Disassembly in reverse order.
Mounting positions
90º
Wiring
U M
5 4
Measuring voltage
for position indication
U 0...10 V DC
Signal neutral
Y 0(2)...10 V DC
Control signal from
controller
Stroke and end position calibration
Stroke and end position calibration is not necessary due to a construction
utilizing end position stops. When the valve reaches the end position, a
force is generated. Once the force of the actuator reaches a predefined
level, the limit switch automatically halts the drive motor.
RVAR5-24A
Override
Activation of the override input will force the valve to the maximum
open position.
Manual override
90º
To manually set the valve position, first depress the central part of the
knob, until it clicks and remains depressed (1 in the figure). Then the
valve position can be changed manually by turning the knob (2 in the
figure). When the knob is turned clockwise, the drive rod is pushed
outwards and when the knob is turned anti-clockwise, the drive rod is
pulled inwards.
To return to normal operation, set the knob so that it is in line with the
text "Auto" on the cover. Then depress the outer parts of the knob (3
in the figure). The central depressed part will pop out, and the actua-
G0 G
Y B
tor will return to normal operation.
6
3 2 1 Note: After any manual operation the actuator will always run through
a zero point calibration.
DIP switches
There are six DIP switches for setting different functions. Follow the
table below for setting the DIP switches.
Adjusted settings will be valid only after the next power-on.
SW1
24 V AC/DC
SW2
SW3
SW4
SW5
SW6
1 (On) 0 (Off)
Spindle down when the Spindle up when the valve
valve is closed is closed (FS=factory set-
ting)
LOG LIN (FS)
Y = 2...10 V DC Y = 0...10 V DC (FS)
Reverse operation Direct operation (FS)
Y signal split in accordance No split function (FS)
with the setting of SW6
5(6)...10 V = 0...100 % 0(2)...5(6) V = 0...100 %
(FS)
1
