Manual for: SUMMIT EasyFloat UV 40W / 80W / 130W
EN

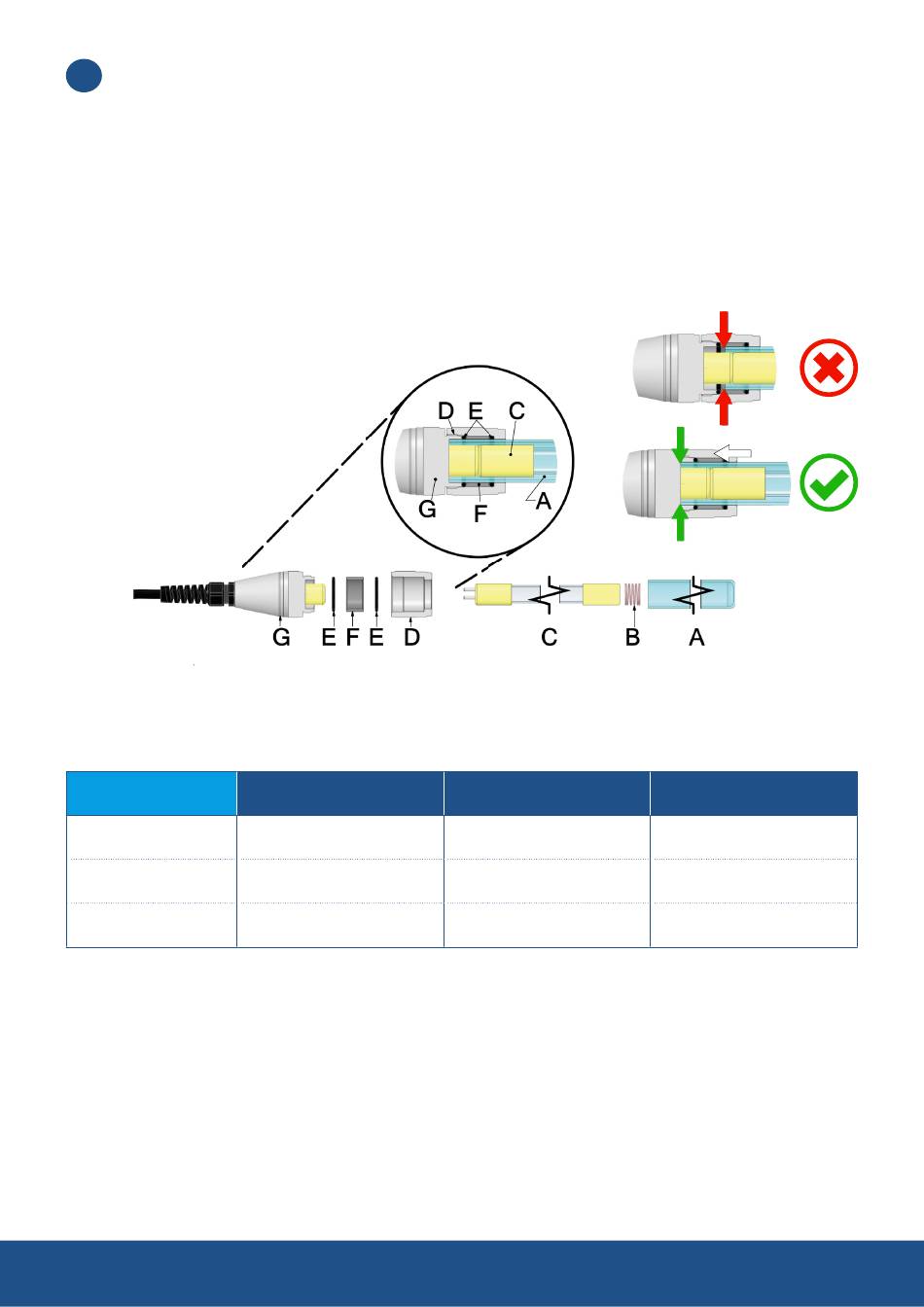

4.1 Assembling quartz glass and lamp
When assembling the lamp and the quartz follow these steps:
1. Put the spring inside the quartz glass and then put in the lamp
2. Slide the stainless steel clamp ring over the quartz glass
3. First place one o-ring, then the plastic clamping bush and then another o-ring around the quartz glass
4. Push the quartz glass completely inside the stainless steel fitting until it cannot go any further
5. Hand tighten the stainless steel clamp ring around the fitting so it is fixed in place
All adjustments, actions and controls must be documented in the logbook.
A
Quartz Glass Immersion 384 x 25 mm AM
Quartz Glass Immersion 627 x 25 mm AM
Quartz Glass Immersion 875 x 30 mm AM
C
VGE T5 40W Amalgam Base C
VGE T5 80W Amalgam Base C
Lamp Lighttech T6 130W Amalgam 4P Base E

5. Logbook

Complete this document and ensure that this document is physically placed with the device.
UV-system
Date of installation
Responsible user
Main user
The following items must be described in the logbook.
• Date of incident/check/serve;
• Work performed, comments;
Performed work can consist of;
1. Cleaning of Quartz Glass
2. Replacing UV-C Lamp
3. Replacing Quartz Glass
When system went in operation or when a UVC lamp is replaced make a comment in the log book to replace the lamp
again in 16.000 hours (22 months).
40W
W W W . S U M M I T WA T E R S Y S T E M S . N L
80W 130W
18
