Installation
1 .Embedded in the simulation chimney

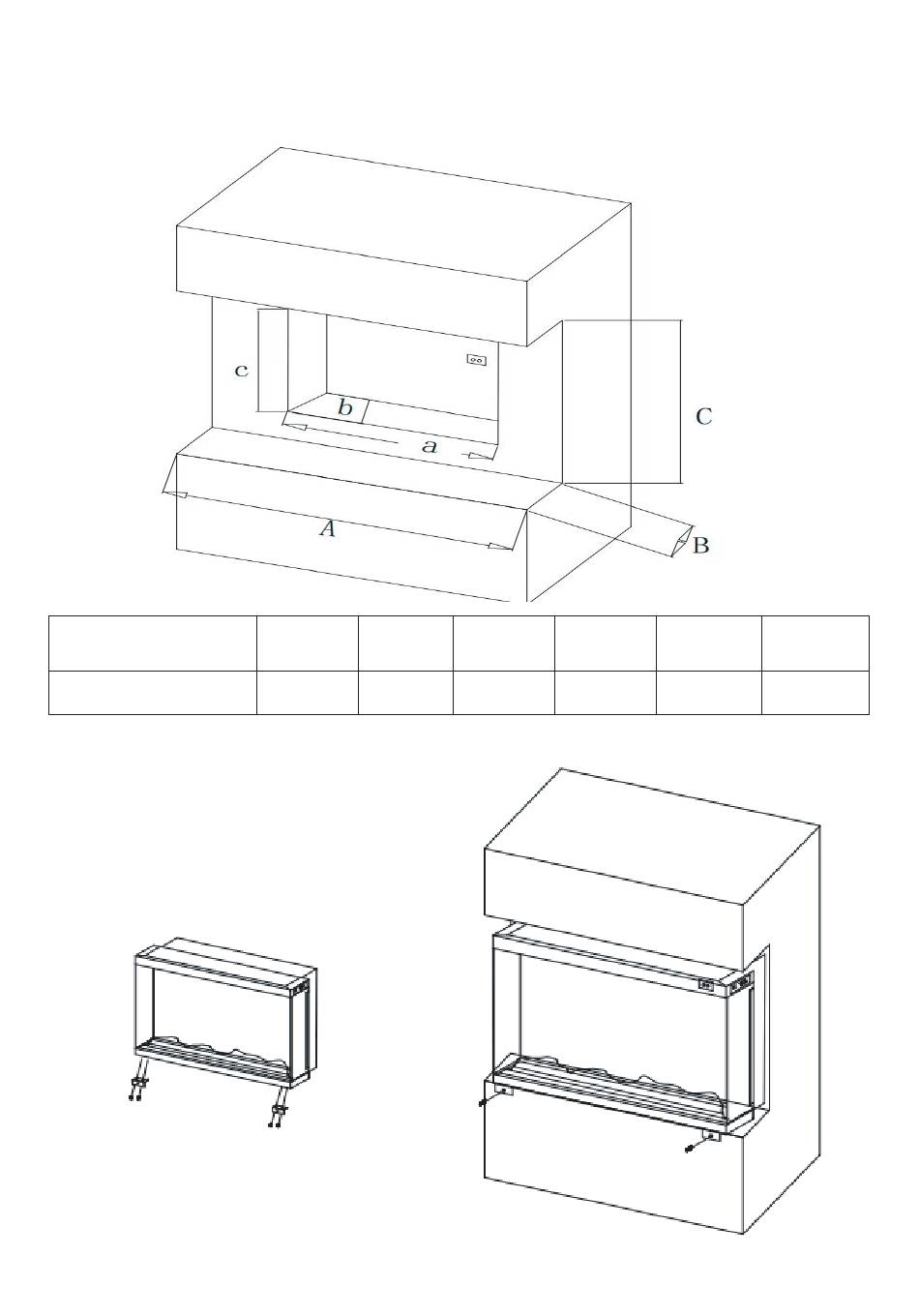

Step 1 .According to the information in the table, reserve the corresponding size of the chimney
and reserve the socket at the top right of the hole.(picture)
MODEL NUMBER A(mm) B(mm) C(mm) a(mm) b(mm) c(mm)
406274 914 120 395 875 145 395
Step 2 . Fix the fixing bracket in the accessory bag to the bottom of the product with 4 screws of
4*10mm (picture 1).
picture 1 picture 2
