www.videolarm.com

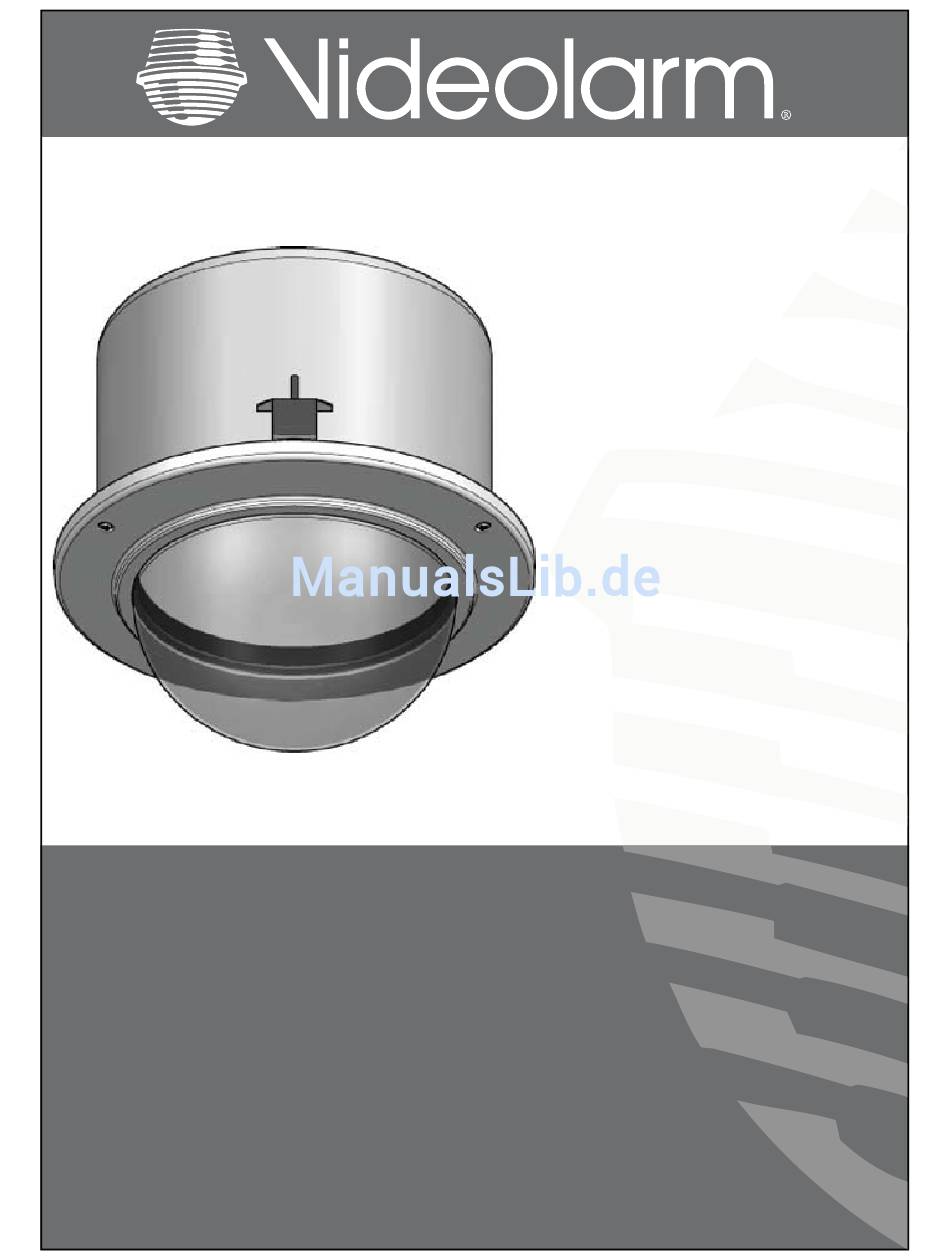

R M 7
Vandal-Resistant Recessed Ceiling Dome Housing
Installation and Operation Instructions for the following models:
RM7C2N IP Network Ready 7" Vandal-Resistant Outdoor Recessed dome housing, with recessed
ceiling mount, clear dome, with 24Vac transformer
RM7T2N IP Network Ready 7" Vandal-Resistant Outdoor Recessed dome housing, with recessed
ceiling mount, tinted dome, with 24Vac transformer
IRM7C2N IP Network Ready 7" Vandal-Resistant Indoor Recessed dome housing, with recessed
ceiling mount, clear dome, with 24Vac transformer
IRM7T2N IP Network Ready 7" Vandal-Resistant Indoor Recessed dome housing, with recessed
ceiling mount, tinted dome, with 24Vac transformer
B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t ,
p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
81-IN5394R1
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Moog Videolarm IRM7C2N
Inhaltszusammenfassung für Moog Videolarm IRM7C2N
- Seite 1 RM7T2N IP Network Ready 7” Vandal-Resistant Outdoor Recessed dome housing, with recessed ceiling mount, tinted dome, with 24Vac transformer IRM7C2N IP Network Ready 7” Vandal-Resistant Indoor Recessed dome housing, with recessed ceiling mount, clear dome, with 24Vac transformer IRM7T2N IP Network Ready 7” Vandal-Resistant Indoor Recessed dome housing, with recessed...
- Seite 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings.
-
Seite 3: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship, as follows: VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship, as follows: PRODUCT CATEGORY PARTS LABOR... -
Seite 4: Electrical Specifications
28 watt Italiano Attrezzi Richiesti: Cacciavite Capo Piano Del 100" Cacciavite Capo "phillips" Nota: IRM7CN non include accessori IRM7C2N (INDOOR ONLY) 24 VAC No power options provided. Power required for camera only. 24 VAC Ningunas opciones de la energía proporcionaron. - Seite 5 10.375” A box cutter or jigsaw can be used for Using the provided template, mark the cutting the circle. ceiling tile for the cutout. • Con la plantilla proporcionada, cortar el azulejo del • Un cortador o un rompecabezas de la caja se techo para el agujero.
- Seite 6 Add the safety wire to the flex conduit or Connect the flex conduit to the housing. continue to the next step. • Agregue el alambre de seguridad al conducto de la • Conecte el conducto de la flexión con la flexión o continúe al paso siguiente.
- Seite 7 Green Yellow Accessory Power Camera Power Orange The beam angle may be adjusted on the These are recommended maximum distances Camera = red & orange wires to terminal bottom of the unit. Heater/Blower = yellow & green wires to terminal for 24VAC with a 10% voltage drop.
- Seite 8 beam angle may be adjusted on the bttom Secure the dome with screws already The security screws provided can also be used in the dome. o the unit. to attach the dome. • Los tornillos de la seguridad proporcionados se pueden •...
- Seite 9 Axis 214 Mounting Hole 3026 Mounting Plate (3) #8 x 3/8” Captive 2" Screw Mounting Mounting Hole Hole Install the camera to the mounting plate using (3) 3mm x 12mm bolts and lock washers. Place (3) #8x3/8” screws on the spacers and line up the mounting slots. Slide plate in and secure. •...
- Seite 10 AXIS 231-232D Axis 231D/232D Mounting Hole Loosen Screw Mounting Mounting Hole Hole Loosen the screw to the right of the tab by Use the (3) keyhole slots indicated above. approximately (5) turns. • Utilice (3) las ranuras del ojo de la cerradura indicadas •...
- Seite 11 Locking Screw Captive (3) #8 x 3/8” Screw Locking Keyhole Pins Slot (3) ½" Position locking pins and locking screw over slots and turn clockwise; secure the screw. Place (3) #8x3/8” screws on the spacers and line up mounting slots. Slide on plate and camera then secure. •...
- Seite 12 Open Screw Slots Cable Ties POWER Camera Power (24VAC) Camera Power (24VAC) Orange CONTROL RJ45 Ethernet Connector ALARMS Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Captive Common White Screw Complete the wiring to camera. Attach the camera assembly to the housing by sliding the (3) This is what the typical path of illumination will look like with the setting at 30 degrees.
- Seite 13 Mounting Bracket ½" Now remove the mounting bracket and attach (4) 1/2” spacers (located in the packet that came with the housing) to the base bracket. • Ahora quite el soporte de montaje y una (4) los espaciadores del 1/2"(situados en el paquete que vino con la cubierta) al soporte bajo.
- Seite 14 Thumb Screw Locking Screw Keyhole Slots Place quick release plate onto the bottom of the camera. Align the camera locking screws and the keyhole This is what the typical path of illumination will look like with the setting at 30 degrees. slots.
- Seite 15 Canon VB-C50IR ½" 2539 Mounting Plate Mounting Captive Hole Screw 1" 2" Mounting Hole Mount the camera to the 2539 plate using the provided hardware. Place (3) 8 x 32 x 3/8 Phillips head screws on the top of the spacer as shown above. Slide plate in and secure. •...
- Seite 16 Elmo PTC-200C Captive (3) 8 x 32 x 3/8 Screw ½" 2539 Mounting Plate Mounting Hole 1" 2" Mounting Hole Place the camera onto the quick release bracket using the (4) metric 3M Phillips head screws provided. Place the screws on the spacers. Slide on the plate and camera then secure. •...
- Seite 17 Elmo PTC-400C ½" 2539 Mounting Plate Mounting Hole Quick release plate 1" 2" Mounting Hole Attach quick release bracket to mounting plate using (4) #8 screws and star washer. Complete assembly as shown, then secure camera to the quick release plate. •...
- Seite 18 JVC VN-C30U 2539 Mounting Plate ½" 2" Mounting Hole Remove the camera plate and mount to the bracket using the (3) metric 3M Phillips head screws. Reattach plate back to the camera. Place the screws on the spacers. Secure the plate and camera. •...
- Seite 19 JVC VN-C655U ½" 1" Mounting 2630 Mounting Hole Plate Place the camera on the bracket with the (4) phillips head screws. Use (4) 1” spacers and (4) 1/2” spacers provided. Place the screws on the spacers. Slide on the plate and camera then secure. •...
- Seite 20 Pixord 261/262 ½" Mounting 2630 Mounting Hole Plate Install camera to the bracket with (3) 8x32x.5” flat head screws, nuts and washers. Place (3) 8x32x3/8”screws on the spacers. Slide on the plate and camera then secure. • Instale la cámara fotográfica al soporte con (3) los tornillos, las tuercas y las arandelas principales el 8x32x.5"planos. Coloque (3) 8x32x3/8"screws en los espaciadores.
- Seite 21 Sony SNCRZ30 2" 2539 Mounting Mounting Hole Plate Attach bracket with (1) 1/4x20 bolt, washer and lock washer. Place (3) 8x32x3/8”screws on the spacers. Slide on the plate and camera then secure. • Una el soporte con (1) el perno 1/4x20, la arandela y la arandela de cerradura. Coloque (3) 8x32x3/8" screws en los espaciadores.
-
Seite 22: Replacement Parts List
Lanyard Clip RP90BTRP61 8 x 32 x 3’” Bolt (3) RM7C2N OUTDOOR ONLY RPVL2204 Ceiling Spring Clips (3) RP96RSORG11 Trim Ring O-Ring IRM7C2N INDOOR ONLY RP95FSSL05 Spring Lanyard RPFD703 Dome Clamping Ring RP30VL2884 Aluminum Trim Ring RP90BT3007 Captive Phillips Screws (3) - Seite 23 Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
