© 2011, Moog Videolarm, Inc. All Rights Reserved

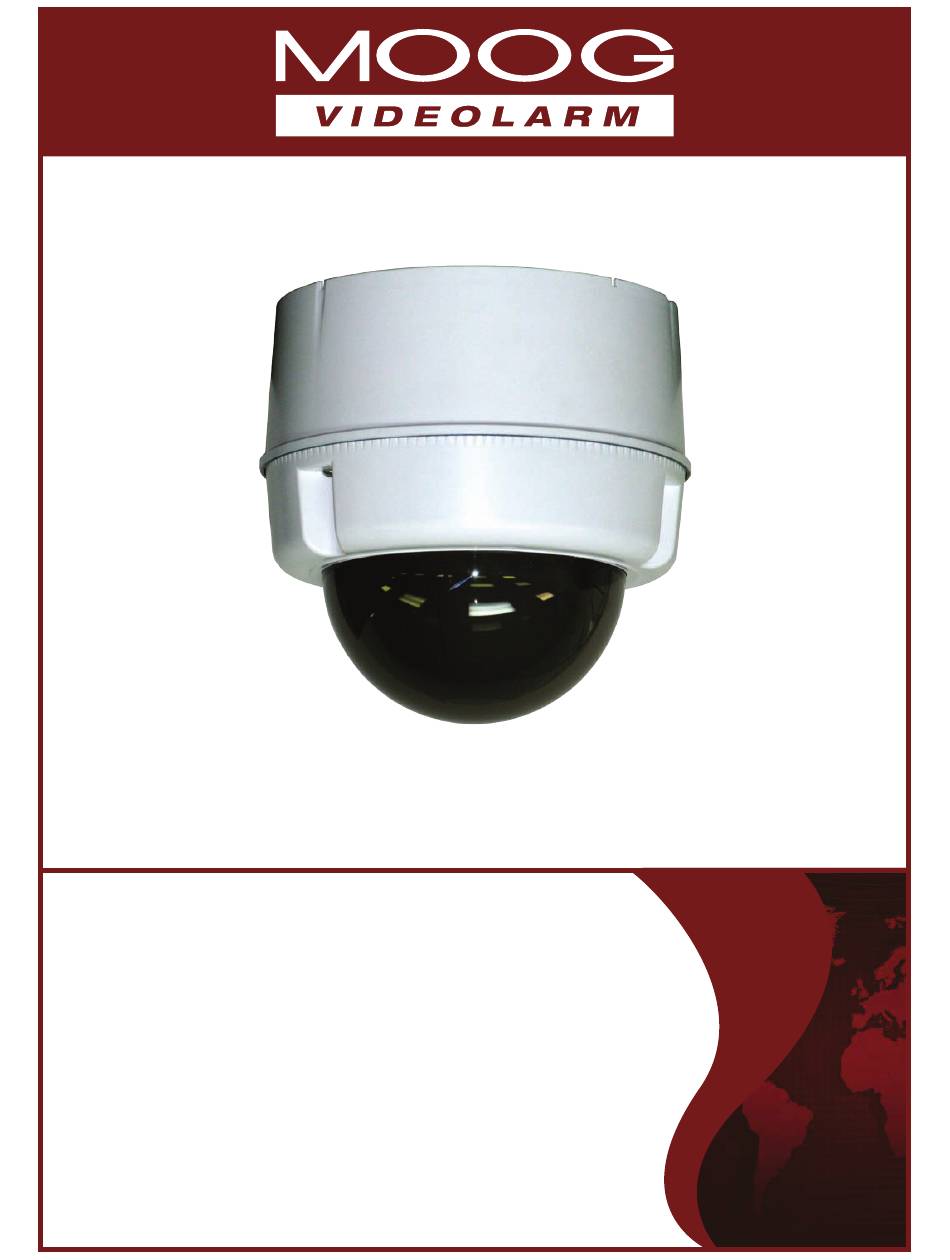

S M 5 C 8 N a n d S M 5 C F 8 N
PoE Ready™ Compact Vandal-Resistant Surface Mount Dome-5"
Installation and Operation Instructions for the following models:
SM5C8N
Outdoor 5" PoE surface mount housing for small PTZ camera, conduit input from the
(SM5T8N)
side and top of the housing, 30W PoE input, with heater and Dynamic Power Allocation™.
Polycarbonate body and clear/tinted dome. IP66, 1" NPT threads for pendant mount.
SM5CF8N
Outdoor 5" PoE surface mount housing for small fixed camera, conduit input from the side and the
(SM5TF8N)
top of the housing, 30W PoE input, with heater and Dynamic Power Allocation. Polycarbonate body
and clear/tinted dome. IP66, 1" NPT threads for pendant mount.
SM5CF8NE Outdoor 5" PoE surface mount housing for small fixed camera, conduit input from the
(SM5TF8NE) side and the top of the housing 30W PoE input, with heater and Dynamic Power Allocation.
Polycarbonate body and clear/tinted dome. IP66, 1" NPT threads for pendant mount.
(no midspan included)
SM5C8NE
Outdoor 5" PoE surface mount housing for small PTZ camera, conduit input from the side
(SM5T8NE) and the top of the housing 30W PoE input, with heater and Dynamic Power Allocation.
Polycarbonate body and clear/tinted dome. IP66, 1" NPT threads for pendant mount.
(no midspan included)
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5460
01-31-2012
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Moog Videolarm SM5C8N
Inhaltszusammenfassung für Moog Videolarm SM5C8N
- Seite 1 © 2011, Moog Videolarm, Inc. All Rights Reserved S M 5 C 8 N a n d S M 5 C F 8 N PoE Ready™ Compact Vandal-Resistant Surface Mount Dome-5” www.videolarm.com Installation and Operation Instructions for the following models: SM5C8N Outdoor 5” PoE surface mount housing for small PTZ camera, conduit input from the...
-
Seite 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Seite 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Seite 4: Electrical Specifications
Electrical Specifications Contents of Box Power POE 56V SM5C8N SM5CF8N Input Power: 100 to 240VAC (Midspan) Power: 0.8A Frequency: 50 to 60 HZ output Camera: POE (55VDC) Heater: 56VDC (max. 20W) English (1) Mounting Plate Energía de entrada: 100 a 240VAC (Midspan) Energía: 0.8A... - Seite 5 For Surface Mounting Using Side Conduit Entrance PACKETS (1) Mounting Plate (1) 1/4 x 20 Bolt (1) 1/4 Flat Washer (1) 1/4 Lock Washer (4) M3 6mm Bolt (4) M3 Lock Washers (7) 8 x 32 x 3/8" bolts (2) 8 x 32 Nuts (2) 94-FSCT01 Fixed Etch knockout slightly with utility knife.
- Seite 6 For Surface Mounting Using Side Conduit Entrance Continued For Surface Mount Applications WARNING: Ensure drill is level to avoid damage to the circuit board Mount securely to ceiling or mounting Drill out (3) mounting holes as shown for # 10 surface using the appropriate hardware hardware (not supplied) •...
- Seite 7 For Pendant Or Wall Mount Applications For Pendant Or Wall Mount Applications Seal pipe threads with teflon tape supplied Thread housing to optional pendent pipe with outdoor housings. or wall mount bracket • Hilos de rosca de pipa del sello con la cinta del Teflon •...
- Seite 8 Arecont AV1315 / AV2815 / AV2805 / AV10005 Camera REMOVE Remove center section from fixed camera bracket. Attach to mounting plate with hardware provided. Secure and complete wiring connections. • Quite la sección de centro del soporte fijo de la cámara. Ate a la pletina con el hardware proporcionado. Asegure y termine las conexiones del cableado.
- Seite 9 Axis 212 PTZ Camera ½" 2" Remove center section from fixed camera bracket. Attach to mounting plate with hardware provided. Secure and complete wiring connections. • Quite la sección de centro del soporte fijo de la cámara. Ate a la pletina con el hardware proporcionado. Asegure y termine las conexiones del cableado.
- Seite 10 Panasonic BB-HCM381 / KX-HCM280A Camera Use this hole ½" pattern Secure camera quick release Install (4) .5” spacers to Tighten hardware and plate to mounting plate with center bosses. complete wiring. #8 hardware provided. • Placa segura del lanzamiento rápido de la •...
- Seite 11 Panasonic WV-NF284 / WV-NF302 Camera 1" Secure camera quick release Install (4) 1” spacer to Secure camera safety screw. mounting plate with #8 center bosses. hardware provided. • Pletina segura del lanzamiento rápido de la • Instale (4) 1” espaciador para centrar los •...
- Seite 12 Toshiba IKWB21A Camera ½" 1" Secure camera quick release Tighten hardware and 1” spacers + (4) .5” spacers mounting plate with ¼” hardware complete wiring. (4) corner bosses. provided. • 1” espaciadores + (4) jefes de la esquina de • Pletina segura del lanzamiento rápido de la cámara •...
- Seite 13 To maximize power for heater hold reset 1 sec. then release. “HEAT” LED TURNS OFF. To return setting to factory default, Reset hold reset 5 sec. then release. “HINT” LED will then turn ON. • Para maximizar la energía para el calentador celebre el reajuste 1 sec.
-
Seite 14: Replacement Parts List
Secure Dome Assembly to housing Clean dome with MILD soap and water ONLY • Asegure la asamblea de la bóveda a la cubierta • Limpie la bóveda con el jabón y agua SUAVES SOLAMENTE • Fixez l'Assemblée de dôme au logement •... - Seite 15 Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
