5 CONNECT TO SUBWOOFER
Use the subwoofer connection cable, connecting one end to the "SUB OUT" port on the Soundbar and the other end to
the port on the back of the subwoofer.

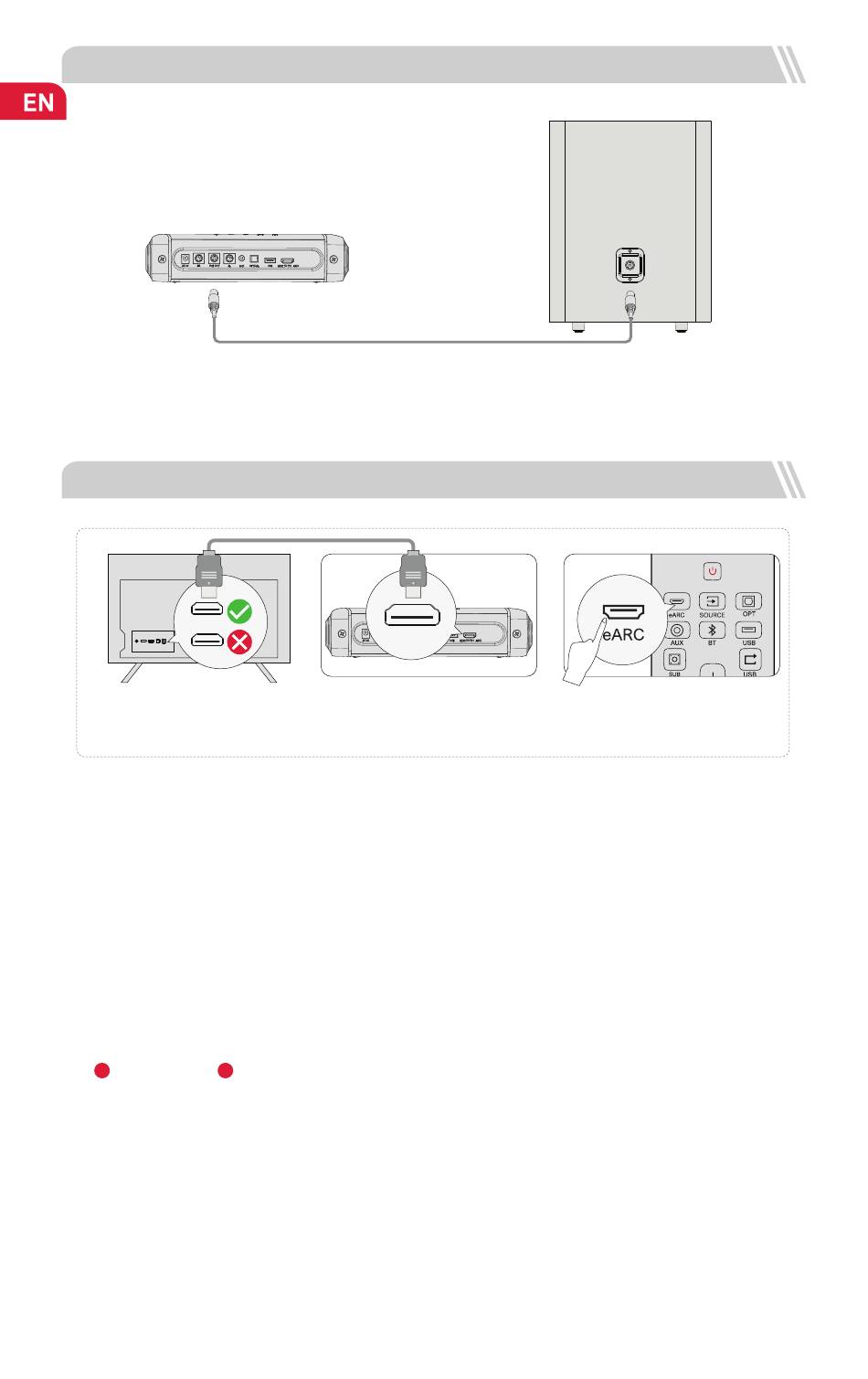

6 CONNECT TO TV VIA HDMI OUT eARC / ARC
eARC / ARC
HDMI
Step 1:
Connect one end of the HDMI cable to
the eARC / ARC port on the back of
your TV.
Note:
Make sure your TV HDMI supports eARC, otherwise the Dolby Atmos audio signal cannot be transmitted.
Atmos: If you are watching a movie in the Dolby Atmos format, please set the audio output on your TV to Pass Through:
TV Settings > Home > Settings > Sound > Digital Audio Output > Pass Through
DTS: If you are watching a movie in the DTS format, please set the audio output on your TV to PCM：
TV Settings > Home > Settings > Sound > Digital Audio Output > PCM
What's the difference between: HDMI IN, HDMI ARC, HDMI eARC?
HDMI IN is a standard HDMI input that allows you to connect devices to your TV or audio system. It supports audio and video
signals, but it does not support audio return channel (ARC) or enhanced audio return channel (eARC) functionality.
HDMI ARC is a special HDMI port that supports two-way communication between your TV and audio system. This means that
audio can be sent from your TV to your audio system, and audio system can send audio back to your TV.
HDMI eARC (Enhanced Audio Return Channel) is an updated version of HDMI ARC that supports higher quality audio formats
such as Dolby Atmos and DTS:X.
Note: Please turn on the "CEC" function on your TV.
When eARC / ARC is connected, your TV remote control can control the soundbar and TV simultaneously:
Turn on / off
1 2
04
e
eARC
Step 2:
Then connect the other end into the
eARC port of the soundbar.
Adjust the volume
e
Step 3:
Press "eARC"button on the remote
control to select "eARC" input.
