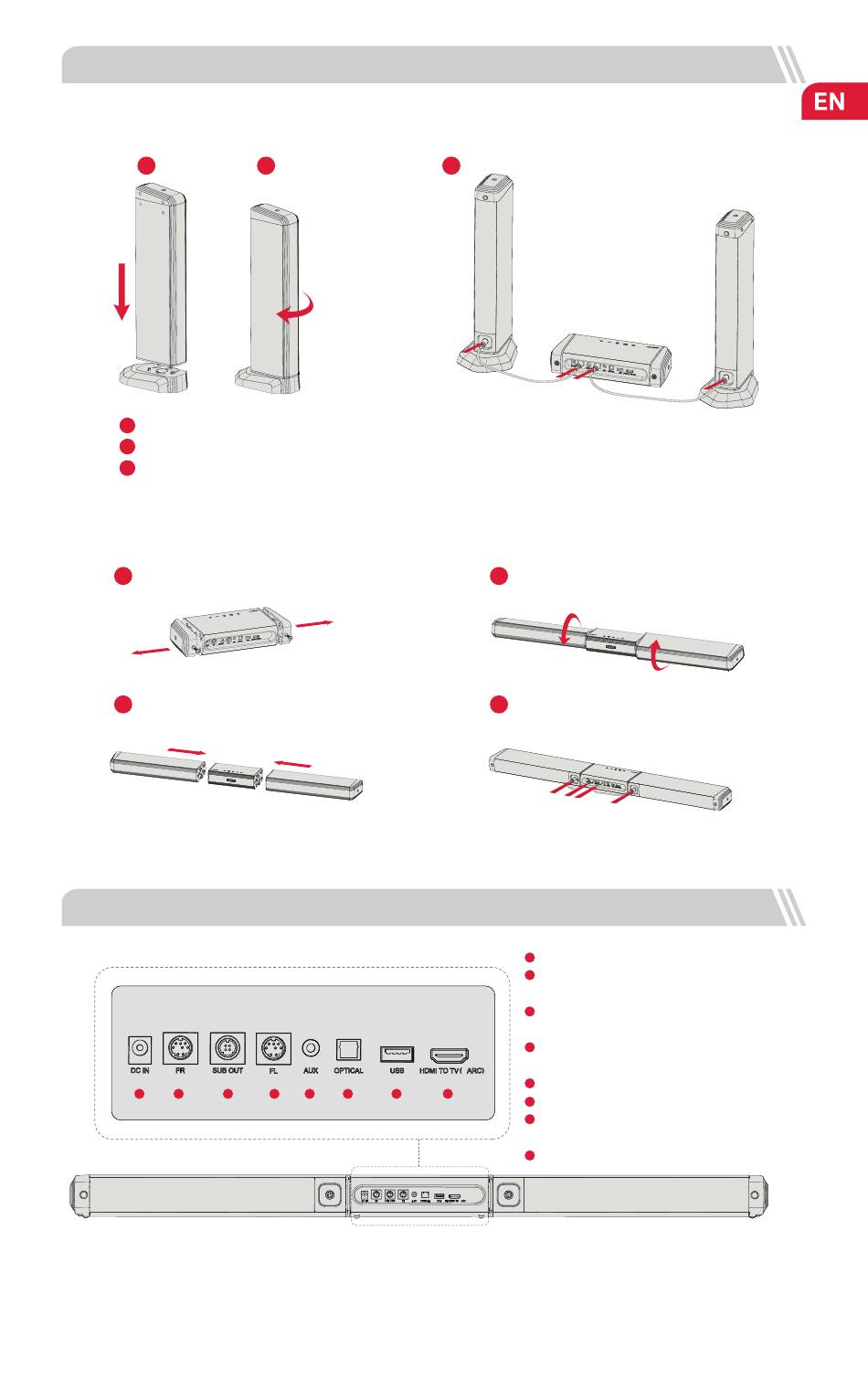

3 SOUNDBAR INSTALLATION
Detached and stand on base:
1
1
Set the soundbar on the base and align the joints.
2
Twist to connect with the base.
3
Plug in the 7-pin Cable (The longer two) for Soundbar Connection.
Horizontal placement
1
Remove the covers on both sides of the host.
2
Align the joints of the three parts.
Note: When connecting the cable, the red terminal is plugged into the red port and the white terminal is plugged
into the white port.

4 REAR PANEL

1 2 3
2
4 5 6 7
3
3
Twist to connect.
4
Plug in the 7-pin Cable (The shorter two) for
Soundbar Connection.
DC IN
1
FR: FRONT RIGHT
2
Used to connect the auxiliary machine on the right
SUB OUT
3
Connect to active subwoofer（Not Included）
FL: FRONT LEFT
4
Used to connect the auxiliary machine on the left
e
AUX
5
8
OPTICAL
6
USB
7
Support MP3 file with 128G max memory
HDMI TO TV(eARC)
8
e
03
