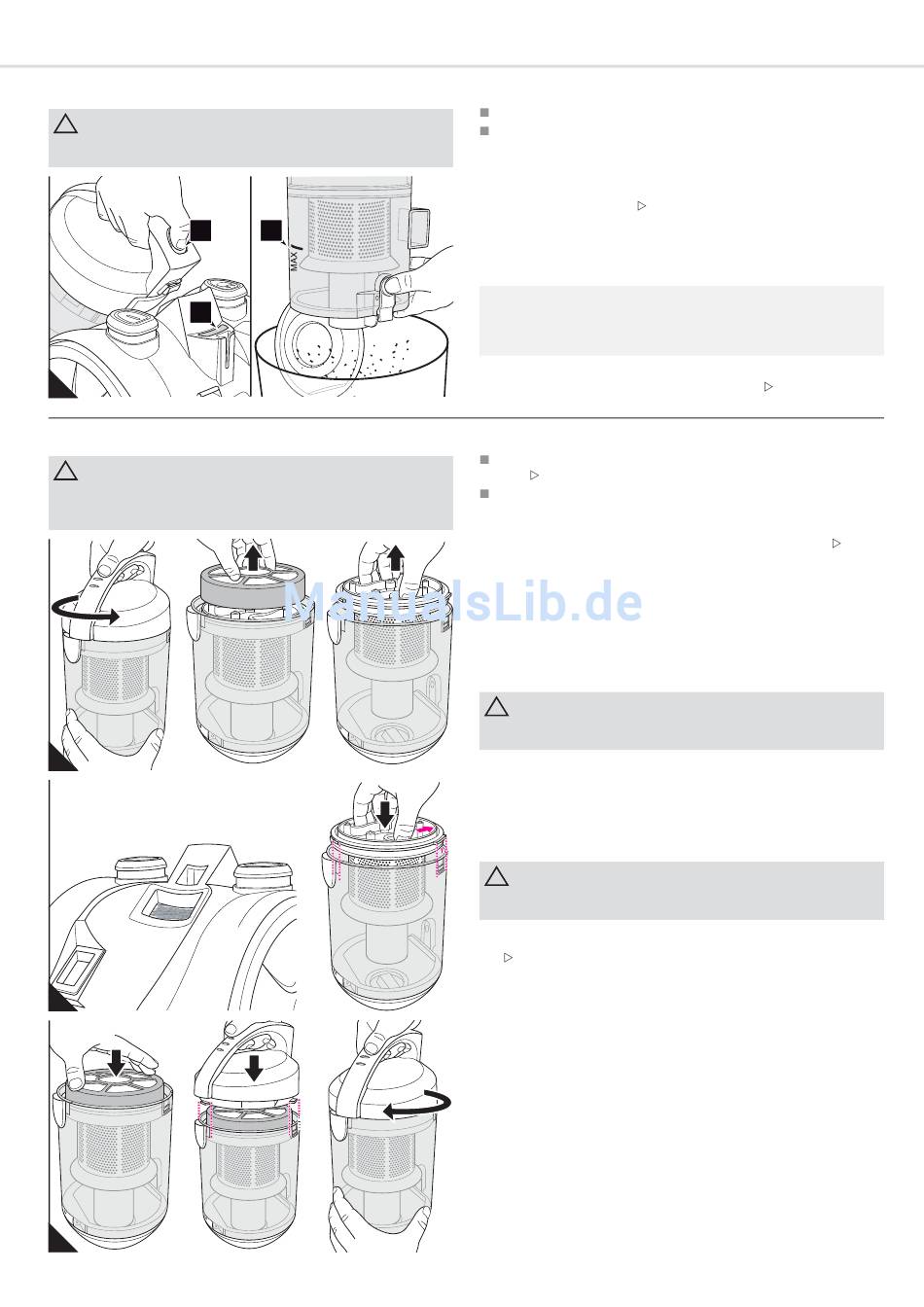

5 Maintenance

5.1 Emptying the dust bin module

5 Maintenance
ATTENTION:
Switch off the appliance before emptying the dust bin. This will prevent
dust from damaging the appliance.
2
1
8

5.2 Cleaning dust bin and motor protection filter

ATTENTION:
The dust bin and the filter elements are washable, but may not be
cleaned in dishwashers or washing-machines. Also, do not use deter-
gents or brushes with hard bristles to clean them.
A B
9
A
10
A B
11
18
A B
1
C
B
C
It is best to empty the dust bin module after each vacuuming session.
Empty the dust bin at the latest:
- if the cleaning indicator (Fig. 8/A1) lights up,
- the "MAX" marking (Fig. 8/B1) has been reached; or
- before prolonged storage or dispatch.
1. Switch off the appliance,
chapter 4.3, „Switching off".
2. Press the release catch for the dust bin (Fig. 8/A2) and remove the dust
bin from its bracket.
3. Empty the dust bin by holding it low over a dustbin and only then press
the release button (Fig. 8/B).
NOTE:
You can dispose of the contents of the dust bin with your regular domes-
tic waste as long as it does not contain any substances not permitted in
domestic waste.
4. If the dust bin can no longer be completely cleaned by simply opening
the bottom, the cyclone unit has to be removed,
ing dust bin and motor protection filter".
It is best to check the motor protection filter each time you empty the
dust bin, chapter 5.1, „Emptying the dust bin module".
Clean the motor protection filter at the latest when the cleaning indica-
tor (Fig. 8/A1) lights up.
1. Switch off the appliance, remove the dust bin and empty it,
5.1, „Emptying the dust bin module".
2. Release the dust bin cover by firmly turning it in the direction of the ar-
row (Fig. 9/A). Remove it from the dust bin.
3. Pull the dual motor protection filter up and out of the dust bin (Fig. 9/B).
4. Remove the cyclone unit from the dust bin in an upward motion (Fig. 9/
C).
5. Remove any residual dust still clinging to the dust bin and cyclone unit
using a dry cloth or a soft brush, e.g. the supplied furniture brush.
ATTENTION:
Refrain from cleaning the cyclone unit with water. Otherwise, adhering
dirt particles may clog the cyclone unit.
6. Hold the dual motor protection filter low over a dustbin. Separate the fil-
ter elements from one another. Remove larger agglomerations of dirt
by hand.
7. Remove the small motor protection filter from its bracket (Fig. 10/A).
8. If the 3 motor protection filter elements are still dirty, thoroughly rinse
them by hand until all dirt is removed.
ATTENTION:
Let the filters dry for approx. 24 hours at room temperature after clean-
ing. Only put them back into the appliance when they are completely dry.
9. If one of the filter elements is damaged, replace it with a new one
( chapter 5.4, „Spare parts and accessories").
10. Put the small motor protection filter back into its bracket (Fig. 10/A).
11. Put the cyclone unit back into the dust bin (Fig. 10/B). Take care that
the two wide tabs and the narrow tab engage in the wide grooves and
the small groove, respectively.
12. Reassemble the dual motor protection filter and put it back onto the cy-
clone unit (Fig. 11/A).
13. Put the dust bin cover back on (Fig. 11/B). Take care that the two wide
tabs and the narrow tab engage in the wide grooves and the small
groove, respectively.
14. Lock the cover by turning it firmly in the direction of the arrow (Fig. 11/
C) until it audibly clicks into place.
chapter 5.2, „Clean-
chapter
