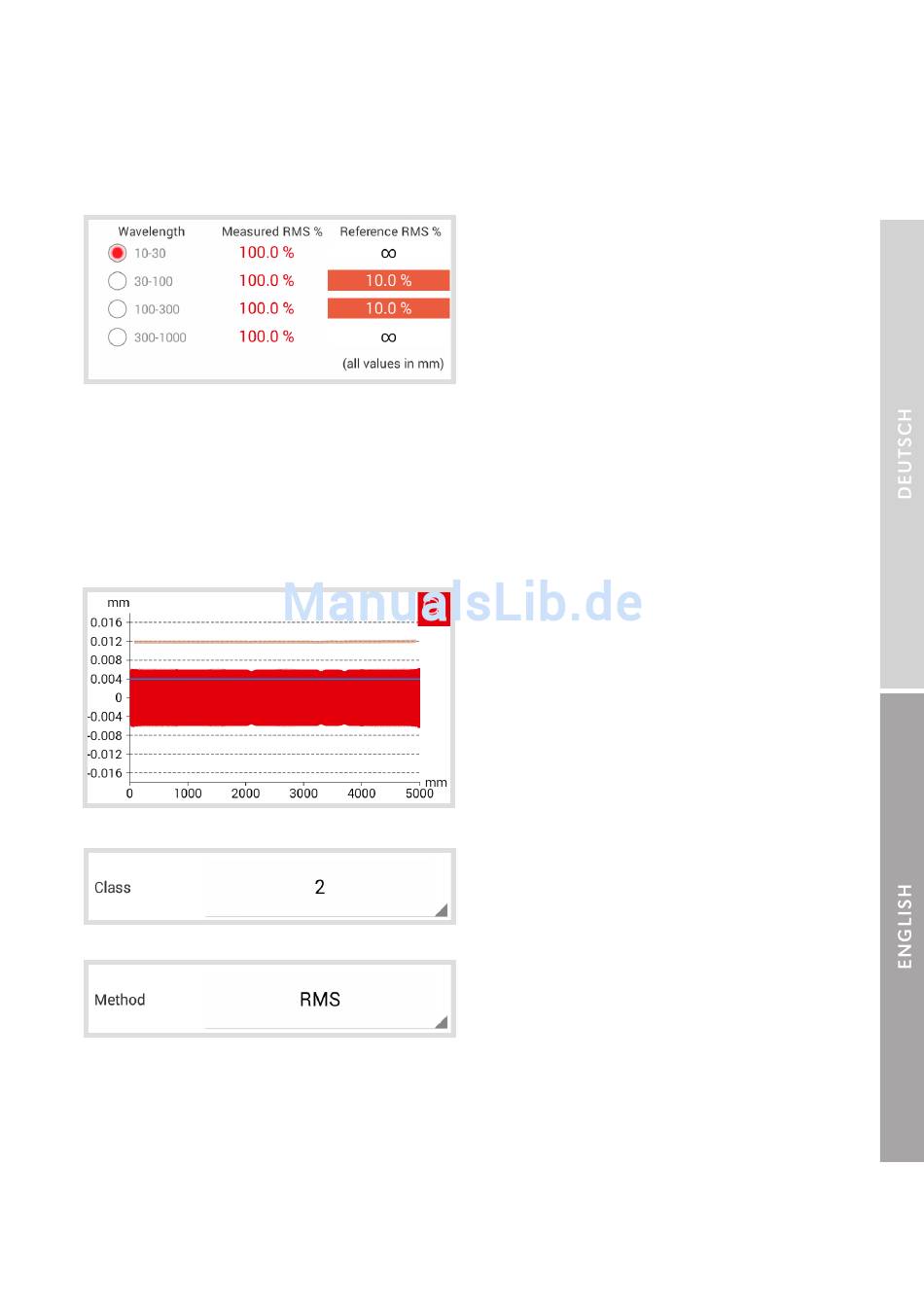

Measurement diagram EN 13231-3
The screen area wavelength shows the
measurement results in different wavelength
ranges of the measurement.
Orange Quality value for the peak to peak
analysis in the respective
wavelength range exceeded
Filter measurement results
1. Press option fields to filter the display
of the measurement results acc. to
different wavelength ranges.
The display of the measurement graph(s)
is adjusted in the measurement diagram.
The measurement diagram shows the measurement
graph, results and limit values for the measurement.
Red Running surface measurement, filtered
acc. to the EN 13231-3standard
Blue Limit value for the EN 13231-3 evaluation
Orange
Quality value of the EN 13231-3 evaluation
Press the Class select list and select the
1.
corresponding class of the running surface.
Press the Method select list and select the
2.
corresponding method for the analysis.
