14 electrolux

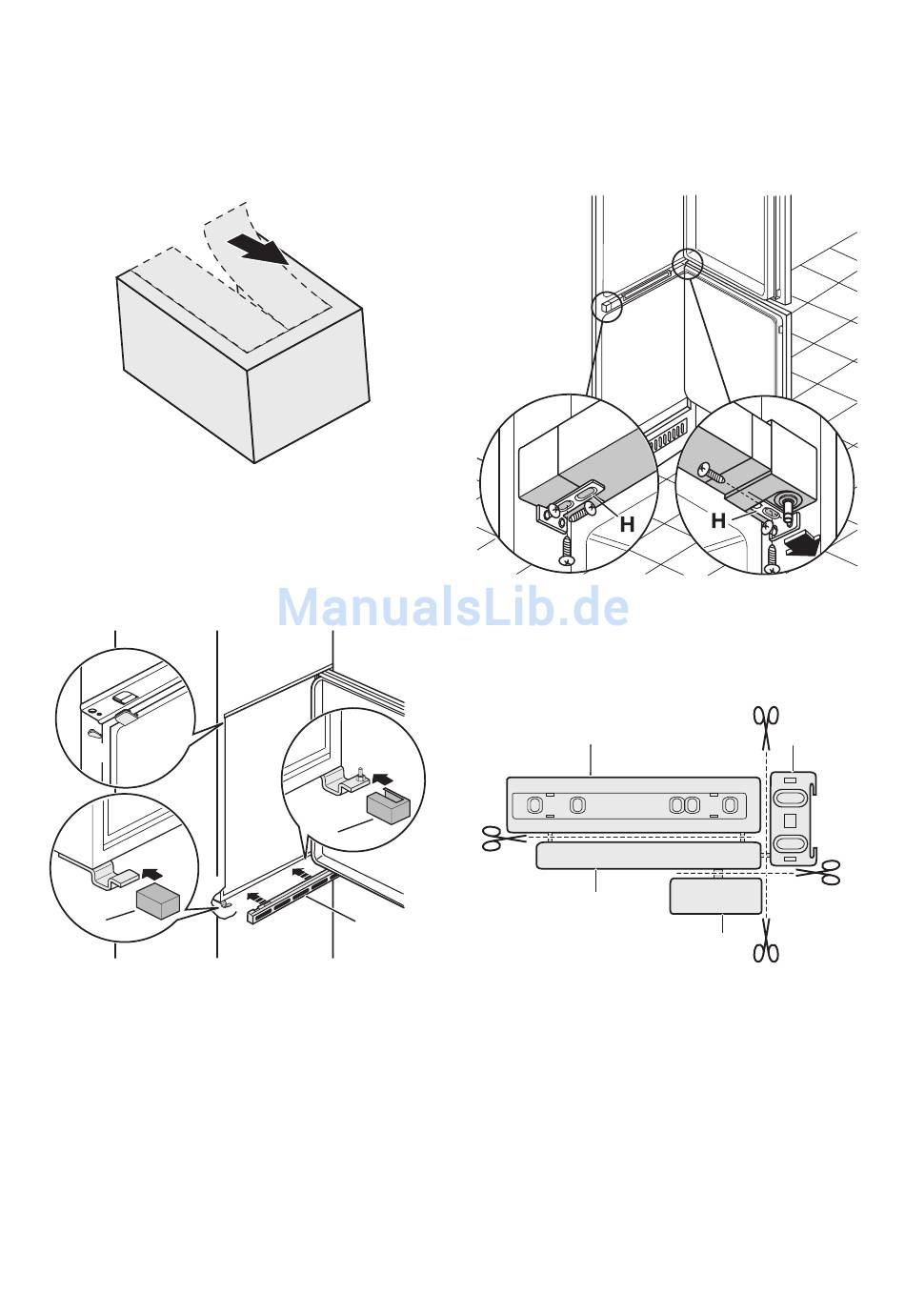

6. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in op-
posite case.
7. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the
hinge.
C
D
E
8. If the appliance must connect laterally
9. Disconnect the parts Ha, Hb, Hc and
E
B
to the kitchen furniture door:
a) Slacken the screws in fixing brack-
ets (H).
b) Move the brackets (H).
c) Retighten the screws.
Hd
Ha
Hc
Hb
Hd
