AquaForte O-Plus Vario Bedienungsanleitung

Manual AquaForte O-Plus Vario
O-Plus Vario 10.000, O-Plus Vario 20.000
AquaForte pumps are carefully inspected and tested to ensure both safety and operating per-
formance. However, failure to follow the instructions and warnings in this manual may result in
pump's damage and/or serious injury. Be sure to read and save this manual for future reference .

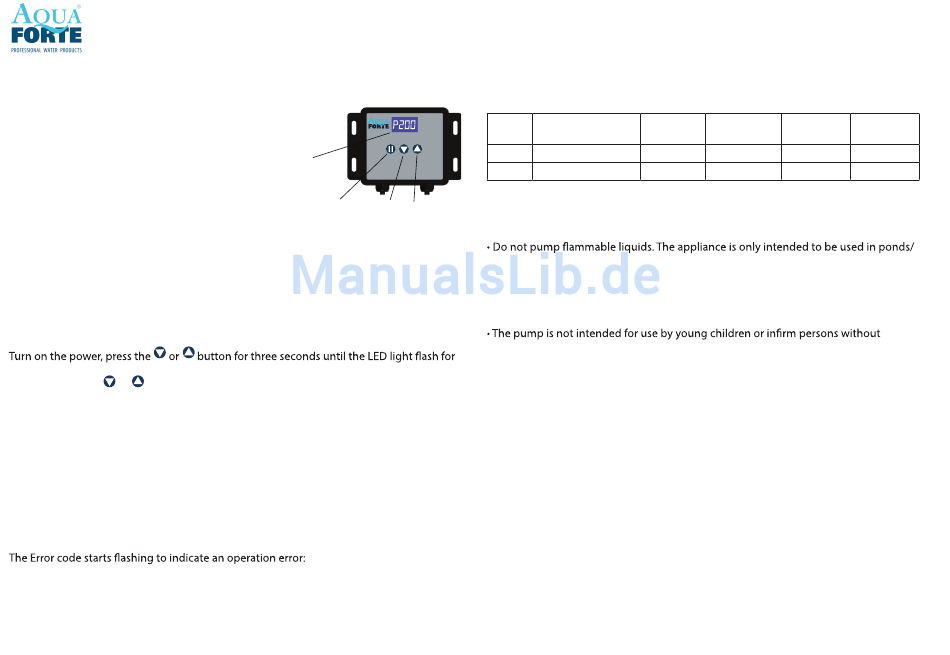

Control and Panel Function:
1. LED display and controller key instructions
LED display indicates power, start/stop and fault
code. The 3 touch control buttons are used for
start/stop, slower, faster.
2. Operating instructions
After connected with pump, the controller will go to the last selected opersation, panel is
shown on LED. Touch the start/stop button, the pump will stop working, the display shows
"_OFF". Touch the start/stop button again, the pump will resume working. Led shows nor-
mal display "PXXX" where "P" is short for Power, XXX stands for the wattage. You can change
the speed of the pump from 30% to 100% ("F030" to "F100" where F stands for Flow) .
After one second the display goes back to the PXXX display to show the wattage the pump
consumes in this selected speed.
3. Key Lock Function
two times, the controller is now locked.
Similarly, press the or button for three seconds again, the LED indicator light ashes
for two times, the controller is unlocked again.
4. Screen saver mode
Turn on the power, and do not touch any touch control button for more than 25 seconds,
the LED changes to micro bright, the controller goes in screen saver mode; the display
returns to normal when you press any button.
5. Data memory function
The memory function ensures that the pump goes back to the last selected speed.
6. Error code and description
Er01: Abnormal Working current;
Er02: Controller overheating;
Er03: Pump idling;
Er04: The impeller stops running;
EN
WATT
PROFE SSIONAL POND PRODUC TS
LED display O-Plus Vario
PUMP CONTROLLER
start/stop slower faster
Er05: Abnormal Working voltage.
Do not place the pump deeper than 1.5 meters under water.
Note: for outdoor use, the power socket must be installed with the leakage current protect-
ing device, and the leakage current shall not exceed 30mA.
Performance parameter table:
Model Voltage Controller
(W)
10 000 AC220-240V 50/60Hz 100
20 000 AC220-240V 50/60Hz 200
Warning:
• Do not connect to any voltage other than that shown on the rating label of the pump.
aquarium.
• The maximum operation depth is 1.5m.
• Do not use with water above 35°C
• The supply cord cannot be replaced. If the cord is damaged the appliance should be
scrapped.
supervision.
• To protect against the risk of electrical shock, do not immerse the plug in water or other
liquid.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
Caution:
Always disconnect from electrical outlet before cleaning, maintenance and handling the
pump. Don't operate without water. Do not lift the pump by holding the power cord.
Do not use the pump in liquids having a temperature exceeding 35°C. Use the pump only
in freshwater. Please use the pump only when it is completely submerged in water.
Do not use the pump in swimming pools!
Installation:
The pump is only suited for wet applications. Use without water (dry running) will result
in irreparable damage. Under water, the pump must take in as clear as possible water.
Consumption Flow Max. Head
(W) (m³/h) (M)
15-85 4 - 9 5.0
34-187 9 - 20 7.0
