ZEITRAUM KIN LONG Aufbauanleitung Seite 2

KIN LONG
Assembly instruction 06/ 2025
TOOLS:
Allen screw SW 5 (enclosed)
XS bolts
boxes
grub screws

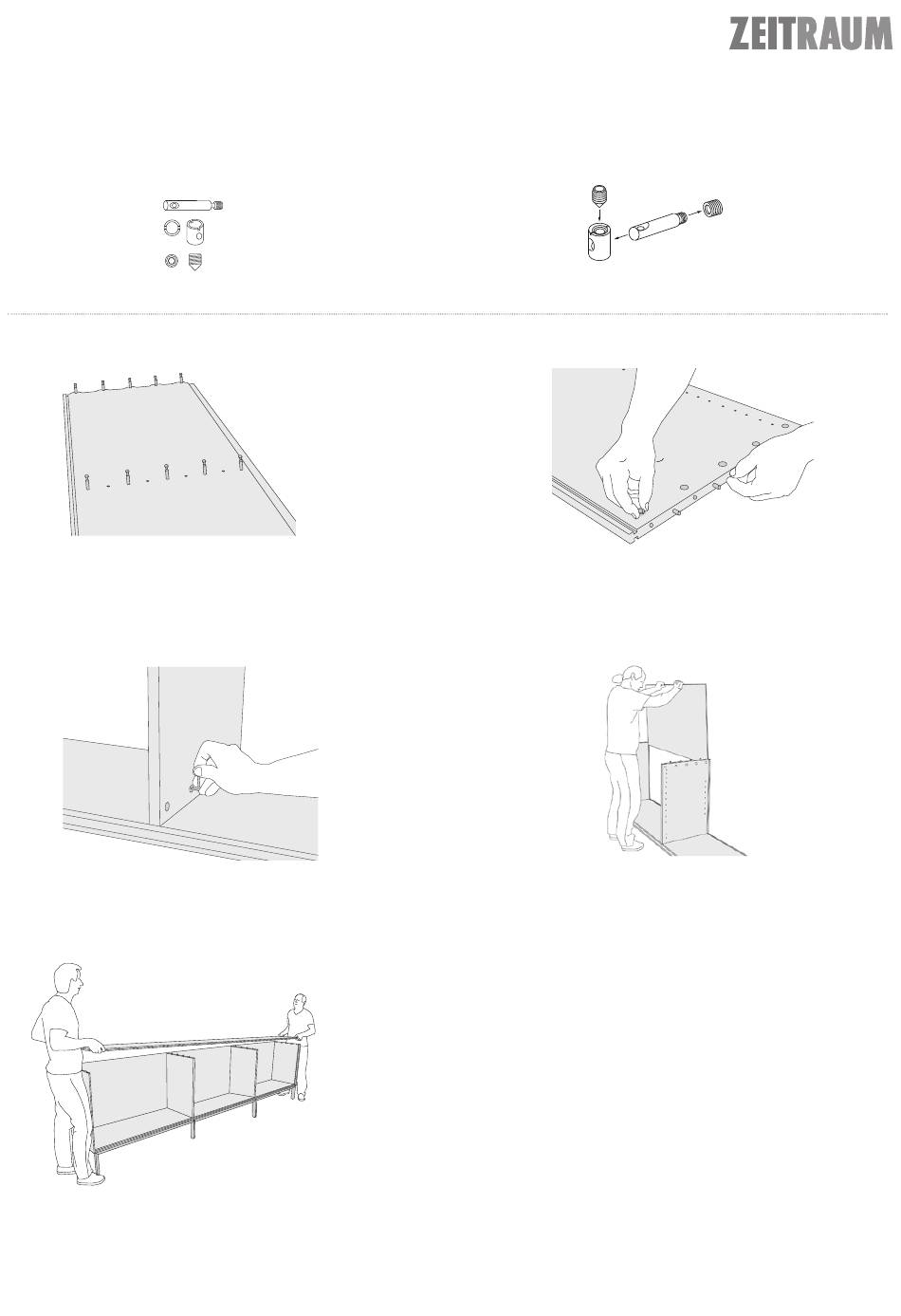

1. First mount KIN BASE. Afterwards screw the
XS bolts into the holes provided at the bottom board.
3. Place the side pieces onto the XS bolts in the bottom
board and fix the side pieces with the grub srews.
5. Screw the XS bolts into the holes provided at the top board.
Starting on one side, put the top board onto the sidepieces and fix
them with the grub srews.
ZEITRAUM GmbH Äußere Münchner Straße 2
•
D-82515 Wolfratshausen Tel + 49 (0) 8171 – 418130
• •
video:
http://www.scheulenburg-direkt.de/index.php?page=content&coID=11
2. Put the boxes into the side pieces with the slots of
the boxes in direction to the XS bolts (as on the drawing
above).
4. Slide the rear panels in.
6 Wall mounting is required for the
version with drawers!
Please follow the steps on the enclosed
instructions for Anti-tip device.
