1. PANEL & REMOTE CONTROL DESCRIPTION
1.2

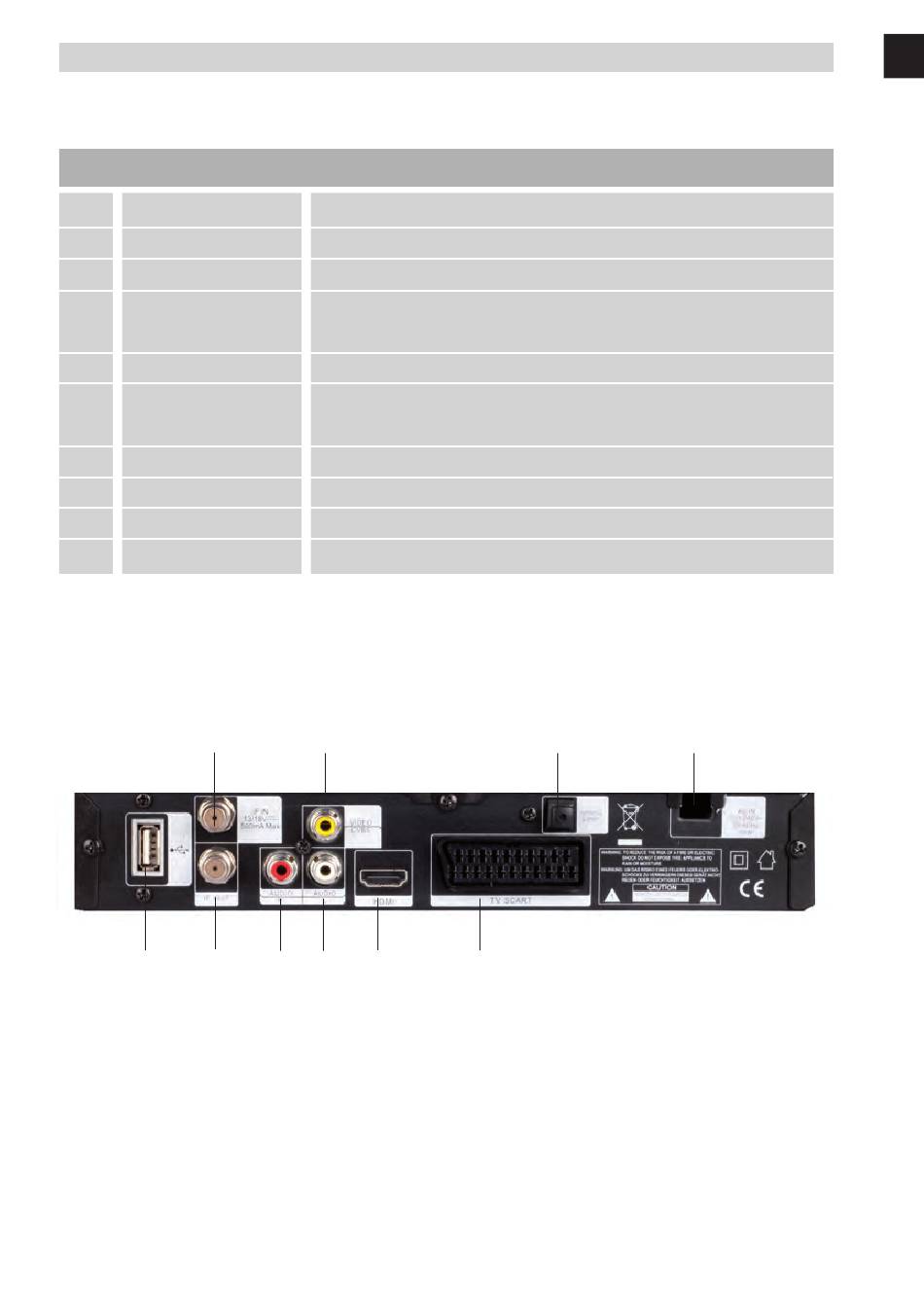

Rear Panel Description

Nr. Taste
1 IF OUT
2 LNB IN
3 TV (output)
4 220–240 V ~
50/60 Hz, 25 W
5 HDMI
6 VIDEO
7 OPTISCH/SPDIF
8 AUDIO R
9 AUDIO L
10 USB
2
1
10
Erklärung
LNB connection for a second satellite receiver
LNB connection
SCART connection for TV
Mains connection
Connection for digital transmission of audio and
video signals
CVBS Video cinch (RCA) connection
Optical digital output
Stereo audio Cinch (RCA) connection, right
Stereo audio Cinch (RCA) connection, left
USB 2.0
6
5
8 9
5
7
3
4
DVB-S Receiver
GB
