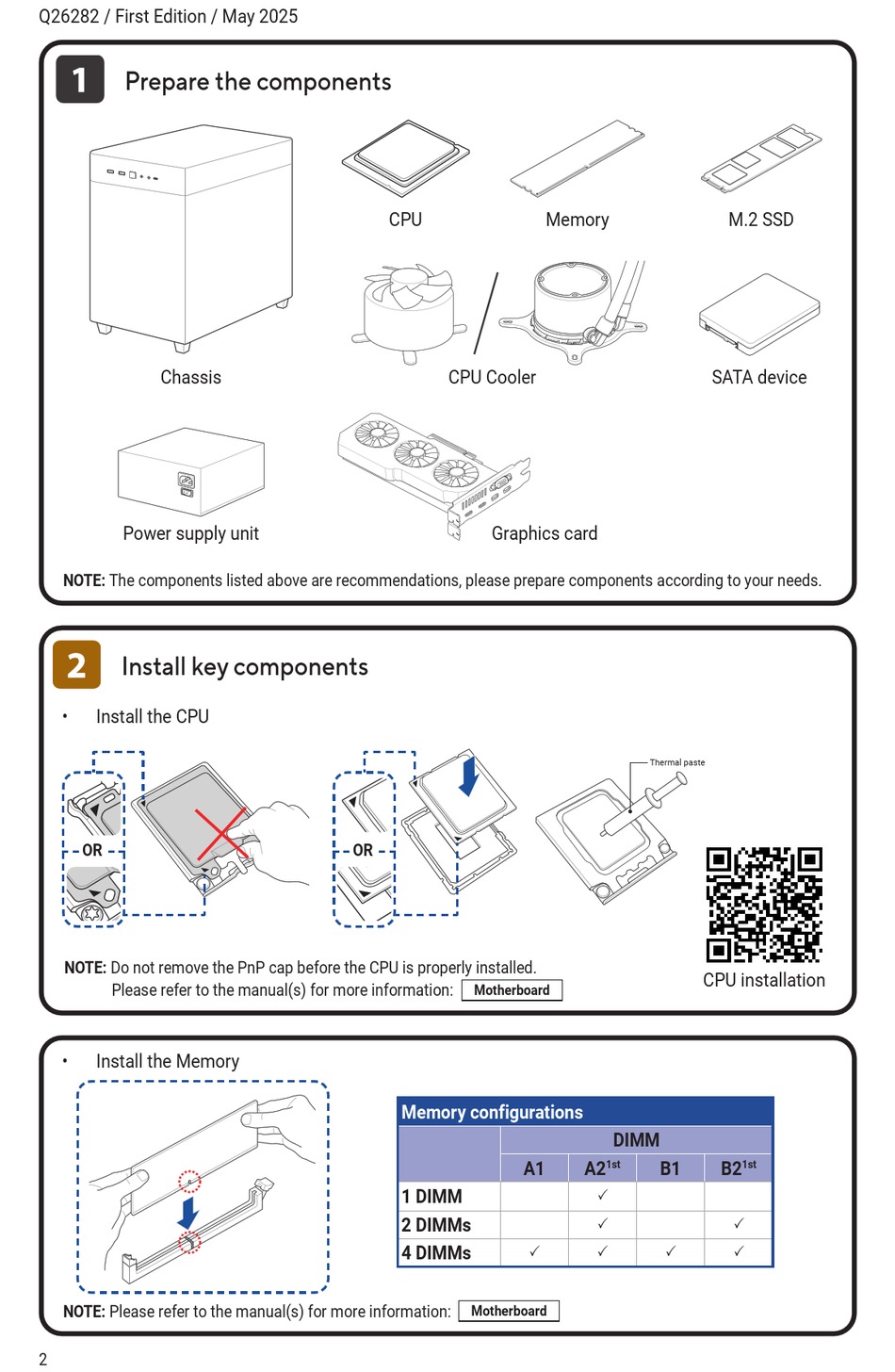

Q26282 / First Edition / May 2025
Prepare the components
Chassis
Power supply unit
NOTE: The components listed above are recommendations, please prepare components according to your needs.
Install key components
• Install the CPU
OR
NOTE: Do not remove the PnP cap before the CPU is properly installed.
Please refer to the manual(s) for more information:
• Install the Memory
NOTE: Please refer to the manual(s) for more information:
2
CPU
CPU Cooler
Graphics card
OR
Motherboard
Memory configurations
1 DIMM
2 DIMMs
4 DIMMs
Motherboard
Memory
Thermal paste
DIMM
A1 A2 B1
1st
P
P
P P P
M.2 SSD
SATA device
CPU installation
B2
1st
P
P
