B.TO LOWER A LOAD
IMPORTANT: The jack must be loaded with a minimum 50kg(110lbs)tc lower step by step,otherwise
the lifting nose will drop.
Taking all necessary precautions,take the load with the jack,(i.e.jack the load up slightly),and ensuring
the handle is in the FULLY UPRIGHT position, trip the Reversing Latch(20),so that it is in the
"Down"position,i.e.the indentation on the latch,becomes disengaged from the notch on the
reversing switch(see fig.2).Keeping afirm grip on the handle,pump it as you would for 'raising a
load'.

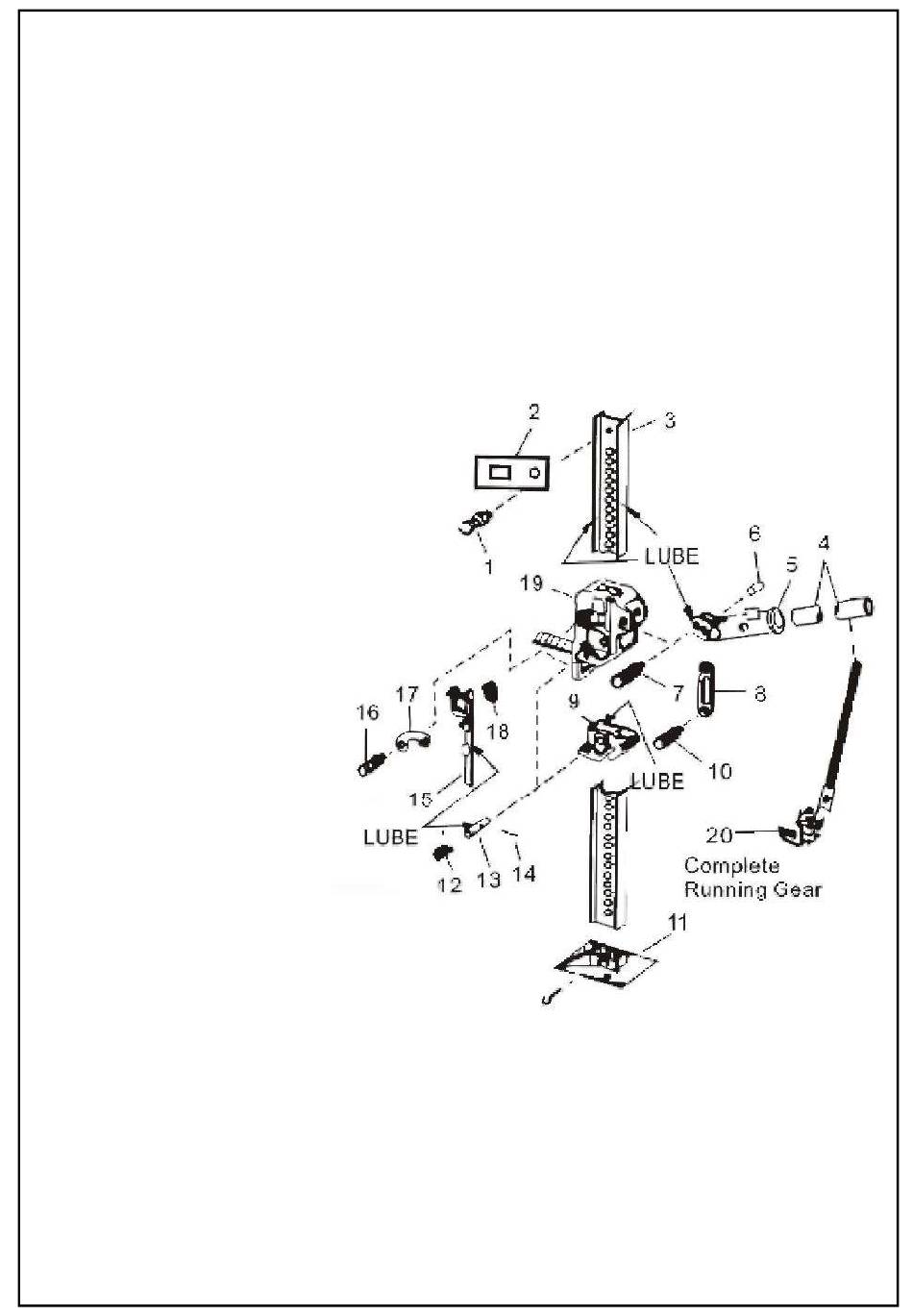

Parts list:

1. Top clamp-clevis bolt
2. Top clamp-clevis
3. Steel standard (bar)
4. Steel handle with cotter pin
5. Handle socket
6. Pin
7. Hex bolt
8. Connecting rod
9. Small runner
10. Srew bolt
11. Base
12. Climbing pin spring (two
required)
13. Climbing pin (two required)
14. Cross pin (two required)
15. Reversing switch cam bar and
spring
16. Cap screw with washer
17. Reversing latch
18. Reversing switch spring
19. Large runner
20. Running gear (assembled)
