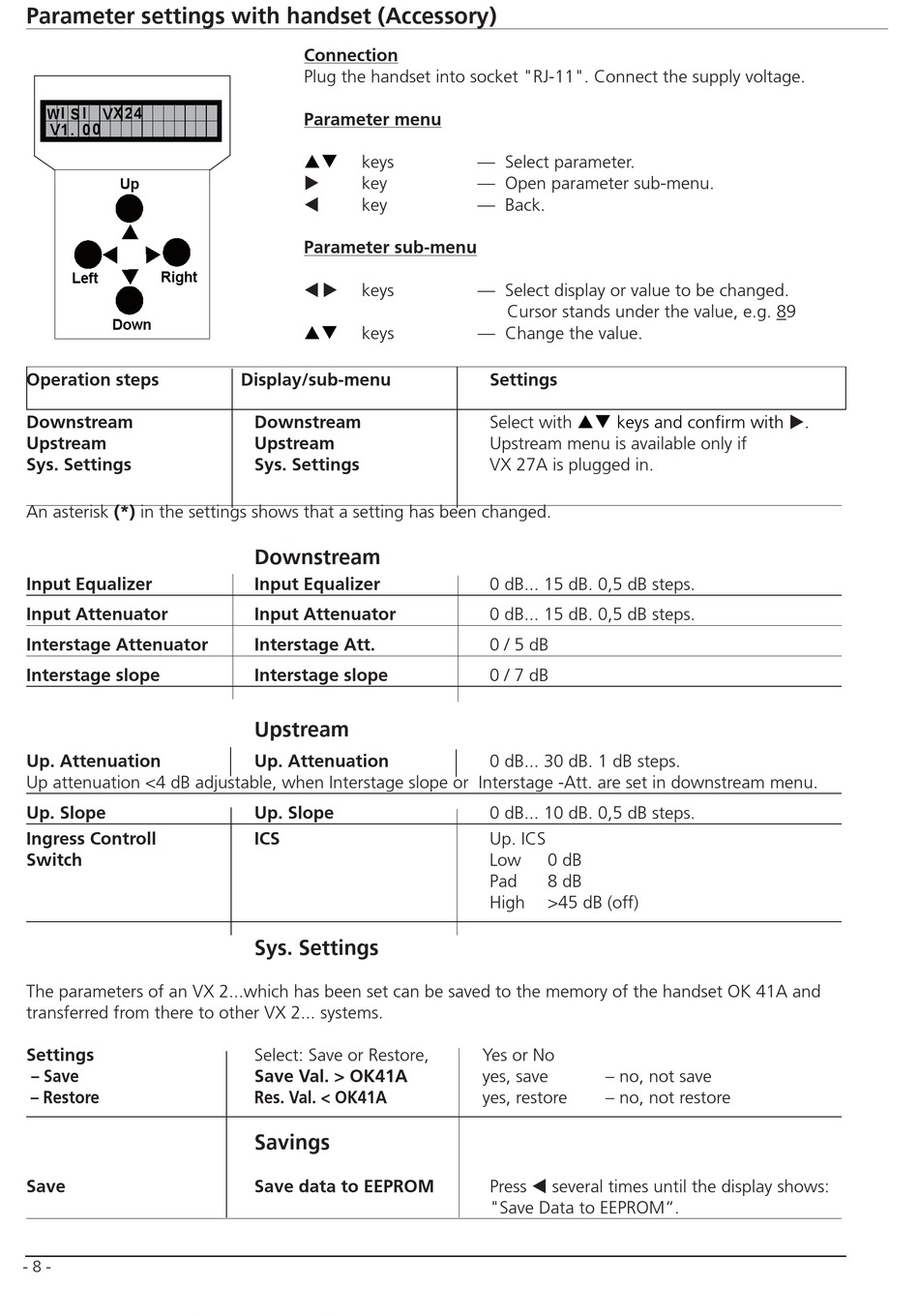

Parameter settings with handset (Accessory)
I S I V X 24
W
1. 0 0
V
Up
Right
Left
Down
Operation steps
Downstream
Upstream
Sys. Settings
An asterisk (*) in the settings shows that a setting has been changed.
Input Equalizer
Input Attenuator
Interstage Attenuator
Interstage slope
Up. Attenuation
Up attenuation <4 dB adjustable, when Interstage slope or Interstage -Att. are set in downstream menu.
Up. Slope
Ingress Controll
Switch
The parameters of an VX 2...which has been set can be saved to the memory of the handset OK 41A and
transferred from there to other VX 2... systems.
Settings
– Save
– Restore
Save
- 8 -
Connection
Plug the handset into socket "RJ-11". Connect the supply voltage.
Parameter menu
keys
key
key
Parameter sub-menu
keys
keys
Display/sub-menu
Downstream
Upstream
Sys. Settings
Downstream
Input Equalizer
Input Attenuator
Interstage Att.
Interstage slope
Upstream
Up. Attenuation
Up. Slope
ICS
Sys. Settings
Select: Save or Restore,
Save Val. > OK41A
Res. Val. < OK41A
Savings
Save data to EEPROM
— Select parameter.
— Open parameter sub-menu.
— Back.
— Select display or value to be changed.
Cursor stands under the value, e.g. 89
— Change the value.
Settings
Select with
keys and confirm with
Upstream menu is available only if
VX 27A is plugged in.
0 dB... 15 dB. 0,5 dB steps.
0 dB... 15 dB. 0,5 dB steps.
0 / 5 dB
0 / 7 dB
0 dB... 30 dB. 1 dB steps.
0 dB... 10 dB. 0,5 dB steps.
Up. ICS
Low
0 dB
Pad
8 dB
High
>45 dB (off)
Yes or No
yes, save
– no, not save
yes, restore
– no, not restore
Press several times until the display shows:
"Save Data to EEPROM".
.
