Use separate wire conduits
Do not run signal or communications wiring and power wiring through the
same wire conduit. To avoid interference, wires with different signal characte-
ristics should be routed separately.
• You can use the type of signal transmitted through a wire to determine
which wires should be kept separate. The rule of thumb is that wiring that
shares similar electrical characteristics can be bundled together.
• You should separate input wiring from output wiring.
• We advise that you label the wiring to all devices in the system.

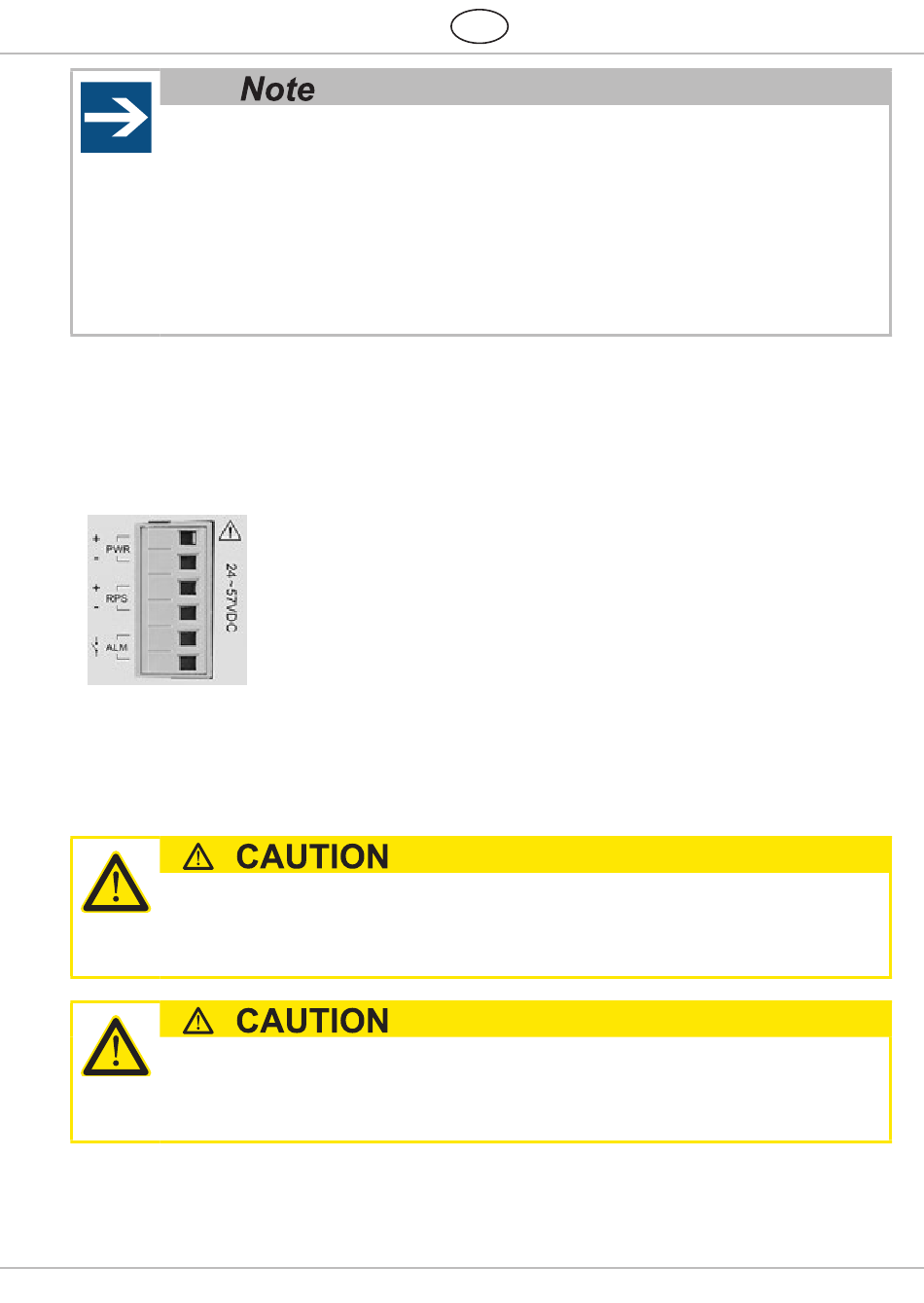

5.1 Female Connector

The female connector serves to connect
• Supply voltage (PWR)
• Redundant supply voltage (RPS) and
• Alarm (ALM).
The following conductors can be inserted directly without tools:
• fine-stranded conductors with insulated ferrule, all cross sections
• fine-stranded conductors with uninsulated ferrule, cross section > 0.5 mm²/AWG 22
• solid conductors, cross section > 0.25 mm²/AWG 24
• Use copper conductors only
• Wiring cable maximum temperature should not exceed 105 ˚C
• Tighten the wire to a torque value 4.5 lb.in.
• The wire gauge for the terminal block should range between 12 ... 18 AWG
• Utilisez uniquement des conducteurs en cuivre
• La température maximale du câble ne doit pas dépasser 105 ˚C
• Serrer le fil à une valeur de couple de 4,5 lb.in.
• Le calibre de fil du bornier doit être compris entre 12 et 18 AWG
