POOL SETUP ( continued )

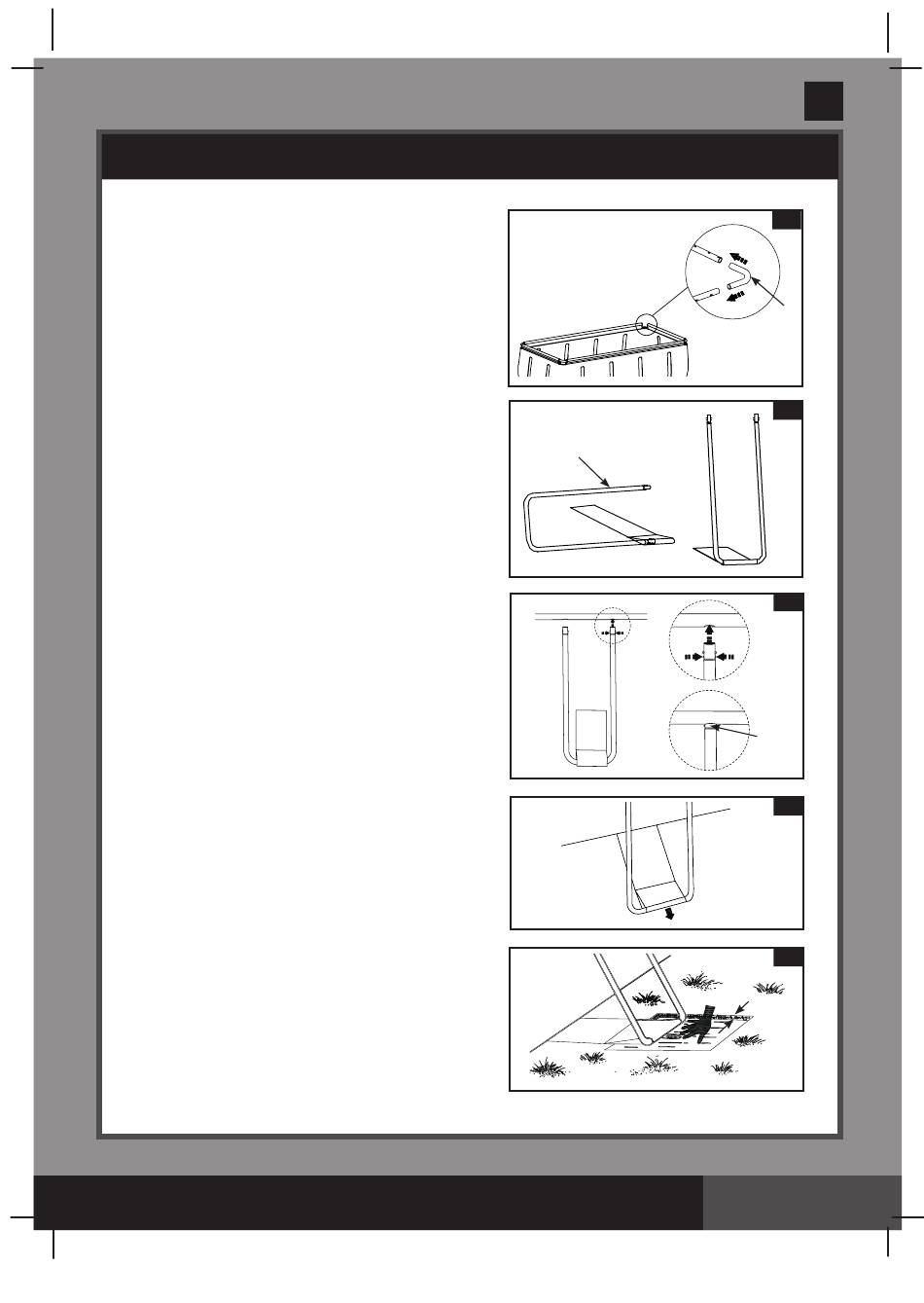

4. Install the corner joints (7) at the 4 corners
(see drawing 4).
IMPORTANT: The four corner joints are designed
to be moveable relative to the horizontal beams
and not fixed to the horizontal beams. This allows
the pool side walls to move inward or outward
when the pool is in use.
5. Pull out all the restrainer straps from under the pool
liner.
6. With one person standing inside or outside of the
pool, raise one corner; insert a U-shaped side support
(10) through the restrainer strap (see drawing 5).
Make sure the U-shaped side support is centered
on the strap.
7. The tops of the U-shaped side supports have a
double button spring loaded clip (9) that is factory
pre-installed. Insert the side supports into the
"A-B-C & D-F" beam holes by squeezing the bottom
button inward with your fingers.
Squeezing this bottom button will allow the support
to enter the beam. Once the U-support is inside the
beam release the finger pressure allowing the support
to "SNAP" into place. Repeat above procedures for all
the U-shaped side supports (see drawing 6).
IMPORTANT: Complete the U-shaped side
supports assembly of the two short sides first,
and then proceed with the long sides.
8. Pull the bottoms of the side supports out away from
the liner to make the straps taut. Repeat for all
locations (see drawing 7).
9. If the ground is not concrete (asphalt, lawn or earth)
you must place a piece of pressure-treated wood,
size 15" x 15" x 1.2", under each leg and set flush
with the ground. The U-shaped side supports must
be placed in the center of the pressure-treated wood
and with the wood grain perpendicular to the support
leg (see drawing 8).
NOTE: Make sure each support pad is recessed
and set flush with the ground and not just placed
on the ground. Do not use support pads or slabs
with slippery, smooth surfaces as the U-shaped
side support will slide outward causing damage
to the pool and void the warranty.
SAVE THESE INSTRUCTIONS
