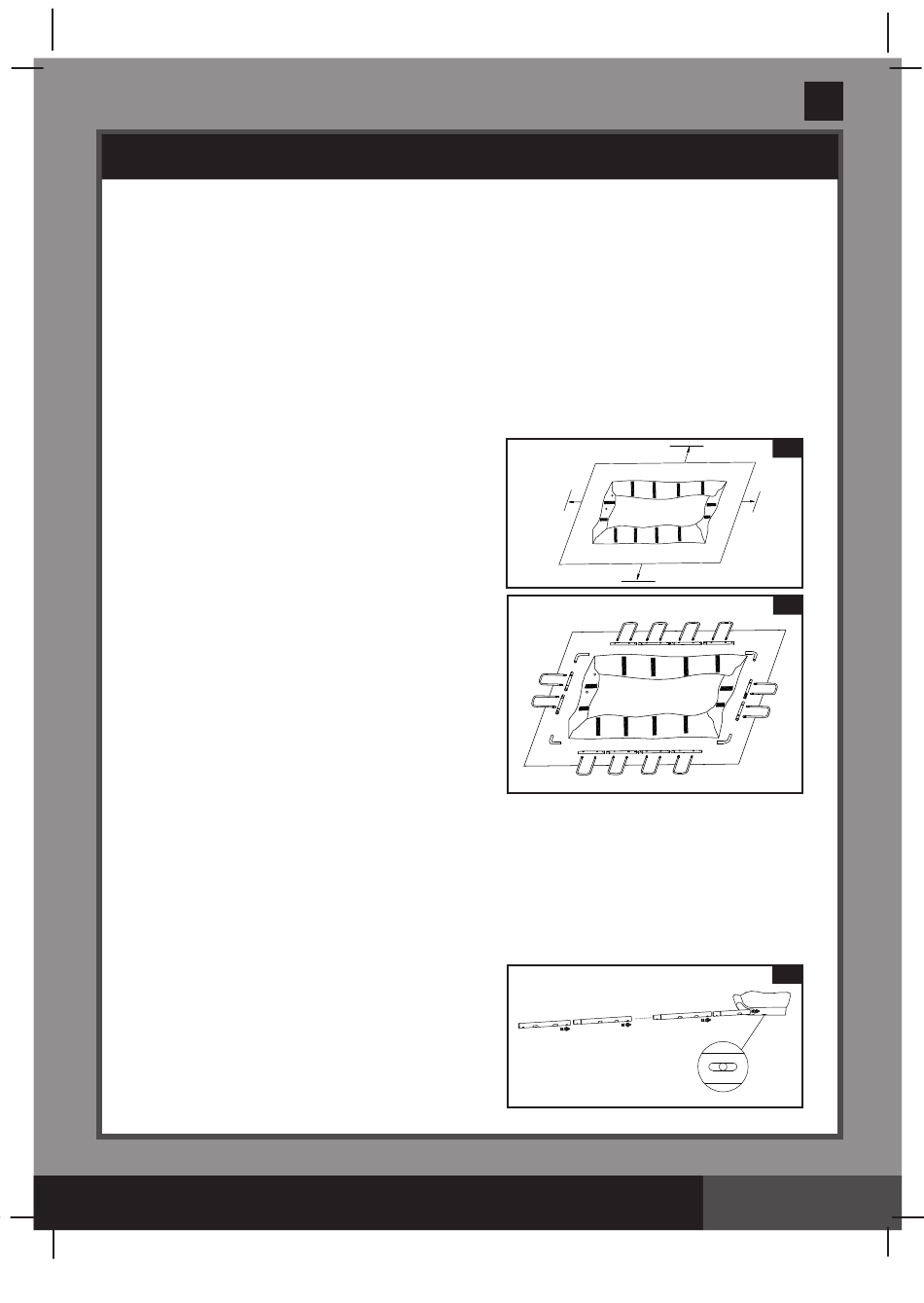

POOL SETUP ( continued )
You may have purchased this pool with the Intex Krystal Clear
own separate set of installation instructions. First assemble your pool unit and then set up the
filter pump.
Estimated assembly time 60~90 minutes. (Note the assembly time is only approximate and
individual assembly experience may vary.)
1. • Find a flat, level location that is free and clear of stones, branches or other sharp objects that may
puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be used to
store the pool during the winter months or when not in use.
• Remove the ground cloth (11) from carton. Spread
it out completely with its edges being at least
5 - 6' (1.5 - 2.0 m) from any obstacle such as walls,
fences, trees, etc. Remove the liner (12) from carton
and spread it out over the ground cloth with the drain
valve towards the draining area. Place the drain valve
away from the house. Open it up to warm it in the
sun. This warming will make installation easier. Make
sure the liner is centered atop the ground cloth. Be
sure to face the end with the 2 hose connectors
towards the electrical power source.
IMPORTANT: Do not drag the liner across the
ground as this can cause liner damage and pool
leakage (see drawing 1).
• During the set-up of this pool liner, point the hose
connections or openings in the direction of the
electric power source. The outer edge of the
assembled pool to be within reach of the electrical
connection for the optional filter pump.
2. Remove all the parts from the carton(s) and place them on the ground in the location where they are to
be assembled. Check the parts listing and be sure all the pieces to be assembled are accounted for
(see drawing 2).
IMPORTANT: Do not start assembly if any pieces are missing. For replacement pieces call the
Consumer Service telephone number in your area.
After all pieces are accounted for move the pieces away from the liner for of installation.
NOTE: Sprinkle some talcum powder over the horizontal beams before sliding them into the
pool liner sleeve. This will make removal of the beams from the liner easier during the
disassembly of the pool.
3. Starting with one side, slide the "A" beams first into
the sleeve openings located in each corner.
Continue with "B" beam snapping into the "A" beam,
and another "C" beam snapping into the "B" beam
(see drawing 3).
Start the "D-F" combination for pool's short sides by
inserting the "D" beam first into the opening.
Make sure all the beam holes are aligned with the
white liner sleeve holes.
SAVE THESE INSTRUCTIONS
® filter pump. The pump has its
5 - 6' (1.5 - 2.0m)
LINER
5 - 6'
(1.5 - 2.0m)
ELECTRICAL SOURCE
CORNER
JOINT
(A) (B)
(B)
(F)
LINER
(D)
(B)
(B) (A)
(C)
CORNER
JOINT
(B)
(B)
(C)
115
English
A
1
5 - 6'
(1.5 - 2.0m)
2
CORNER
JOINT
(C)
(D)
(F)
CORNER
JOINT
3
(A)
