3.4 Wiring to USB power supply
MAIN CONNECTORS
REAR
CAMERA
FRONT
CAMERA
USB-A
USB-C
Use provided USB cable, to power device from USB-A or USB-C power
socket. (!) Use only 2,5A / 12,5W power source for optimal performance.
Lower power source may cause malfunctions.
3.5 Cameras installation
Install the front and rear cameras on the motorcycle's head and tail using
the provided pre-cut adhesive or screws.
Choose a position free from obstacles that could block the view and ensure
the lenses are well-protected.
Camera adjustment
1. Loose the screw&nut at base of camera
2. Rotate CW/CCW and UP/DOWN, to get the correct
view angle
3. Tighten the screw&nut at base of camera

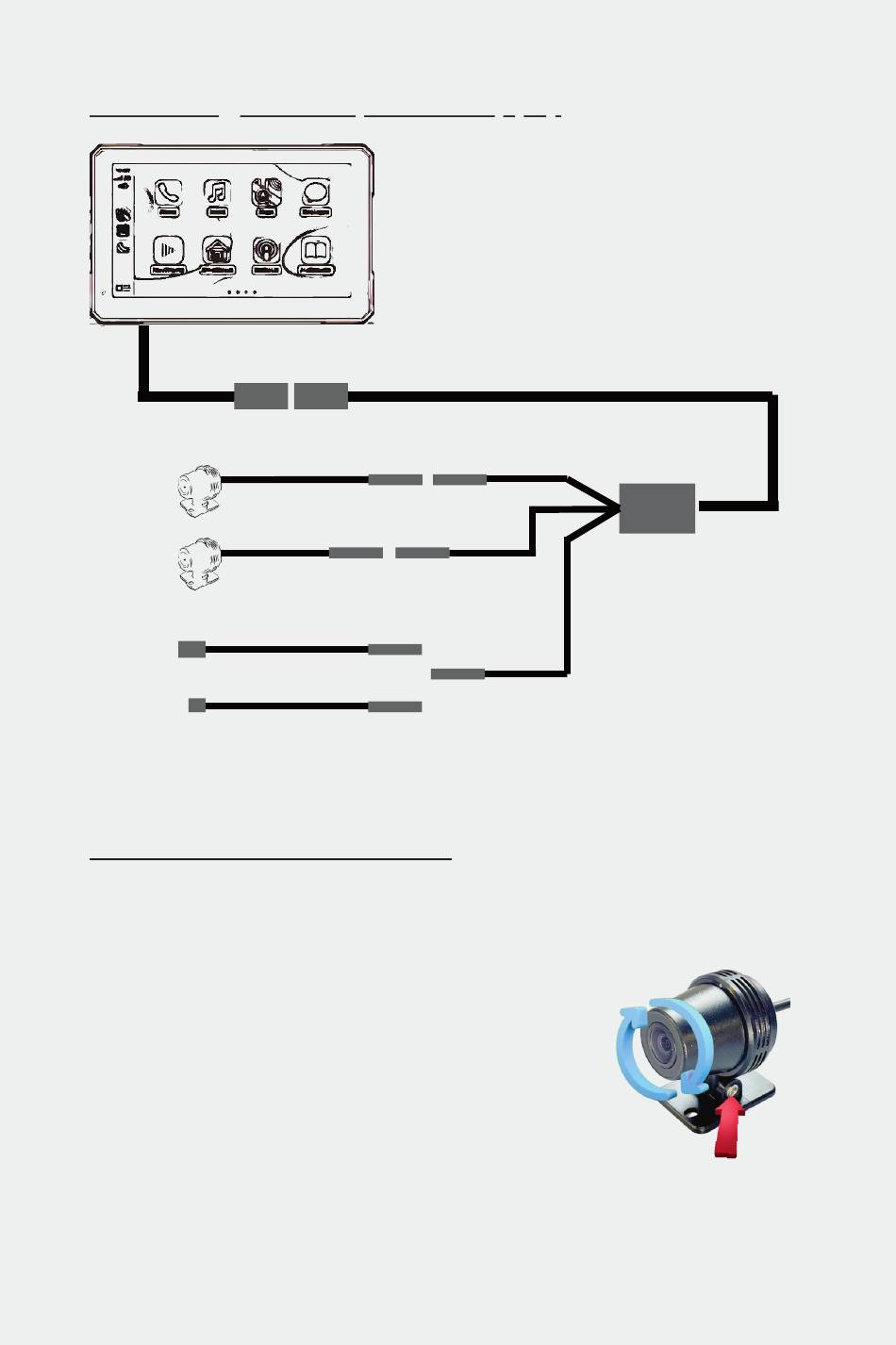

MAIN CABLE
DVR-R
DVR-F
POWER
CABLE
