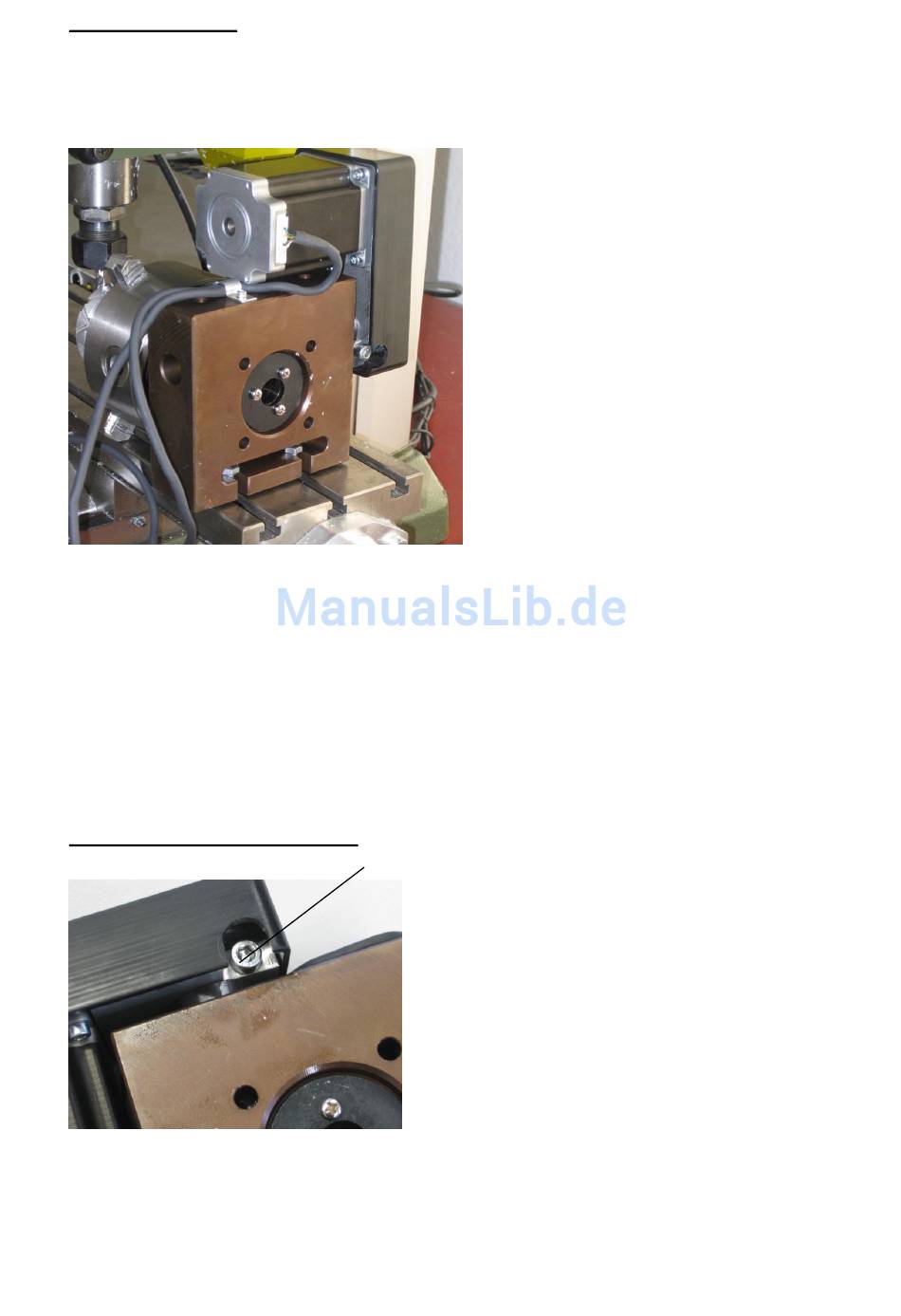

Vertical fastening
Occurs, as shown in the photo, using hexagon head screws (short version).
Fig.10
Here again, insert the square nuts into the T-slots of the support table. Then tighten. The
photo shows the completely vertically assembled dividing head:
Lastly, the suitable clamping device can be screwed on. Please, use only the PROXXON
lathe chuck or the PROXXON face plate:
These are designed for use in combination with the UT 400 CNC.
Swivelling the motor-gear unit
Fig. 11
1
If required by the processing task, the clamping on
the compound table, or the work piece size, the
motor-gear unit can be easily swivelled into the
required position. The procedure is as follows:
1.
See Fig. 11: Release the Allen screw
Pos.1 shown here.
2.
Swivel the motor-gear unit
3.
Retighten screw Pos.
4.
Figures 12 and 13 show the dividing headwith
two different motor-gear unit positions.
