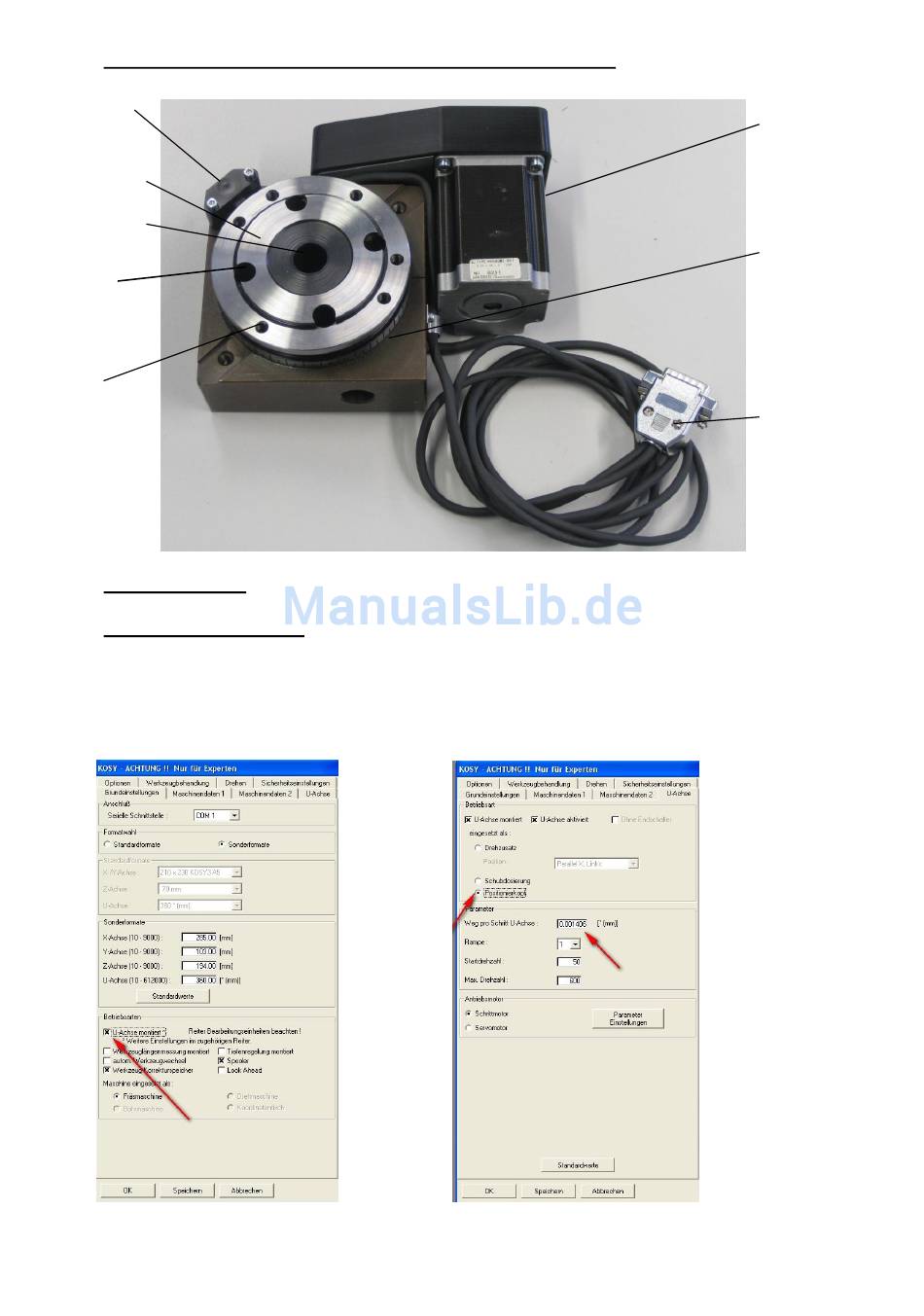

Fig. 1: The components of the dividing head UT 400 CNC
Light barrier
Feed receiver
Centre passage
Holes for
fastening
screws at
horizontal
clamping
Tapped
holes for
fastening the
clamping
devices
Commissioning
Installing the software
Caution: You will need to make some changes to important parameters in the nccad
program. To do so, open the application, click on the menu item "Parameter" and then
select the window for editing the machine parameters. Next, select the required tabs and
make the settings marked by the arrows; see Fig. 2 (nccad 7.5) and Fig. 3 (nccad 8.0):
Fig. 2
Swivel-mounted
motor -
gear unit
Base body
Connection cable with
15-pin Sub-D plug
