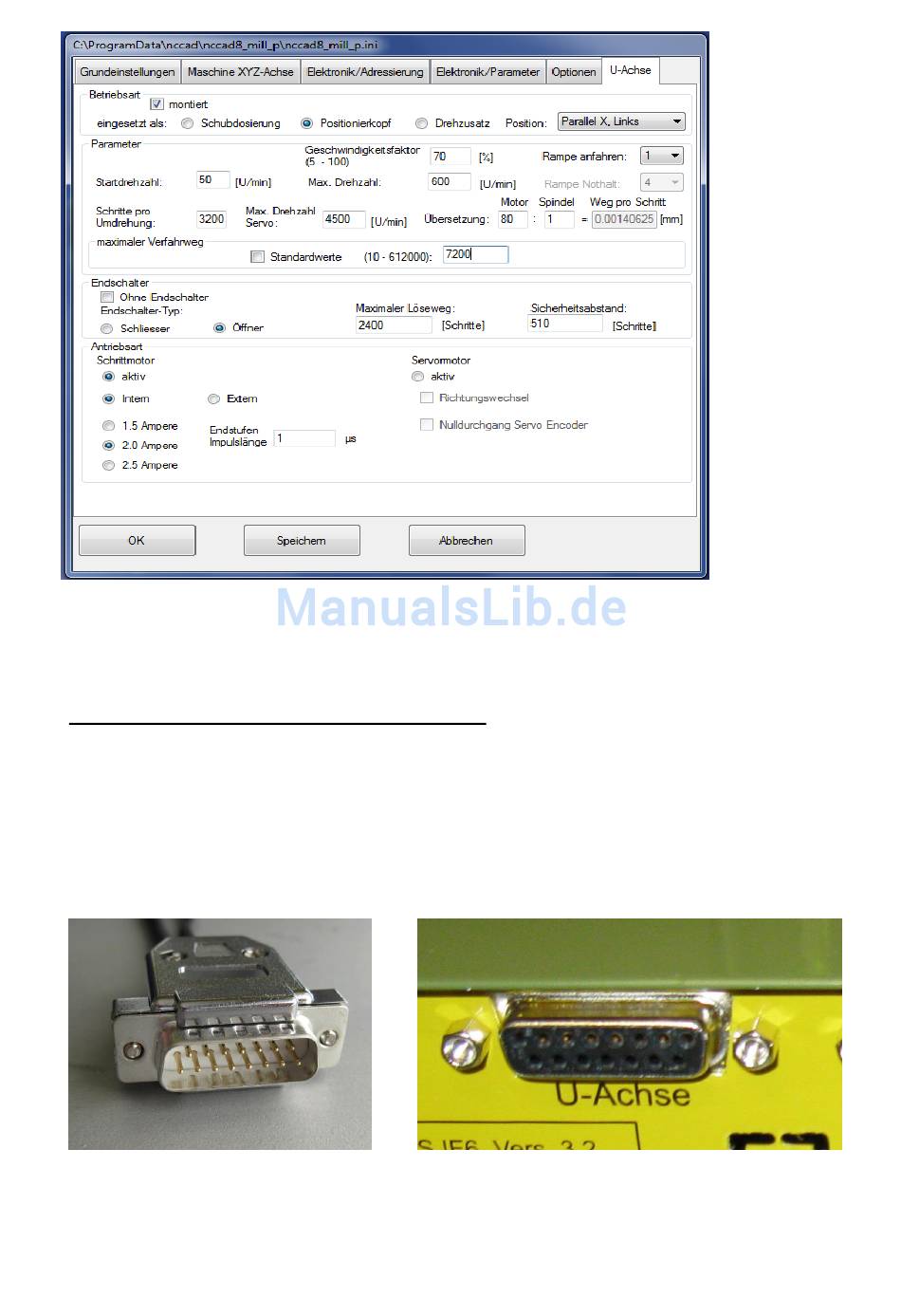

Fig. 3
Connecting the dividing head to the control
The plug of the dividing head must be inserted into the provided socket at the rear of the
control. Figures 4 and 5 show the plug (top) and the socket labelled "u-Axis".
For safety reasons, please screw the slotted screws of the plug into the designated threads
at the control and tighten carefully. This prevents the plug from falling out on its own or from
being pulled out accidentally.
Fig.4
Fig. 5
