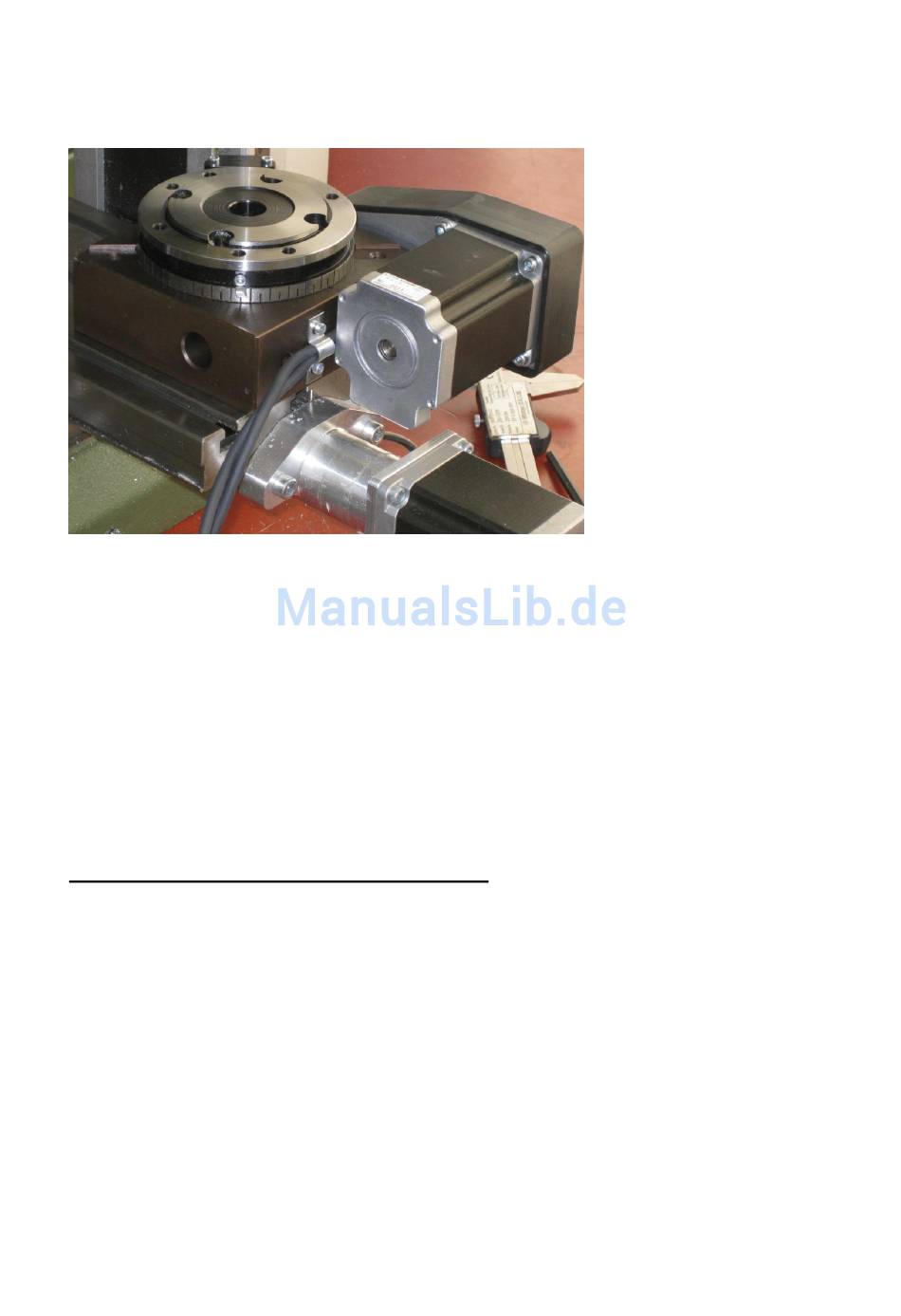

Fig. 9 shows the completely assembled dividing head:
Fig.9
1. Start MCS controller, your computer and nccad
2. In the main menue click "Machine", then "Open CNC control " ( nccad 8.0) or
"machine", then the "milling machine" button ( nccad 7.5).
3. The "Manual control" window appears. By pressing the + and - keys on the computer
keyboard the chuck can be rotated into the required position. Other possibility : With
G00 U (number of degrees) and " OK", moves with high speed into the appropriate
position. For example G00 U30 causes a counterclockwise rotation of 30 °
Manually controlled turning of feed receiver
1. Start the software
2. In the menu, click "Machine"
3. Click "Milling machine"
4. The window for manual control appears. By pressing the - and + keys on the
computer keyboard, the feed receiver can now be turned in the required direction.
