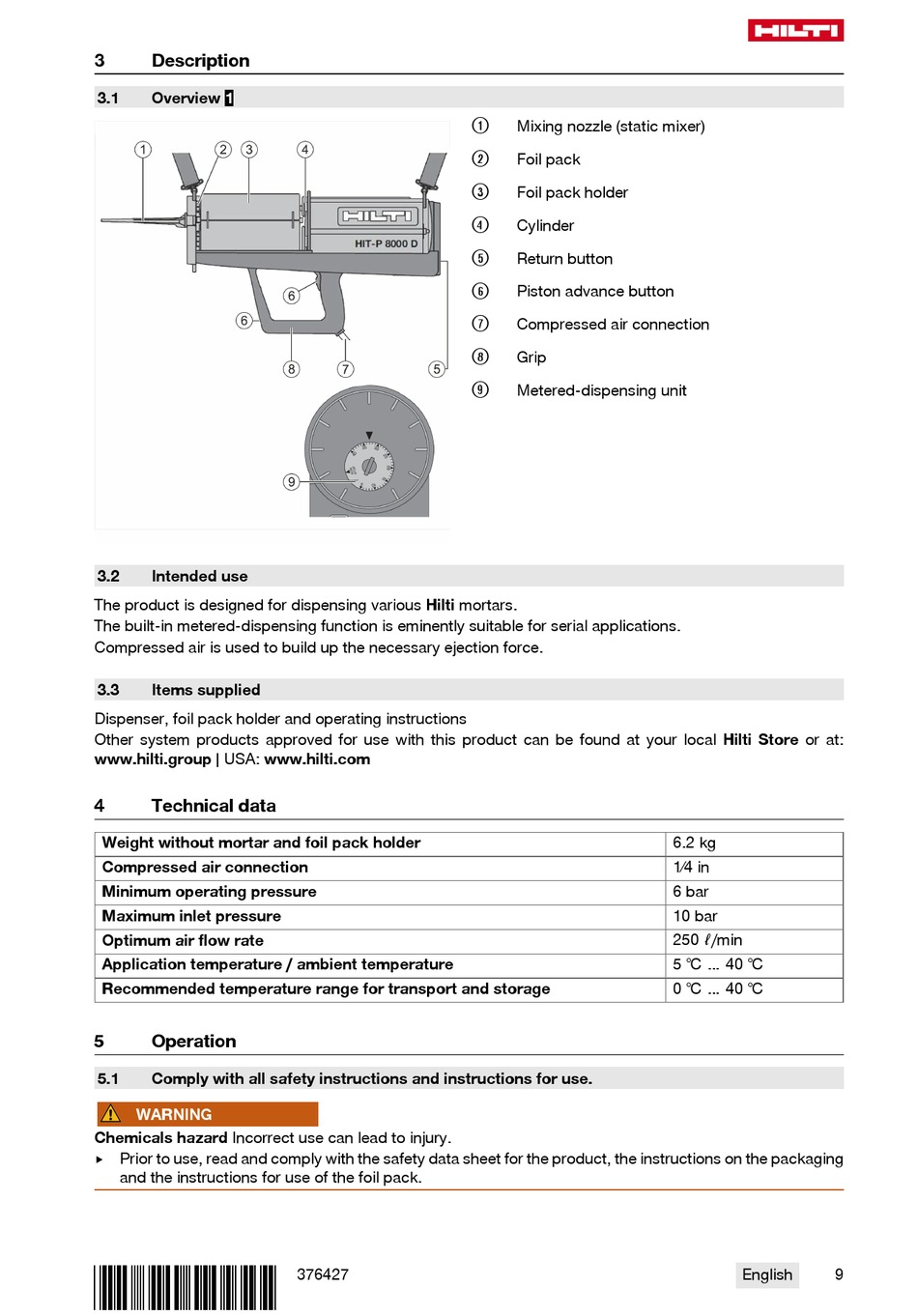

3 Description
3.1 Overview 1
3.2 Intended use
The product is designed for dispensing various Hilti mortars.
The built-in metered-dispensing function is eminently suitable for serial applications.
Compressed air is used to build up the necessary ejection force.
3.3 Items supplied
Dispenser, foil pack holder and operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group | USA: www.hilti.com
4 Technical data
Weight without mortar and foil pack holder
Compressed air connection
Minimum operating pressure
Maximum inlet pressure
Optimum air flow rate
Application temperature / ambient temperature
Recommended temperature range for transport and storage
5 Operation
5.1 Comply with all safety instructions and instructions for use.
WARNING
Chemicals hazard Incorrect use can lead to injury.
▶ Prior to use, read and comply with the safety data sheet for the product, the instructions on the packaging
and the instructions for use of the foil pack.
*376427*
376427
Mixing nozzle (static mixer)
@
Foil pack
;
Foil pack holder
=
Cylinder
%
Return button
&
Piston advance button
(
Compressed air connection
)
Grip
+
Metered-dispensing unit
§
6.2 kg
1⁄4 in
6 bar
10 bar
250 ℓ/min
5 ℃ ... 40 ℃
0 ℃ ... 40 ℃
English 9
