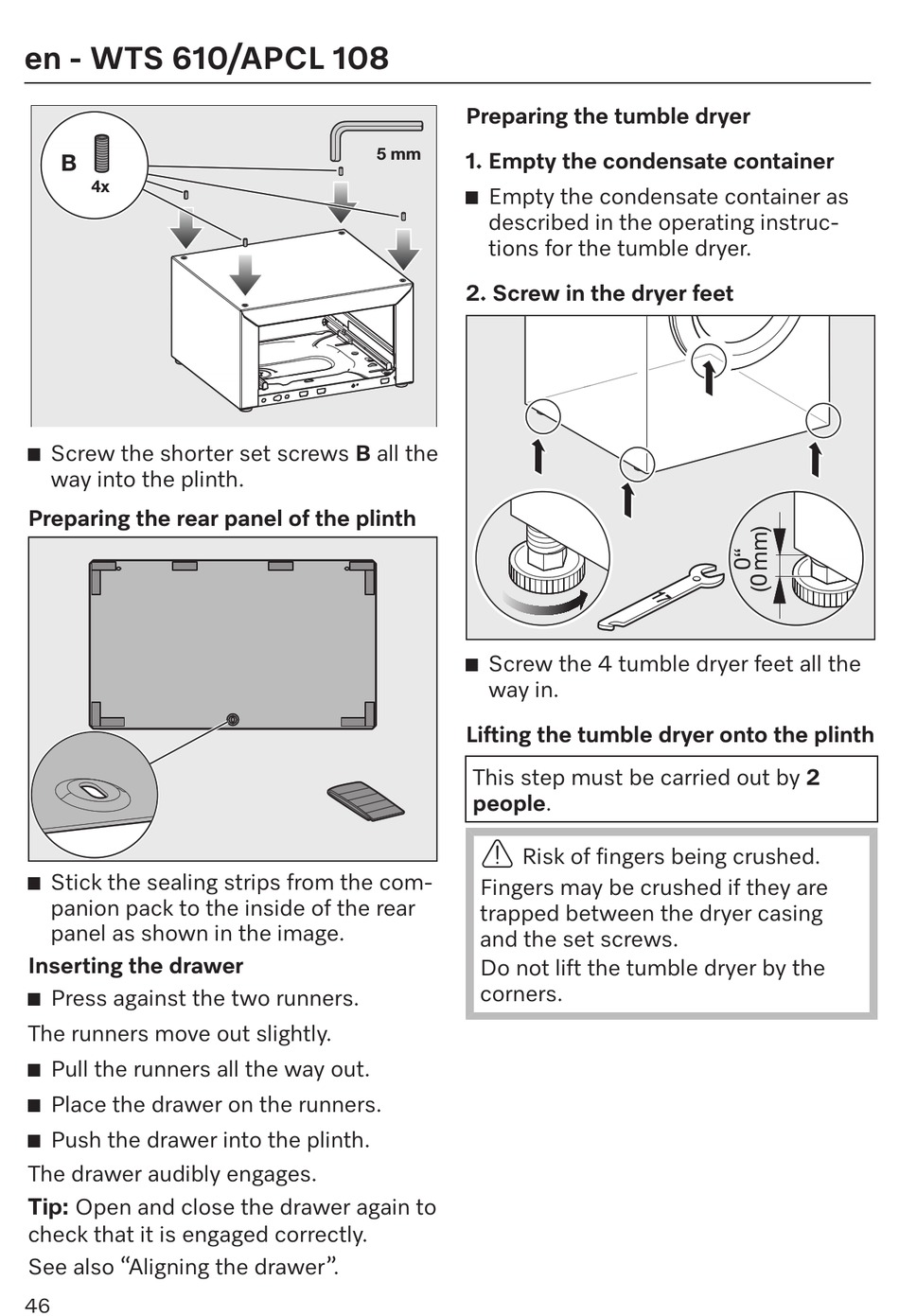

en - WTS 610/APCL 108
B
4x
 Screw the shorter set screws B all the
way into the plinth.
Preparing the rear panel of the plinth
 Stick the sealing strips from the com-
panion pack to the inside of the rear
panel as shown in the image.
Inserting the drawer
 Press against the two runners.
The runners move out slightly.
 Pull the runners all the way out.
 Place the drawer on the runners.
 Push the drawer into the plinth.
The drawer audibly engages.
Tip: Open and close the drawer again to
check that it is engaged correctly.
See also "Aligning the drawer".
46
Preparing the tumble dryer
5 mm
1. Empty the condensate container
 Empty the condensate container as
described in the operating instruc-
tions for the tumble dryer.
2. Screw in the dryer feet
 Screw the 4 tumble dryer feet all the
way in.
Lifting the tumble dryer onto the plinth
This step must be carried out by 2
people.

Risk of fingers being crushed.
Fingers may be crushed if they are
trapped between the dryer casing
and the set screws.
Do not lift the tumble dryer by the
corners.
