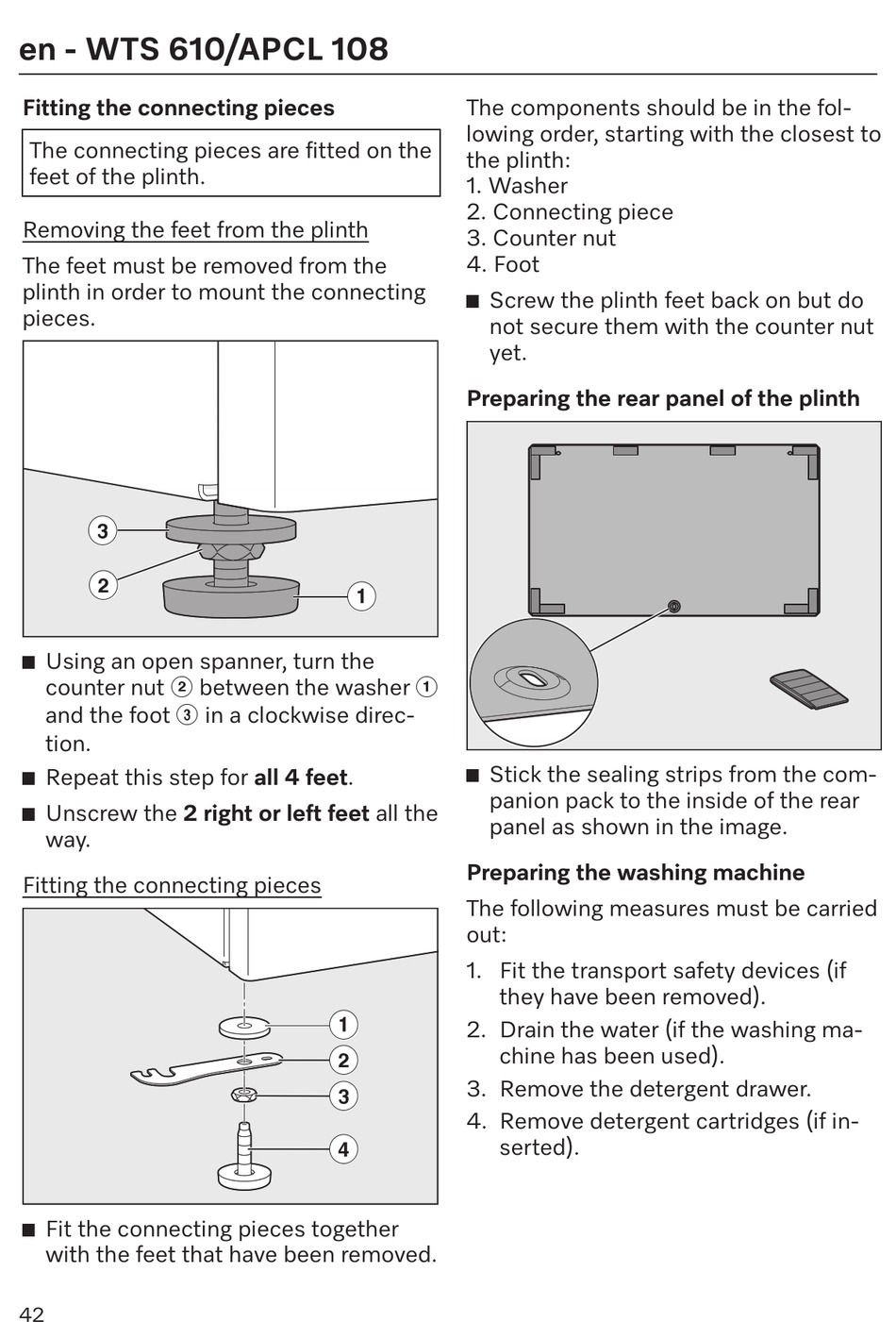

en - WTS 610/APCL 108
Fitting the connecting pieces
The connecting pieces are fitted on the
feet of the plinth.
Removing the feet from the plinth
The feet must be removed from the
plinth in order to mount the connecting
pieces.


 Using an open spanner, turn the
counter nut  between the washer 
and the foot  in a clockwise direc-
tion.
 Repeat this step for all 4 feet.
 Unscrew the 2 right or left feet all the
way.
Fitting the connecting pieces
 Fit the connecting pieces together
with the feet that have been removed.
42
The components should be in the fol-
lowing order, starting with the closest to
the plinth:
1. Washer
2. Connecting piece
3. Counter nut
4. Foot
 Screw the plinth feet back on but do
not secure them with the counter nut
yet.
Preparing the rear panel of the plinth

 Stick the sealing strips from the com-
panion pack to the inside of the rear
panel as shown in the image.
Preparing the washing machine
The following measures must be carried
out:
1. Fit the transport safety devices (if


2. Drain the water (if the washing ma-

3. Remove the detergent drawer.

4. Remove detergent cartridges (if in-
they have been removed).
chine has been used).
serted).
