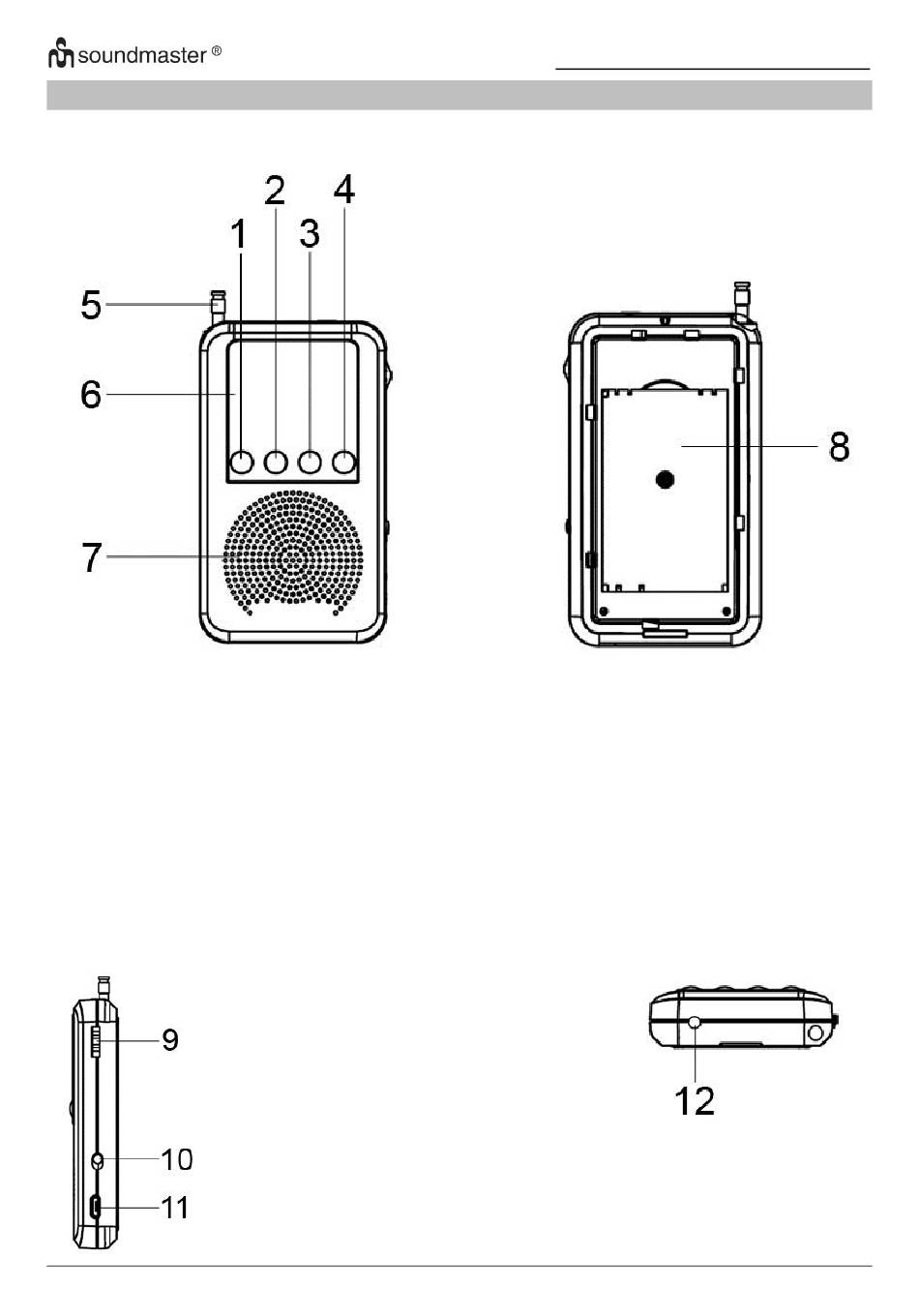

FRONTVIEW
1 PRESET button
2 VOLUME - button
3 VOLUME + button
4 POWER / MODE button
5 Telescopic Antenna
6 LCD Display
7 Speaker
VIEW RIGHT SIDE
9
10 Key Lock
11 Micro USB Socket
All manuals and user guides at all-guides.com
LOCATION OF CONTROLS
Scan Scroll Wheel
DAB170 / English Instruction Manual
REARVIEW
8 Battery Compartment
12
1
TOPVIEW
Headphone Jack
