1.2 How to attach the WiRCU-Box to the stove
EN

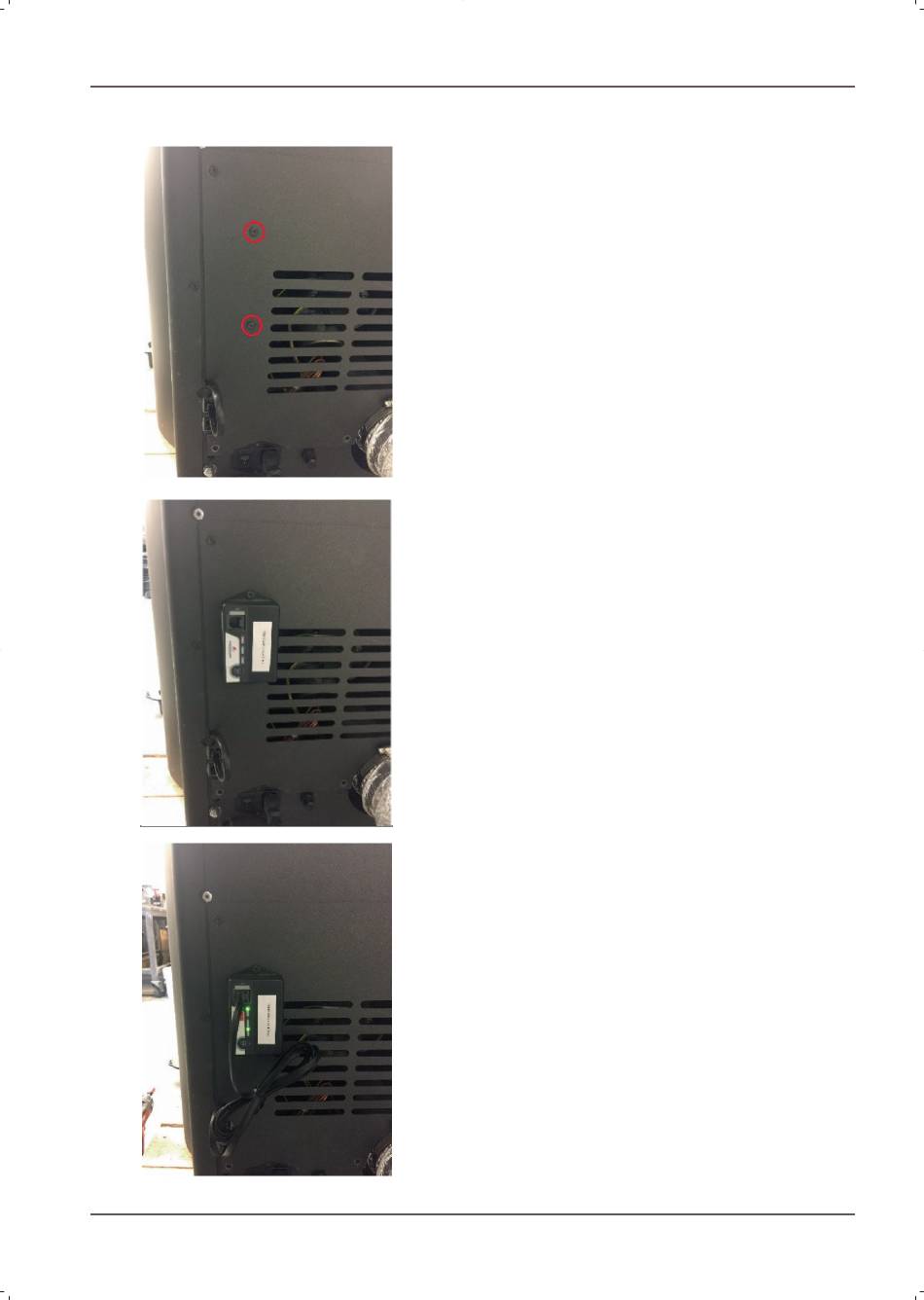

1) On the right-hand side of the rear panel of the stove
there are 2 boreholes with hexagon socket M4 x 8
screws prepared for the mounting of the WiRCU-Box.
These screws must be unscrewed with a 2 mm Allen
key before mounting.
2) Now mount the WiRCU-Box on the rear panel in the
position illustrated.
IMPORTANT: The connection for the data cable
should be located on the top of the WiRCU-Box. In
this position the MAC address and the PIN number on
the visible side of the WiRCU-Box can always be seen.
3) Now connect the data cable to the WiRCU-Box. Con-
nect the 2nd end to the free 6-pin socket below the
WiRCU-Box. This creates the connection between the
controls of your stove and the WiRCU-Box.
As soon as the heating appliance is supplied with
power, the "CONT" LED on the WiRCU-Box will be
constantly lit and the "WI-FI" LED will flash as follows:
0.5 sec. ON / 0.5 sec. OFF.
