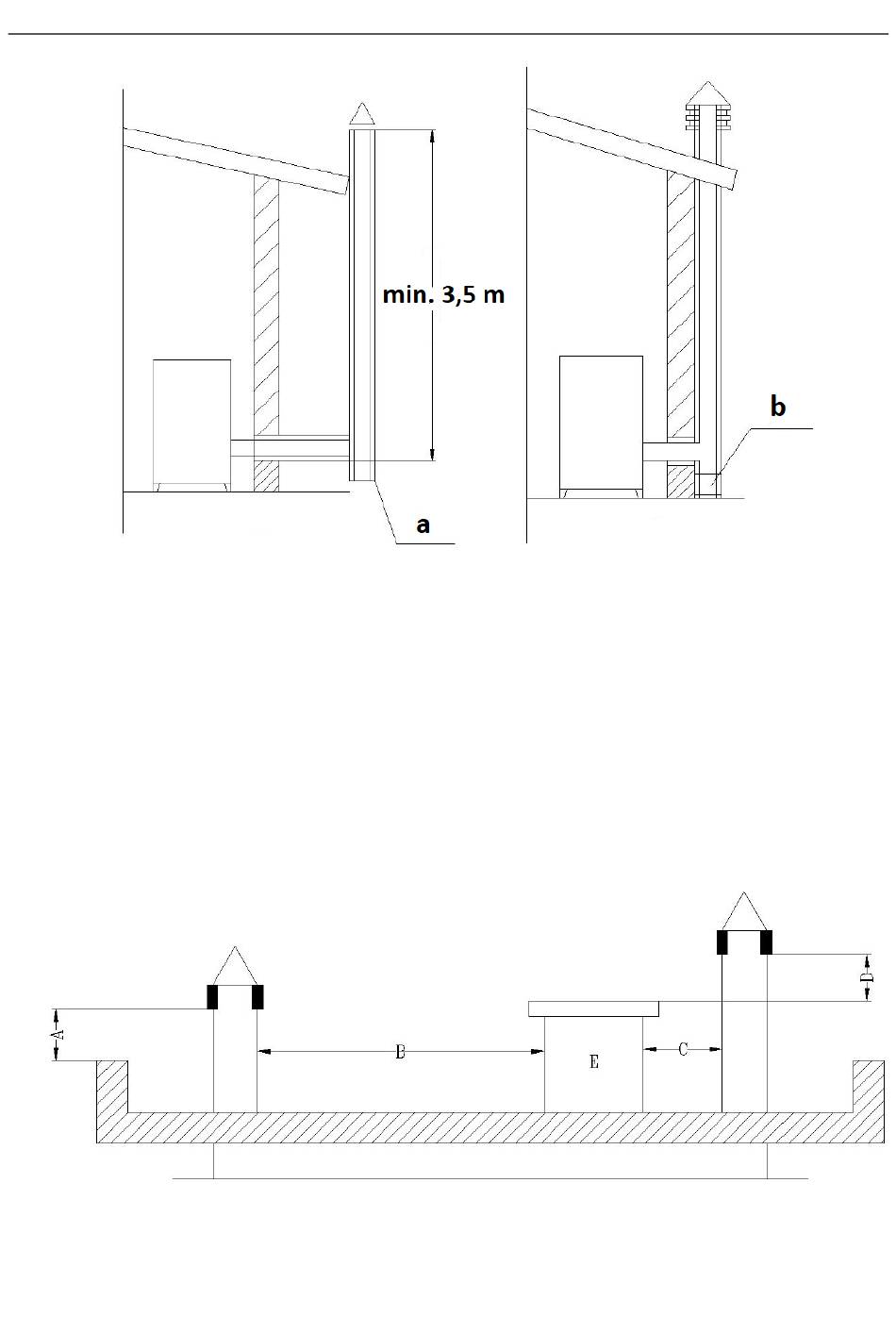

The chimney installation should be airtight, vertical, without any narrowings, made
of a smoke-impermeable material, thermally insulated (to avoid condensation or
cooling the smoke) and resistant to normal mechanical stress coming with time -
recommended AISI 304 chimney steel with a round section. The installation should
be separated from flammable or combustible materials by an air gap or adequately
insulated with materials - see standard EN1443. The chimney opening must be in
the same room as the unit or at most in an adjacent room. Underneath must be a
soot and condensate collection chamber - accessible through a waterproof, metal
hatch.
• Flat roof
A - 0.5 m
B - distance >2 m
C - distance <2 m
D - 0.5 m
E - tech volume.
