14. Spiral blades
15. Ash container
16. ON/OFF switch (on the back of the housing next to the power cord socket -
not visible in the picture)

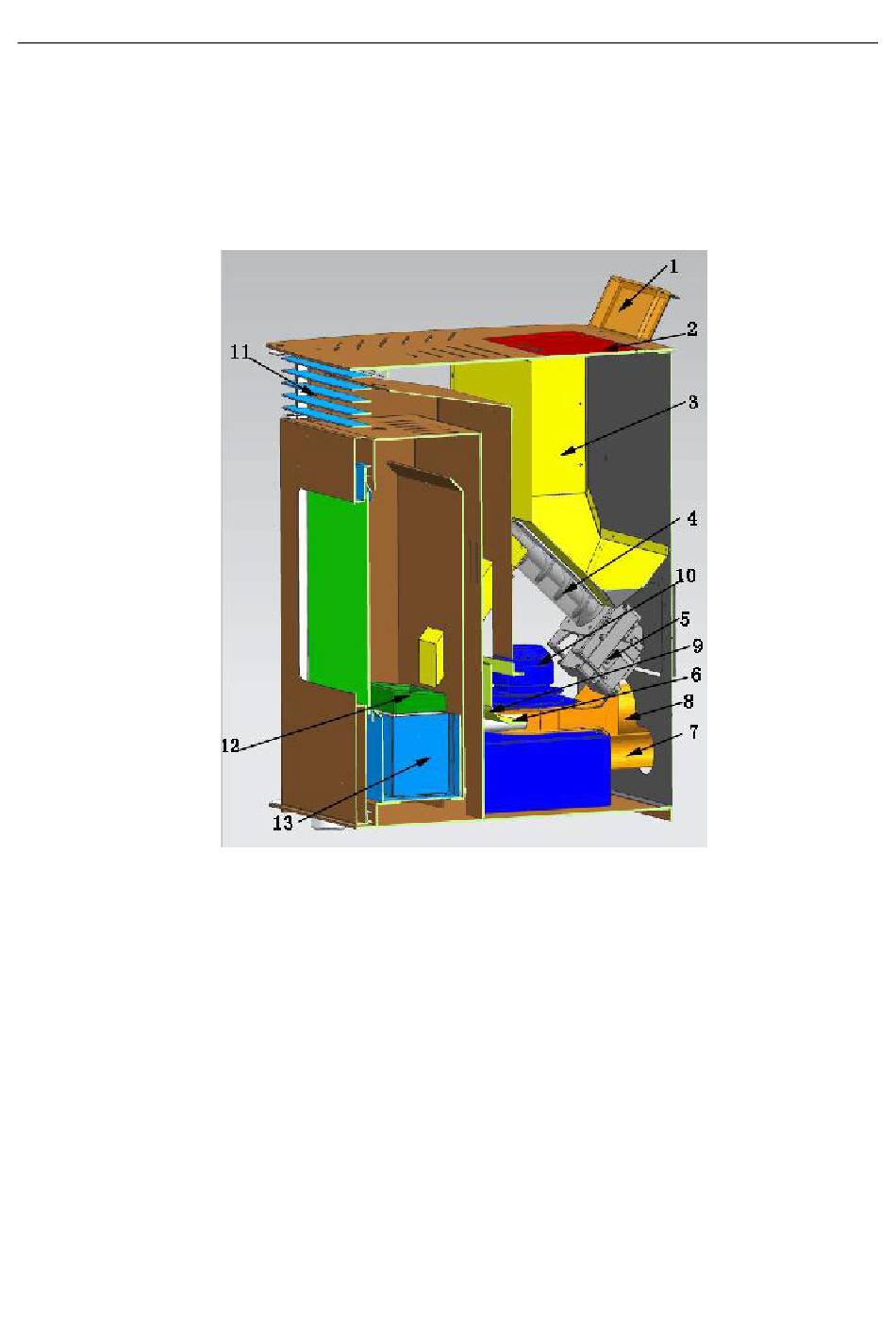

MSW-PLT-6:
1. Control panel
2. Hopper lid
3. Hopper
4. Worm
5. Worm motor
6. Igniter
7. Air inlet pipe
8. Exhaust pipe (to the chimney)
9. Blower fan
10. Exhaust fan
11. Heat outlet
12. Hearth
13. Ash container
14. ON/OFF switch (on the back of the housing next to the power cord socket -
not visible in the picture)
