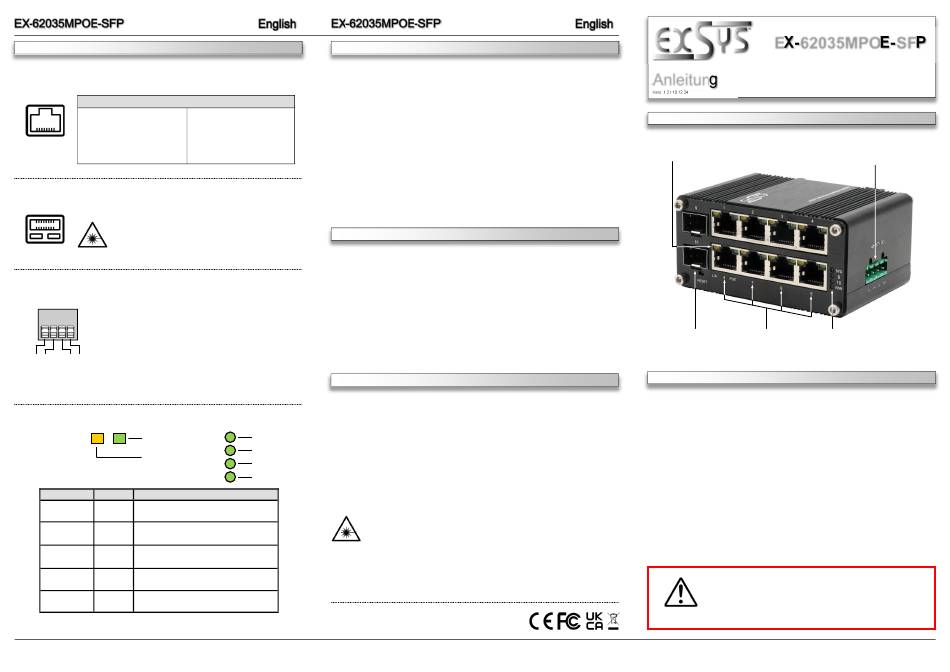

Exsys EX-62035MPOE-SFP Anleitung

CONNECTORS & STATUS LED
RJ45 Port:
Power over Ethernet IEEE802.3af/at (PoE+), Mode B
RJ45 Port
Pin Signal PoE
1 BI_DA+
2 BI_DA-
87654321
3 BI_DB+
4 BI_DC+ VCC+
SFP slot:
ATTENTION!
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not
stare directly into the laser beam.
48V to 57V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
V- V+ V- V+
Redundant power supply possible to reduce operational failure.
Both power supplies must use the same voltage!
Status LEDs:
PoE LED
Link / Activity LED
LED Name Color LED Function
On: Linked
Link (ACT) Yellow
Flashing: Data Transmission
On: PoE is activated
PoE Green Flashing: Power Device (PD) detected
Off: No (PD) device connected
On: Fiber linked
FX 9+10 Green
Flashing: Data Transmission
Flashing: System is running
SYS Green
Off: System failure / Switch off
Steady on: Switch is powered
PWR Green
Off: No power supply connected
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Install the EX-62035MPOE-SFP on a mounting rail using the DIN-Rail kit.
2. If required, insert optional SFP transceivers into the SFP slots.
Pin Signal PoE 3. Connect your network devices to the switch using a network cable.
5 BI_DC- VCC+
4. If required, connect the fiber optic cable for the connection to the media converter or switch
to the SFP transceiver(s) used.
6 BI_DB-
CAUTION! Do not look directly into the laser beam of the fiber optic connector!
7 BI_DD+ VCC-
5. Connect the power connector of the optionally available power supply to the terminal block
8 BI_DD- VCC-
and switch on the power supply.
6. After the power is turned on, the PWR indicator lights up. If the indicator does not light up,
check that it is connected to the power supply correctly.
7. When all cables are connected correctly, the indicators light up according to the port status
of the LEDs (page 5).
MANAGEMENT
Make sure that the IP addresses of the switch and the PC are in the same network segment to
access the switch via the web. The default IP address of the switch is 192.168.1.6.
Open your browser, type the switch's IP address 192.168.1.6 in the address bar and press
'Enter'.
In the user login pop-up window, enter the following username and password.
After confirming your login, you will be taken to the main page of the switch, where you can
change the settings to suit your needs.
NOTICE & CLEANING
Procedure for STP Cable Grounding
When using shielded cables to connect two Ethernet devices, a ground loop may occur if the
shielding on the cables generates an additional grounding connection path. This can cause
ground current to flow through to the Ethernet ports and damage the devices. If it is necessary
SYS LED
to use shielded cables, we recommend using a metallic RJ45 connector on one end and a non-
metallic connector on the other end. Alternatively, a patch panel can be used in between the
FX 9 LED
two devices to prevent ground loops from occurring.
FX 10 LED
Switch off the power supply before disconnecting modules or wires.
PWR LED
The propper power supply voltage is indicated on the product label. Check the voltage of your
power source to ensure you are using the correct voltage. DO NOT use a voltage higher than
what is specified on the product.
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not stare directly into the
laser beam.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Username: admin
Password: admin
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17
Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
EX-62035MPOE-SFP
Anleitung Anleitung
Vers. 1.2 / 10.12.24
AUFBAU
Status LEDs
2x SFP Slot 8x RJ45 Status LEDs
100/1000 Mbit/s Gigabit PoE
BESCHREIBUNG & TECHNISCHE DATEN
Der wohl kleinste industrietaugliche 10-Port Gigabit Web-Managed PoE-Switch EX-62035MPoE
-SFP bietet trotz seiner geringen Aussenmaße volle Gigabit Leistung an allen Ports. An den
acht RJ45-Ports stehen jeweils bis zu 30W für den Anschluss von PoE Power Devices (PD) wie
z.B. IP-Kameras oder IP-Telefone zur Verfügung. Die beiden zusätzlichen SFP-Slots
ermöglichen die Einbindung in ein Glasfaser-Netzwerk. Passende SFP-Transceiver sind als
Zubehör erhältlich. Dank dem robusten Metallgehäuse
Betriebstemperaturbereich von -40°C bis 80°C ist er für eine Vielzahl von Anwendungen auch in
rauen Umgebungen geeignet. Die Stromversorgung erfolgt über den Terminal Block (48-
57VDC) und kann zur Verminderungen von Betriebsausfällen auch redundant erfolgen.
Kompatibilität: Gigabit Ethernet 10/100/1000Base-T
PoE: IEEE 802.3af/at (PoE+), Mode/Alternative B
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 8x RJ45-Buchse, 2x SFP-Slot, 1x Terminal Block 48-57VDC
Lieferumfang: EX-62035MPoE-SFP, DIN-Rail Kit, Wandmontagehalterung,
Anleitung
ACHTUNG!
Bei geerdetem Minuspol
unbedingt den Technischen Hinweis auf Seite 3
beachten.
1
48-57V T-Block für optional
erhältliches Netzteil
und dem erweiterten
der Stromversorgung
