1. Remove all parts from the packaging for assembly.
2. Place the main body on the fan frame and tighten the lock nut at the bottom of
the frame.
Note: When placing the main body on the frame, make sure that the notch on the
frame is locked with the hole on the fan body. See (Fig. A.)
3. Align the screw hole on the rod with the screw hole on the fan body, insert the
motor and fix it with the screw.

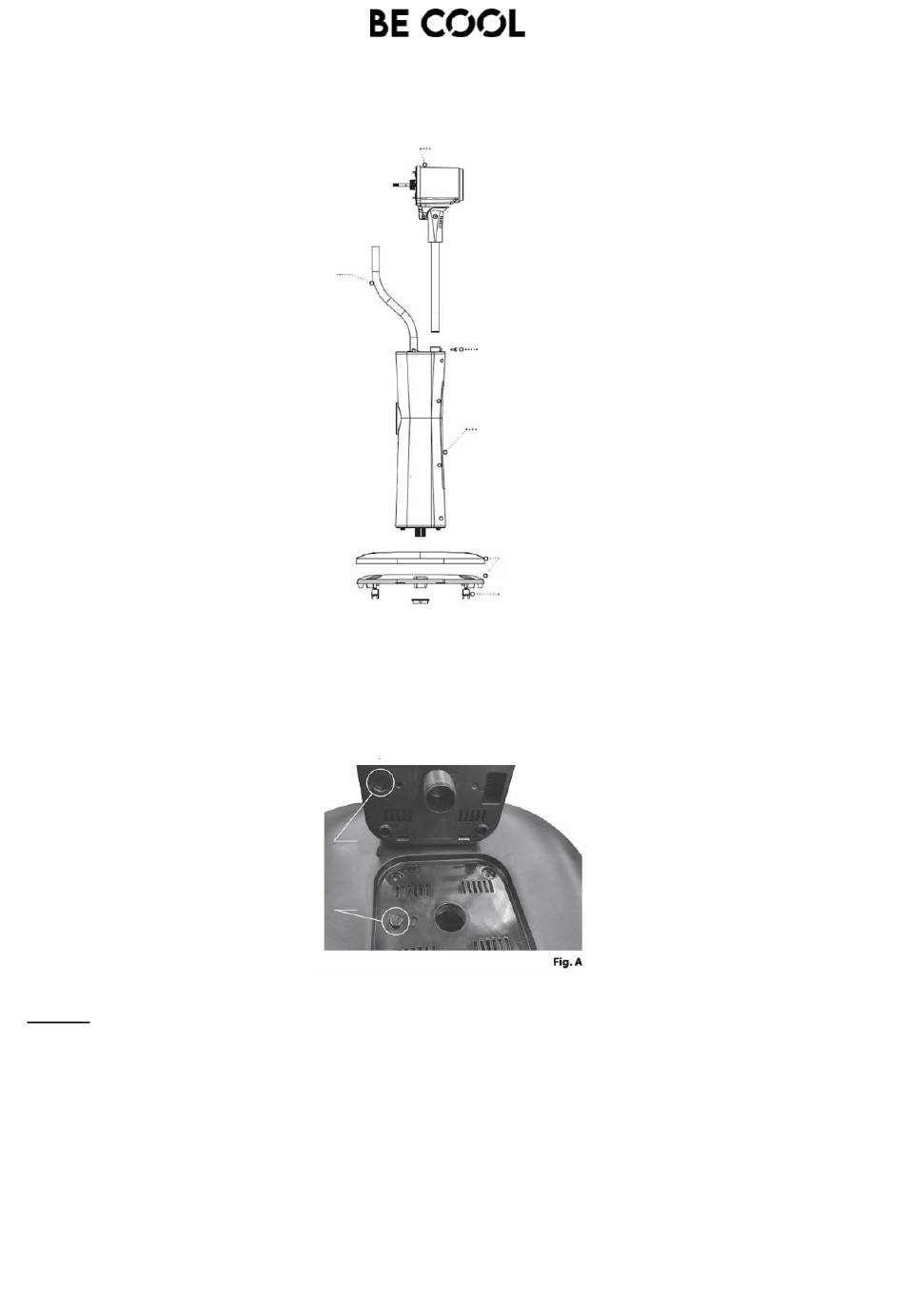

Assembly
Fog tube
Motor
Screws
Main body
Stand
Rollers
