DMX mode:

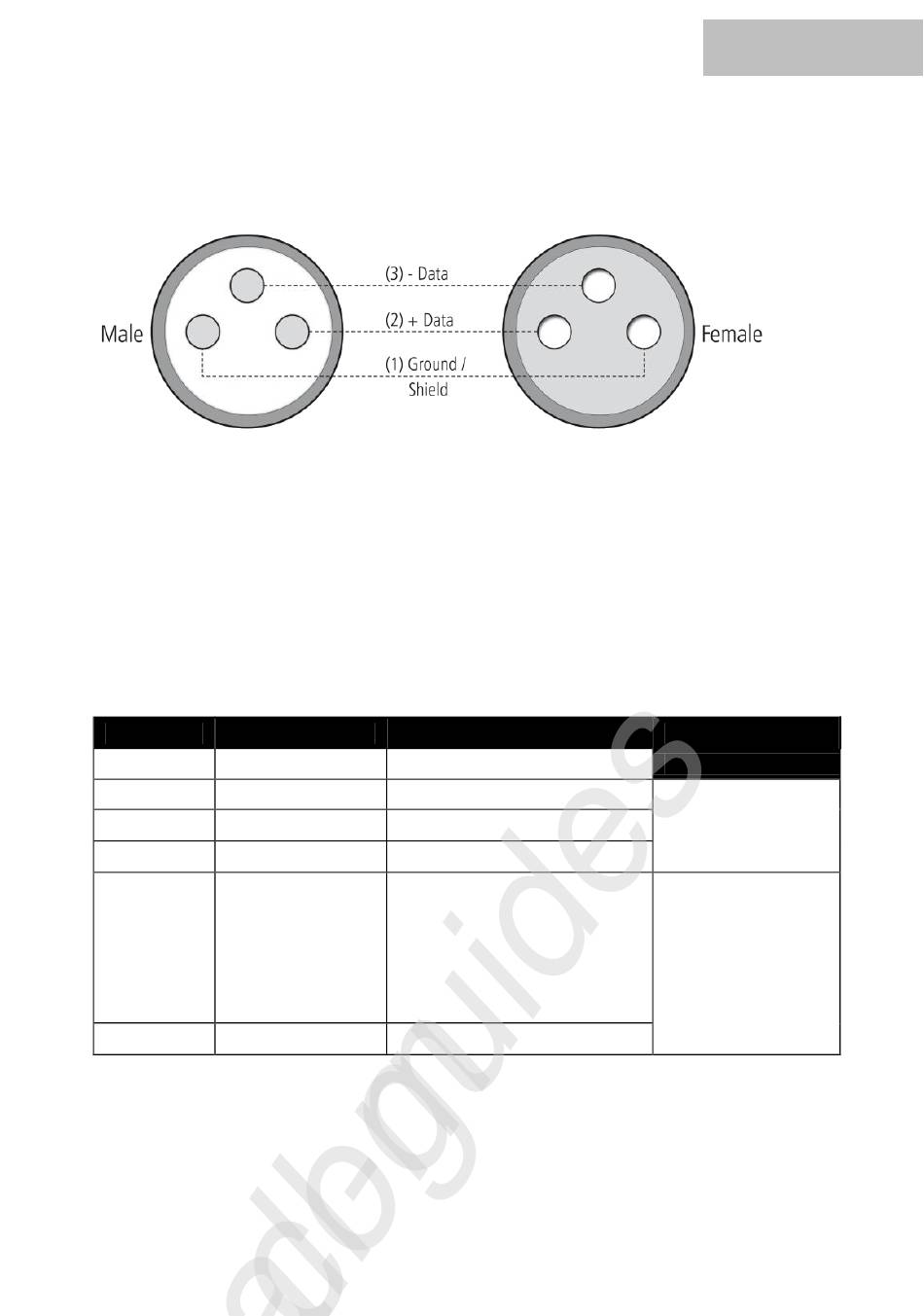

Configuration of the DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Connect the DMX input of your device to the DMX output of your DMX controller or interface.
Always use a DMX cable with a 110 Ohm resistor for this connection. Address the device
according to your DMX configuration. The following tables show the respective DMX modes of the
individual devices with the corresponding values and functions:
6 Channel Mode:
Channel
1
2
3
4
5
6
Value Function
016-255 Fog
001-255 Red
001-255 Green
001-255 Blue
016-050 Red
051-085 Yellow (Red + Green)
086-120 Green
121-155 Cyan (Green + Blue)
156-190 Blue
191-225 Magenta (Blue + Green)
226-255 White
016-255 Color change
ENGLISH
LEDs
Inner LEDs
Outer LEDs
