CAUTIONS
the motor (RMoTV0184AFZZ).
Individual units of the motor (RMoTV0184AFZZ) are a
l
little different in their performance from one to another,
and the resistors and capacitors included in each unit are
different from those included in another.
It is therefore recommended not to repair the motor if it
gets in trouble. In such case, replace it with the new one.
NOTES ON SCHEMATIC DIAGRAM
To differentiate the units of resistors, such symbol as K is
used: the symbol K means 1000 ohm and the resistor
without any symbol is ohm-type resistor.
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to elec-
trolytic capacitor, the expression " capacitance/with-stand
voltage" is used.
Schematic diagram and Wiring Side of P.W.Board for this
l
model are subject to change for improvement without prior
notice.
All manuals and user guides at all-guides.com
A 6 9 5

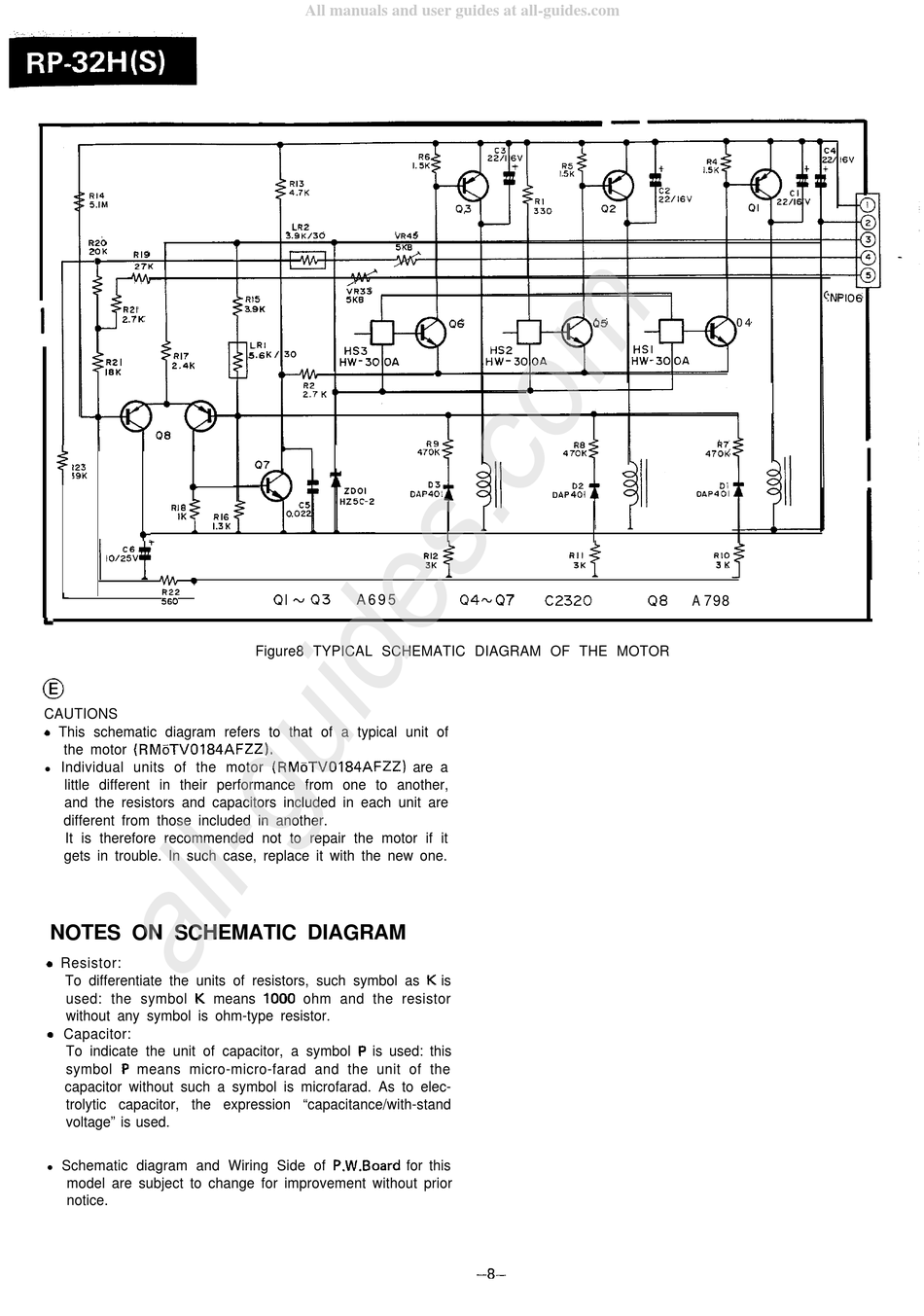

Figure8 TYPICAL SCHEMATIC DIAGRAM OF THE MOTOR
0 4
A 798
