Operation instructions | OTX 51-00 | ORX 14-00 | ORX 14-01| ORX 15-00

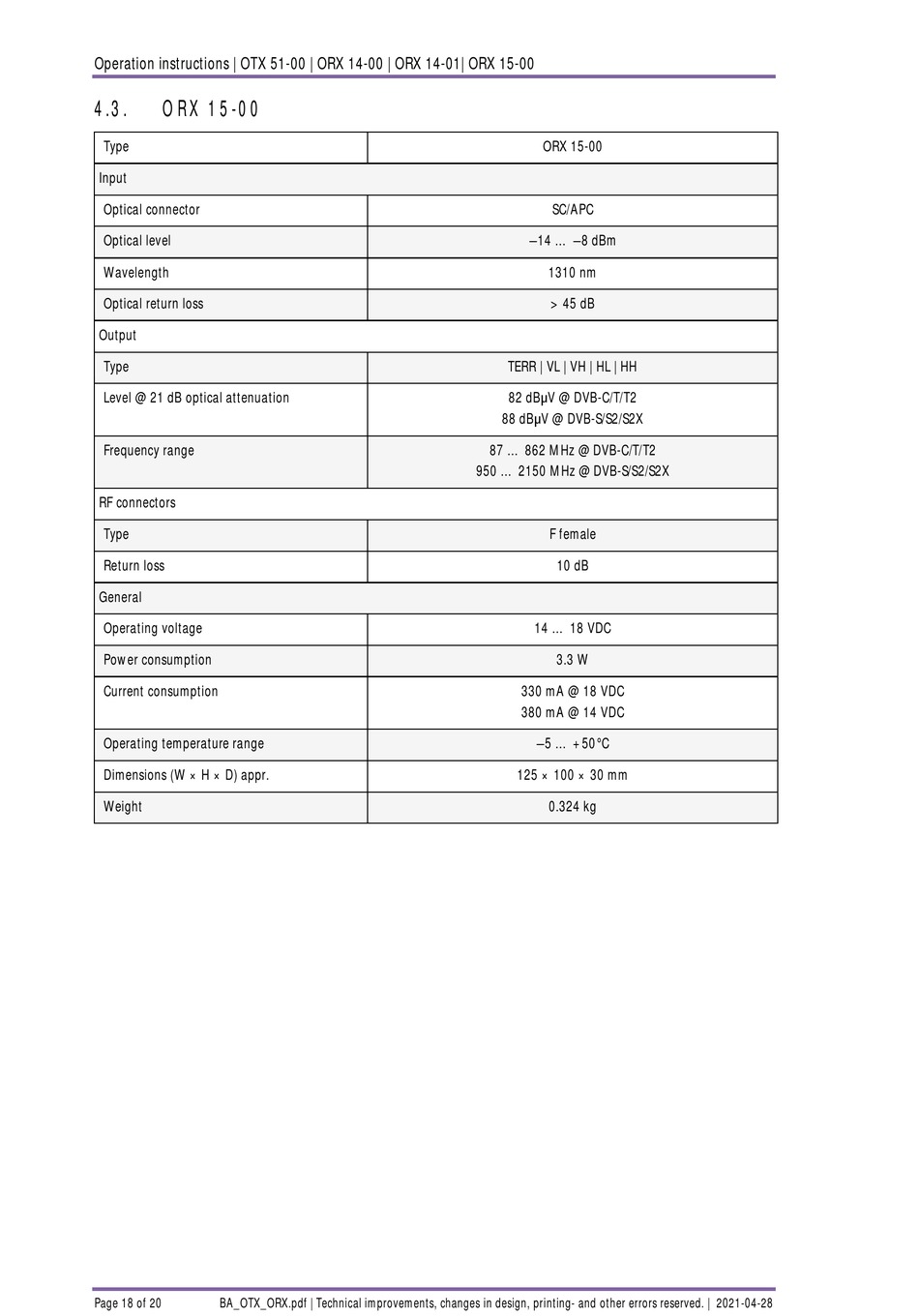

4.3. ORX 15-00
Type
Input
Optical connector
Optical level
Wavelength
Optical return loss
Output
Type
Level @ 21 dB optical attenuation
Frequency range
RF connectors
Type
Return loss
General
Operating voltage
Power consumption
Current consumption
Operating temperature range
Dimensions (W × H × D) appr.
Weight
Page 18 of 20 BA_OTX_ORX.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2021-04-28
ORX 15-00
SC/APC
−14 ... −8 dBm
1310 nm
> 45 dB
TERR | VL | VH | HL | HH
82 dBμV @ DVB-C/T/T2
88 dBμV @ DVB-S/S2/S2X
87 ... 862 MHz @ DVB-C/T/T2
950 ... 2150 MHz @ DVB-S/S2/S2X
F female
10 dB
14 ... 18 VDC
3.3 W
330 mA @ 18 VDC
380 mA @ 14 VDC
−5 ... +50°C
125 × 100 × 30 mm
0.324 kg
